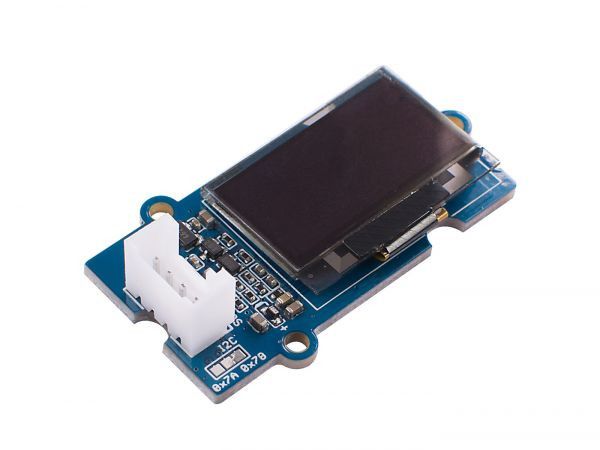

The Grove - OLED Display 0.96" (SSD1315) is a monochrome(white) 128×64 pixels passive display matrix module with Grove I2C Interface. The new 0.96 OLED Display is the upgrade version of the old Grove - OLED Display 0.96". It inherits the old version with high contrast, high brightness, low power consumption, wide viewing angle, and many other advantages.

Thanks to the new SSD1315 chip, it can work with 3.3V, so we removed the expensive DC-DC boost circuit. And with the onboard level shift circuit, the new Grove - OLED Display 0.96" can work with 3.3V and 5V platforms. That is to say, you can use it easily as an Arduino OLED display, Raspberry Pi OLED display, etc.

As for software compatibility, this Grove-OLED Display supports the U8g2 monochrome displays library written by Olikraus. This library is so convenient and well-compatible that it can support not only this display based on SSD1315 but also displays equipped with SSD1306 or many other chips. So buy one Grove - OLED Display 0.96" (SSD1315) and get quickly started with the U8g2 library, you will find magic in this little screen!

Note! If your board is ATmega328, such as Seeeduino V4.2 and Arduino UNO, you need to change to soft I2C when using the U8G2 library.This is not required if you are using a SAMD development board.

Features

• Clear display of Monochrome: While inheriting the characteristics of high contrast, high brightness and low power consumption, the display effect has been upgraded
• Industrial grade operating temperature: Wide operating temperature range: -40℃ ~ +85 ℃
• High cost-effective: The display adopts an upgraded SSD1315 chip which has stronger performance yet a lower price.
• Grove unified socket: The product ensures "Plug and Play" and could be versatile for various applications.

Application

• Electronic Products
• Medical apparatus and equipment
• Traffic Safety
• Wearable devices

Specifications

Learn and documents

• Wiki - Grove - OLED Display 0.96" (SSD1315)
• Grove - OLED Display 0.96" (SSD1315) v1.0 Schematic File
• OEL Display Module
• U8g2 monochrome displays library
