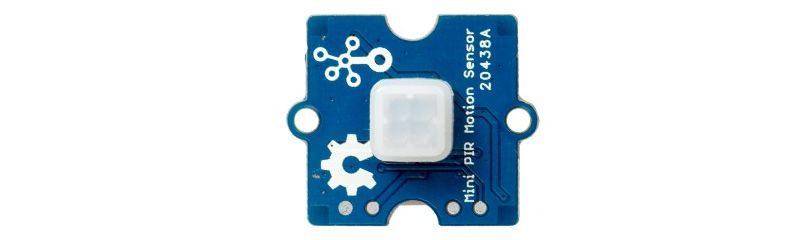

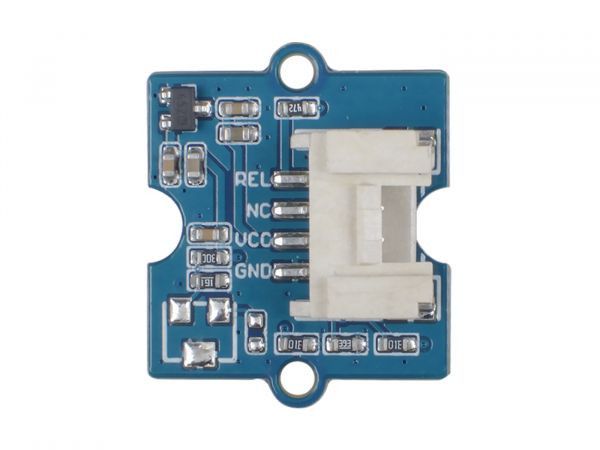

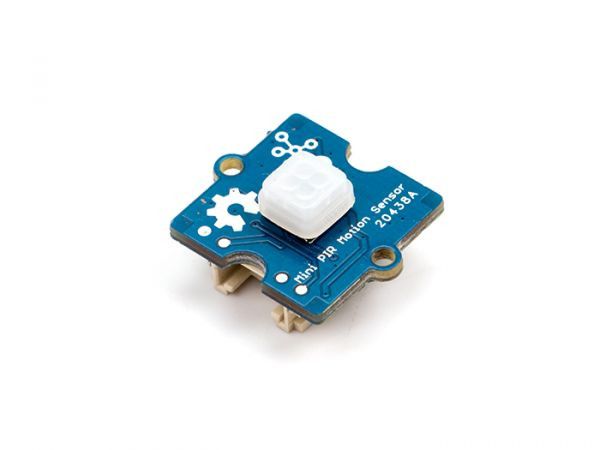

Description
MINI PIR motion sensor is a compact, low power consumption, and cost-effective PIR sensor which is suitable for applications with relatively less detection distance requirements.
Features
- Adjustable sensitivity: a reserved pin out on board to solder a slide rheostat to adjust the sensitivity
- Easy to use: Grove compatible interface and supports both Arduino and Raspberry Pi platforms
- Mini size:20mm x20mm x12mm
What is a PIR Sensor?
A passive infrared sensor is an electronic sensor that measures infrared light radiating from objects in its field of view. They are most often used in PIR-based motion detectors. PIR sensors are commonly used in security alarms and automatic lighting applications.
What does a PIR sensor detect?
PIR sensors are also known as PID or Passive Infrared Detectors. Thus, the PIR sensor can detect infrared radiation that is emitted by particles.
How does PIR Sensor work?
The PIR Sensor has 2 slots, and the slots are made of sensitive material. When the sensor is inactive, then the two slots will sense the same amount of IR. The ambient amount radiates from the outdoors, walls or room, etc.
When a human body or any animal passes by, it intercepts the first slot of the PIR sensor. This causes a positive differential change between the two bisects. But when the body leaves the sensing area, the sensor generates a negative differential change between the two bisects.
Click to explore more about PIR sensors.
Technical details
| Dimensions |
20mm x20mm x12mm |
| Weight |
G.W 8g |
| Battery |
Exclude |
| Sensor chip |
S16-L221D |
| Supply Voltage |
3.3 – 5V |
| Working Current |
12 – 20 μA |
| Sensitivity |
120 – 530 μV |
| Max detecting range |
2m(25℃) |
Typical Applications
- Motion Sensor
- Motion Detector
- Security Alarm System
- Human Detection System
Part List
| Grove - mini PIR motion sensor |
1 |
Note: Please note that the orientation can influence the sensitivity, for more accurate detection, please place the sensor as in the picture below.
[img-25661-left-desc_default]
