PRODUCT DETAILS

An LED strip driver with a 4-pin Grove connector provides an easy connection to your standard Arduino device or Seeed Stalker. It can help you adjust the brightness of a single-color LED strip as well as the color and brightness of an RGB LED strip using an Arduino or Seeeduino device.

It has 2 terminals and 2 Grove connectors. Power for the LED strip comes through the 2-pin terminal. Control voltages for the LEDs come through the 4-pin connector. The 2 Grove connectors are labeled "IN" (control data input) and "OUT" (control data passed to the next strip driver).

It can drive an LED strip that is 1–2 meters long at 9 V and 1–5 meters long at 12 V. The driver together with colorful LED strips can create a stunning effect for indoor or outdoor use.

Features

• Grove-compatible connector

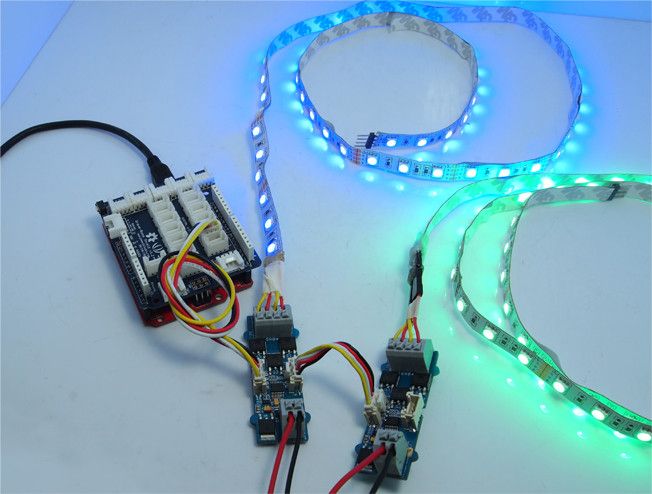

• Can be chained for a larger display
• Best results with LED strips shorter than 5 meters
• Provides PWM signals
• 256 gray levels can be adjusted programmatically
• Compatible with Arduino and MEGA devices
• Screw terminals (power input and control signal output)

Technical Specifications

Parts List

Links

• Wiki Grove - LED Strip Driver
• Grove selection page

• Schematic V1.2 PDF
• Suli library
• LED Strip Driver library
• LED Strip Driver Eagle files V1.2
• N-MOSFET DMN3016
