PRODUCT DETAILS

Description

Have you built a module and want to transform it into a module with a Grove connector and want to prototype with the Grove Ecosystem?

Seeed Studio has a solution for you.

The Grove Female Header allows you to solder it into your exciting modules with a 4-pin connection and use the Grove cable along with the connector to connect your modules to various other development boards offered by Seeed.

Note

This female header has a pitch of 2.0mm.

Difference between the regular version and the 90D version

There are mainly two different versions of the Grove Female Header. They are the regular and the 90D version. When the regular one is soldered onto a PCB, the header sits perpendicular to the PCB, whereas when the 90D version is soldered onto a PCB, the header sits parallel to the PCB.

Which type of Grove cables can be connected to this header?

When using this Female Header, you can use the following Grove cables to prototype your projects.

• Standard Cable
• Branch Cable
• Grove to 4-pin Male Jumper
• Grove to 4-pin Female Jumper
• Branch Cable for Servo

Specifications

Parts List

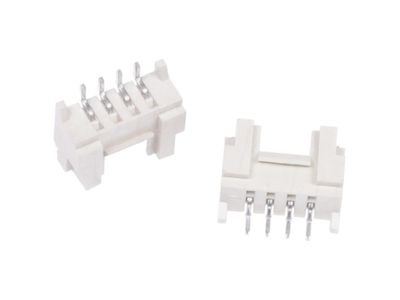

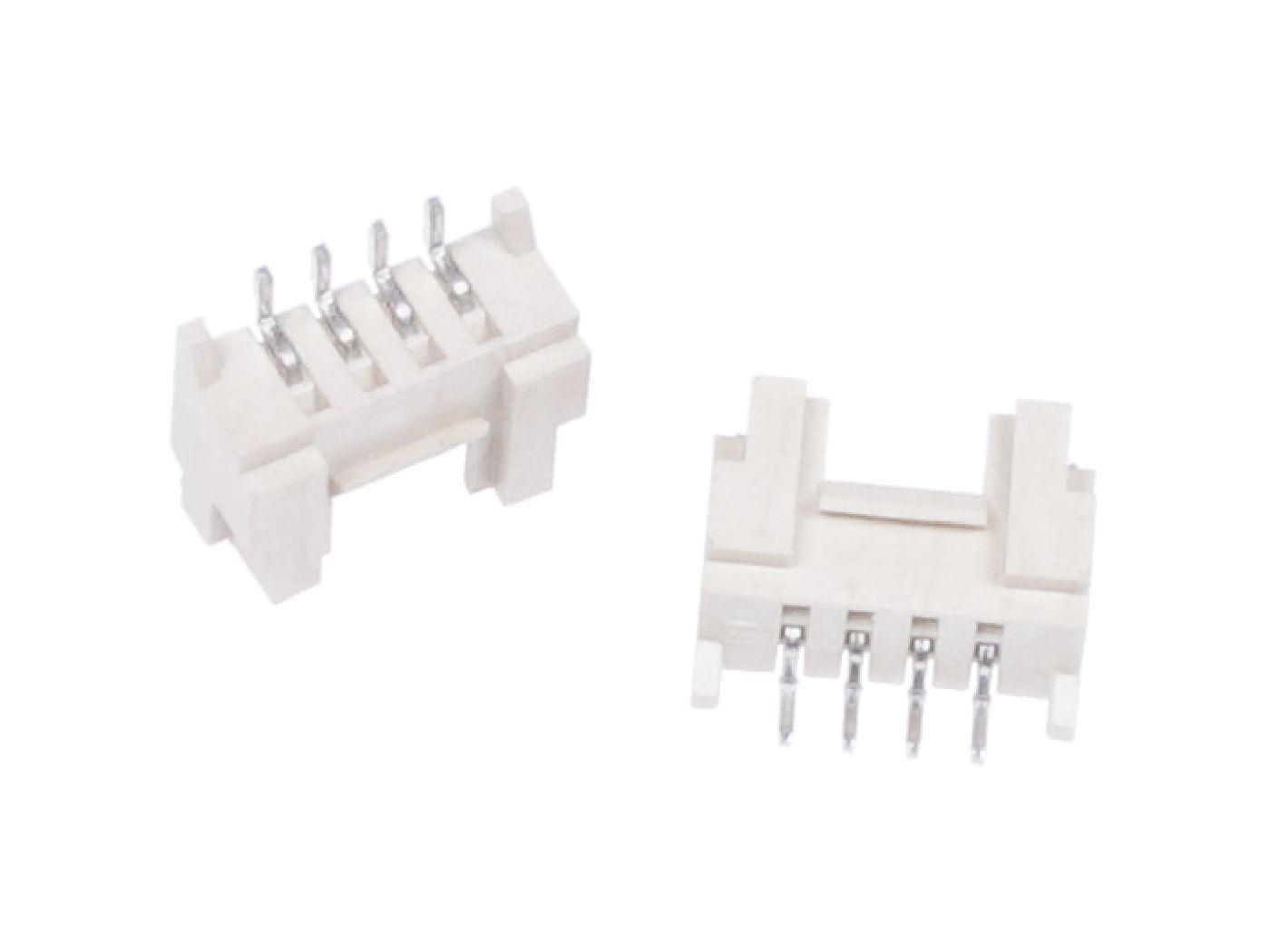

• 20 x Grove Female Header - 90D

Links

• Datasheet
• Grove Selection Guide
