Key Features

• Compact modular design and less wire connection with two buttons in one grove module
• Different color keycaps provided, freely adjust the color combination as needed.
• 3.3/5V voltage compatibility

Description

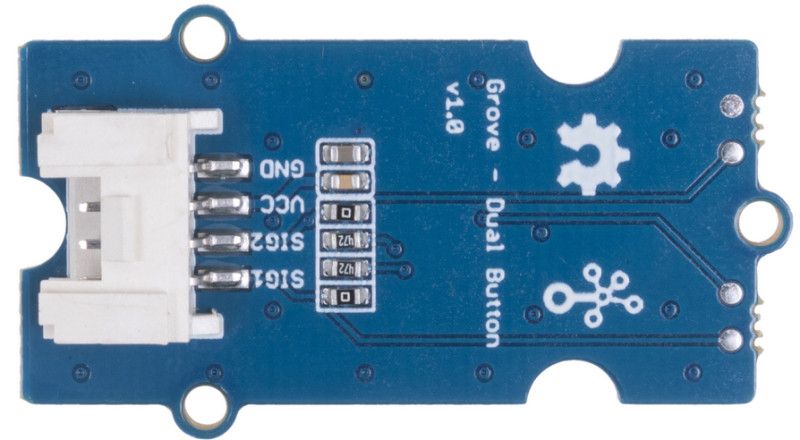

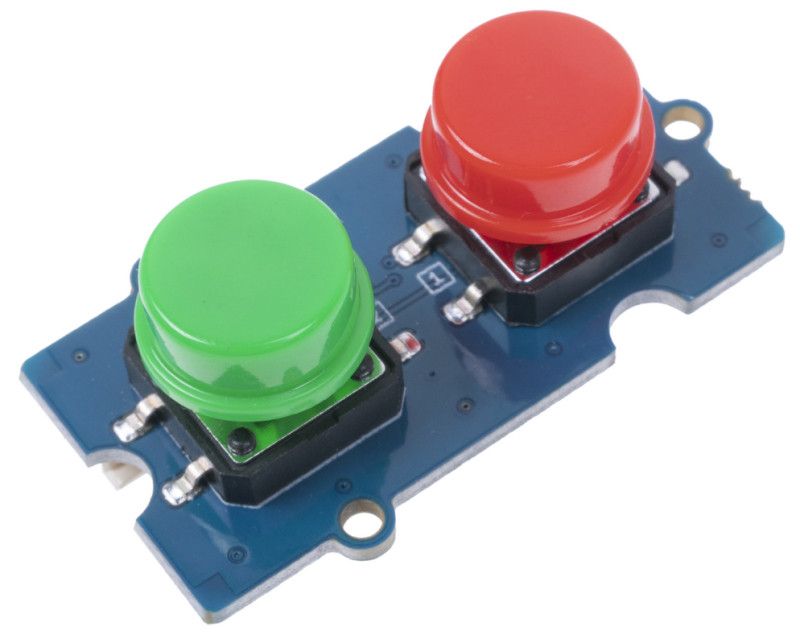

Grove - Dual Button includes 2 buttons, enables you to control two signal channels with one grove module. With 4 different color keycaps provided, you can freely adjust the color combination as needed.

The button is simply driven by the GPIO Digital Pins. When the button is pressed, the Pins can reach a LOW signal from the button; on the other hand, when it is in the loosen state, Pins will always gain a HIGH signal until it is pressed.

Specification

Part List

• 1 x Grove - Dual Button
• 4 x Keycaps
• 1 x Grove Cable

Links

• Wiki Grove - Dual Button
• Grove Selection Guide
