PRODUCT DETAILS

Key Features

• NDIR CO2 sensor technology: embedded with Sensirion SCD30
• Multi-function: Integrates temperature and humidity sensor on the same sensor module
• High precision and wide measurement accuracy: ±(30 ppm + 3%) between 400ppm to 10'000ppm
• Superior stability: Dual-channel detection
• Easy project operation: Digital interface I2C, Breadboard-friendly, Grove compatible
• Best performance-to-price ratio

Description

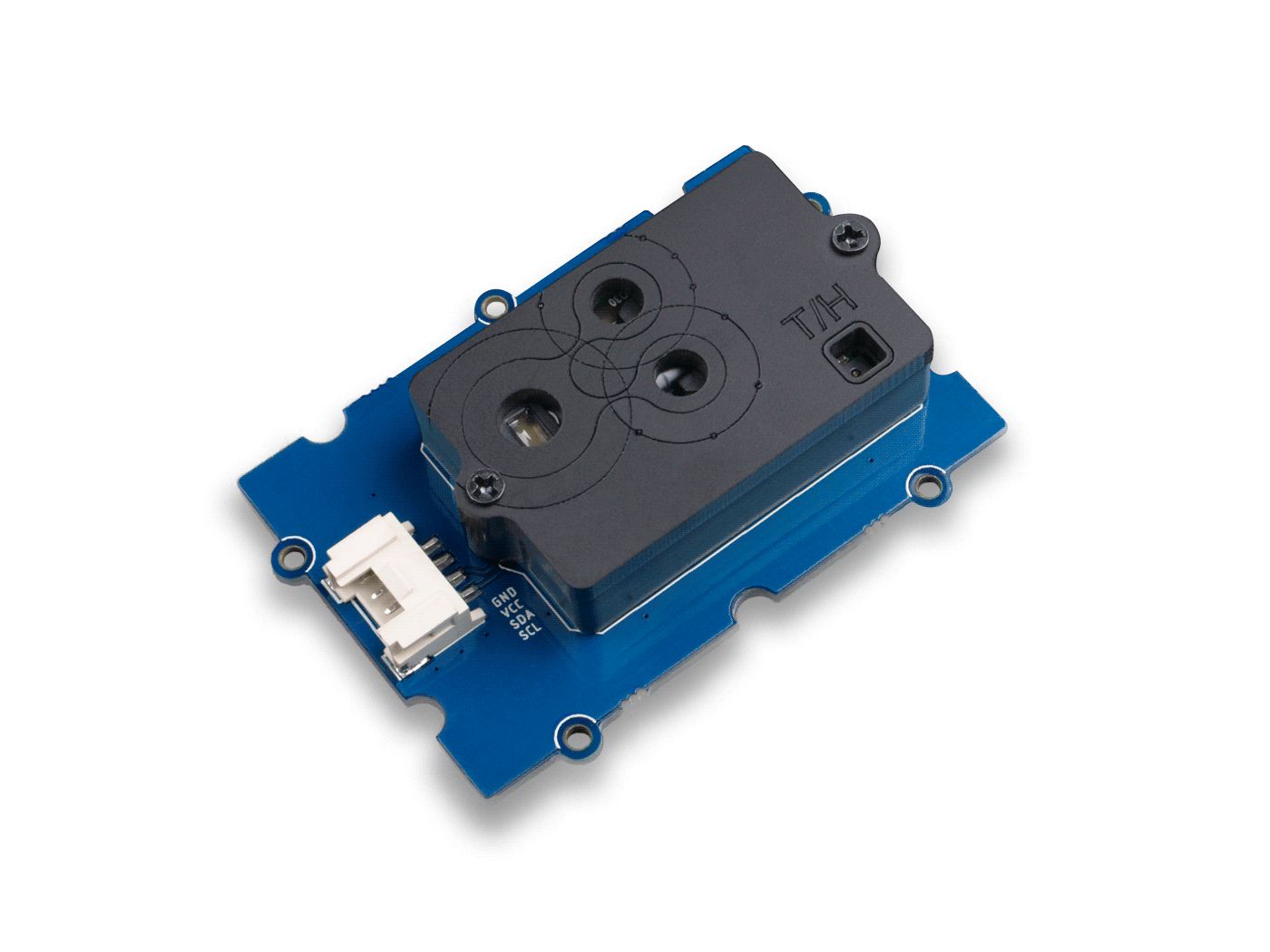

The Grove - SCD30 is a 3-in-1 Arduino sensor that can measure CO2, temperature, and humidity. Based on Sensirion SCD30, it is a Non-Dispersive Infrared(NDIR) carbon dioxide sensor with high precision and wide measurement accuracy which can reach ±(30 ppm + 3%) between 400ppm to 10'000ppm. It would be a perfect choice if you are not looking for a simple Arduino temperature sensor or a CO2 sensor, but a multifunctional sensor for your Arduino weather station or other environmental projects.

Embedded with Sensirion SCD30, The Grove - SCD30 integrates Non-Dispersive Infrared(NDIR) measurement technology for CO2 detection. It also has Sensirion humidity and temperature sensors on the same sensor module.

You can see that there is a monkey face graphic on the module, actually, this is a carbon dioxide molecular model. As you can see, the 4 valence electrons on each oxygen atom and also the covalent bonds between the carbon and oxygen atoms are clearly shown.

Application Ideas

• Air Purifier
• Environmental Monitoring
• Plant Environmental Monitoring system
• Arduino weather station

Links

• Wiki Grove - CO2 & Temperature & Humidity Sensor (SCD30)
• Grove - CO2 & Temperature & Humidity Sensor (SCD30) Schematic file
• SCD30 Design-In Guideline
• SCD30 Datasheet
• SCD30 Interface Description
• Gas Sensor Selection Guide
• Grove Selection Guide
