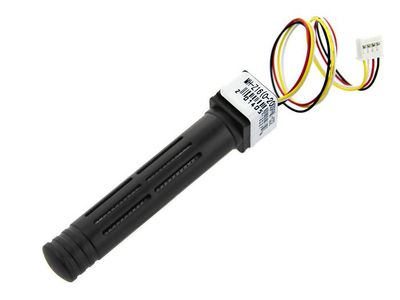

Grove Carbon Dioxide Sensor (MH-Z16)

Temporarily out of stock

SKU#: SEEED-101020067

Seeed Studio 101020067 - Grove Carbon Dioxide Sensor (MH-Z16) is a high sensitivity, high precision and non-dispersive infrared digital temperature sensor with compensation, UART output.

This product is sold out!

Would you like to buy a similar product? No worries, you can:

Buy products from the brand Seeed Studio
Or you can request product availability notifications to your email at the bottom of the page.

Add a comment about the product to my order

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

PRODUCT DETAILS

The Grove - CO2 Sensor module is an infrared CO2 sensor high sensitivity and high resolution. Infrared CO2 sensor MH-Z16 Is a general-purpose, small sensors, the use of non-dispersive infrared (NDIR) Present in the principle of the air CO2 Detect, with good selectivity, oxygen-dependent, long life， built-in temperature sensor, temperature compensation ，with UART output, easy to use. It can be widely used in HVAC and indoor air quality monitoring, industrial process monitoring and security, agriculture and livestock production process monitoring.

Note

The sensor value only reflects the approximated trend of gas concentration in a permissible error range, it DOES NOT represent the exact gas concentration. The detection of certain components in the air usually requires a more precise and costly instrument, which can not be done with a single gas sensor. If your projects aim to obtain the gas concentration at a very precise level, then we do not recommend this gas sensor.

Technical details

Dimensions	100mm x150mm x20mm
Weight	G.W 26g
Battery	Exclude
Measuring Range	0-2000 parts per million (PPM)
Resolution	1 PPM 0-2000 parts per million (PPM)
Accuracy	200 PPM
Warm up time	3 minutes
Response Time	<90s
Operating Temperature	0 to 50℃
Operating Humidity	0% ~ 90% RH
Storage Temperature	- 20-60℃
Operating Voltage	4.5 V to 6 V DC
Maximum Current	100 mA
Average Current	≤50 ma
Output Mode	UART

Part List

Grove - CO2 Sensor	1
Grove Cable	1
