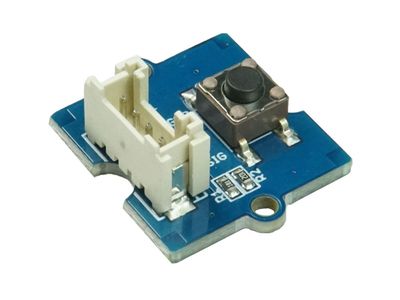

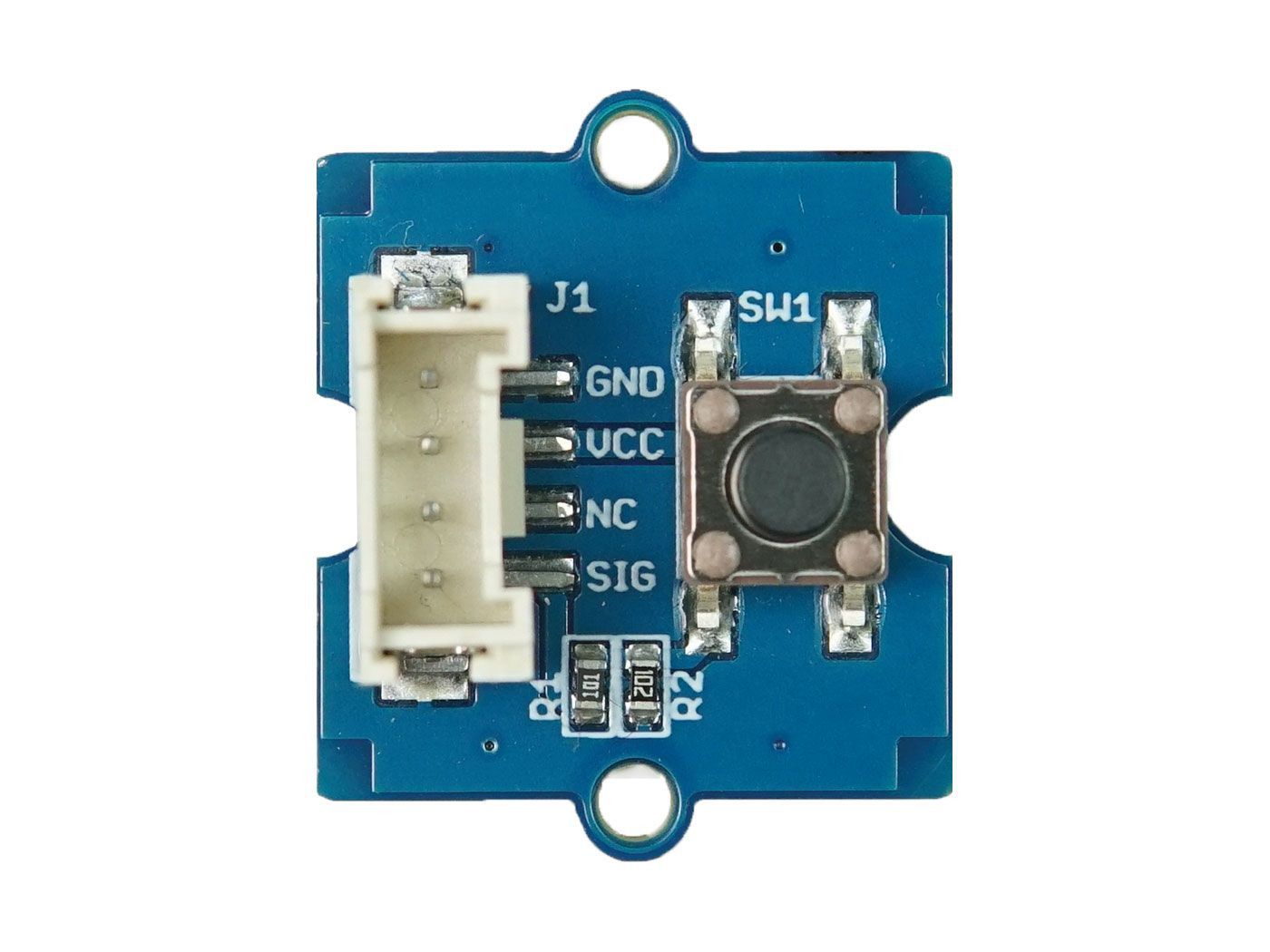

Grove - Button is a momentary push button. It contains one independent "momentary on/off" button. “Momentary” means that the button rebounds on its own after it is released. The button outputs a HIGH signal when pressed, and LOW when released. The Sig marked on silk layer stands for a signal while NC stands for not used at all.

Grove connectors also help you paring the button by the way of only plug and play. If you wish to ON/OFF a circuit by pressing a button-down instead of flipping it, the Grove – Button is for you!

Features

• Easy to use momentary ON/OFF button
• Grove interface
• Operating voltage: 3.3/5V
• Electrical life: 200,000 cycles
• Operating force: 100 ± 50gf
• Operating temperature: -25℃ to +70℃
• Dimensions: 20mmX20mm

Part List

Links

• Wiki Grove - Button
