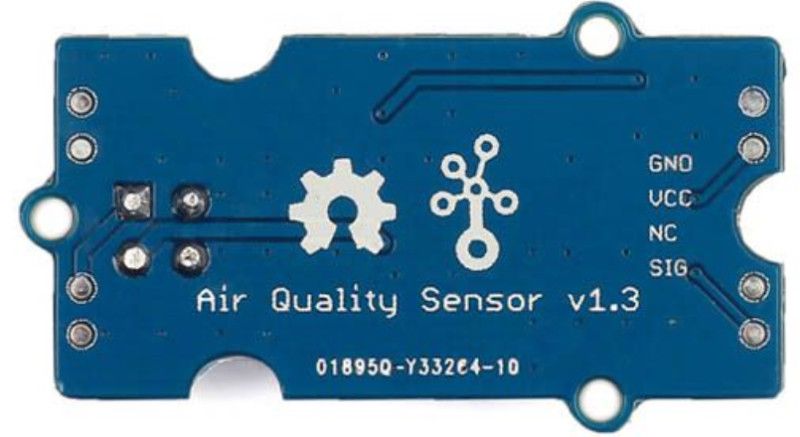

Grove - Air quality sensor v1.3 is designed for indoor air quality testing. It can respond to carbon monoxide, alcohol, acetone, thinner, formaldehyde, and other slightly toxic gases. Compatible with 5V and 3.3V power supply, it can work with Arduino and Raspberry Pi. With its long-term stability & low power consumption, it would be a perfect choice for air quality monitoring.

PRODUCT DETAILS

Features

• High-cost performance: long-term stability & low power consumption

• High sensitivity

• Tiny outline

• Responsive to a wide scope of target gases

• Compatible with 5V and 3.3V, can be used with Arduino and Raspberry Pi

Description

Grove - Air quality sensor v1.3 is designed for indoor air quality testing. It can respond to carbon monoxide, alcohol, acetone, thinner, formaldehyde, and other slightly toxic gases. Compatible with 5V and 3.3V power supply, it can work with Arduino and Raspberry Pi. With its long-term stability & low power consumption, it would be a perfect choice for air quality monitoring.

This sensor performs better in providing qualitative results over a wide scope of target gases. And Please kindly notice it this sensor is exposed to highly polluted air for a long time, it might weaken its sensitivity significantly.

Application

• Air quality monitor
• Auto refresher sprayer
• Auto air cycling systems

Technical details

Based on Winsen MP503

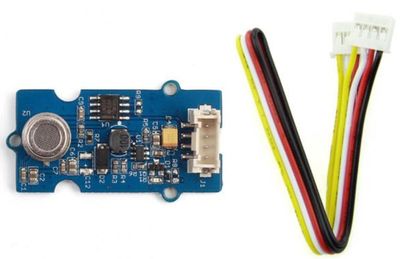

Part List

Links

• Wiki Grove - Air quality sensor v1.3
• Grove_-_Air_quality_sensor_v1.3_sch.pdf
• AirQuality Sensor Library.zip
• Air_quality sensor_MP503_English.pdf
• Seeed's forum
• Seeed Gas Sensor Selection Guide
• Grove Selection Guide
