This is a 4-pin, 2.0mm pitch, straight, DIP Grove Female Header pack with 10pcs, which is suitable to solder onto a module and enable it to connect with other development boards in the Grove Ecosystem.

Note: This female header has a pitch of 2.0mm.

Types of headers available

Seeed Studio offers the following types of Grove Female Headers.

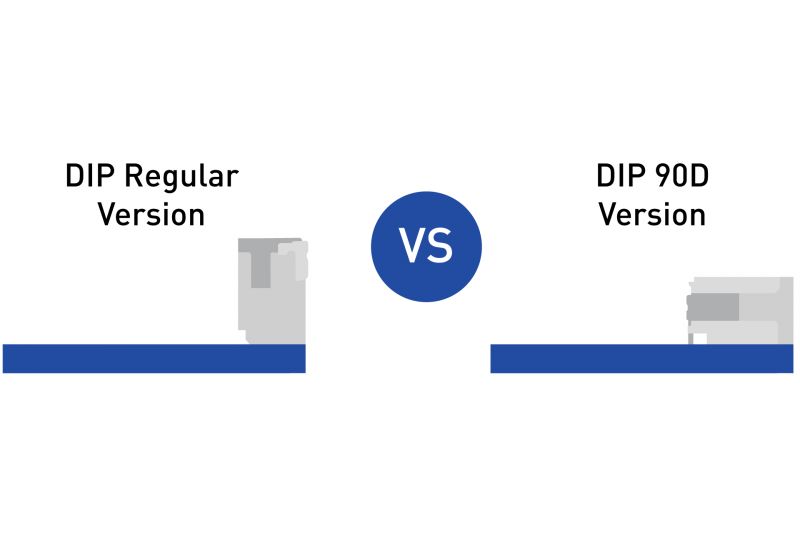

Difference between the regular version and the 90D version of the DIP header

There are mainly two different versions of the Grove Female Header. They are the regular and the 90D version. When the regular one is soldered onto a PCB, the header sits perpendicular to the PCB, whereas when the 90D version is soldered onto a PCB, the header sits parallel to the PCB.

[img-24062-left-large_default]

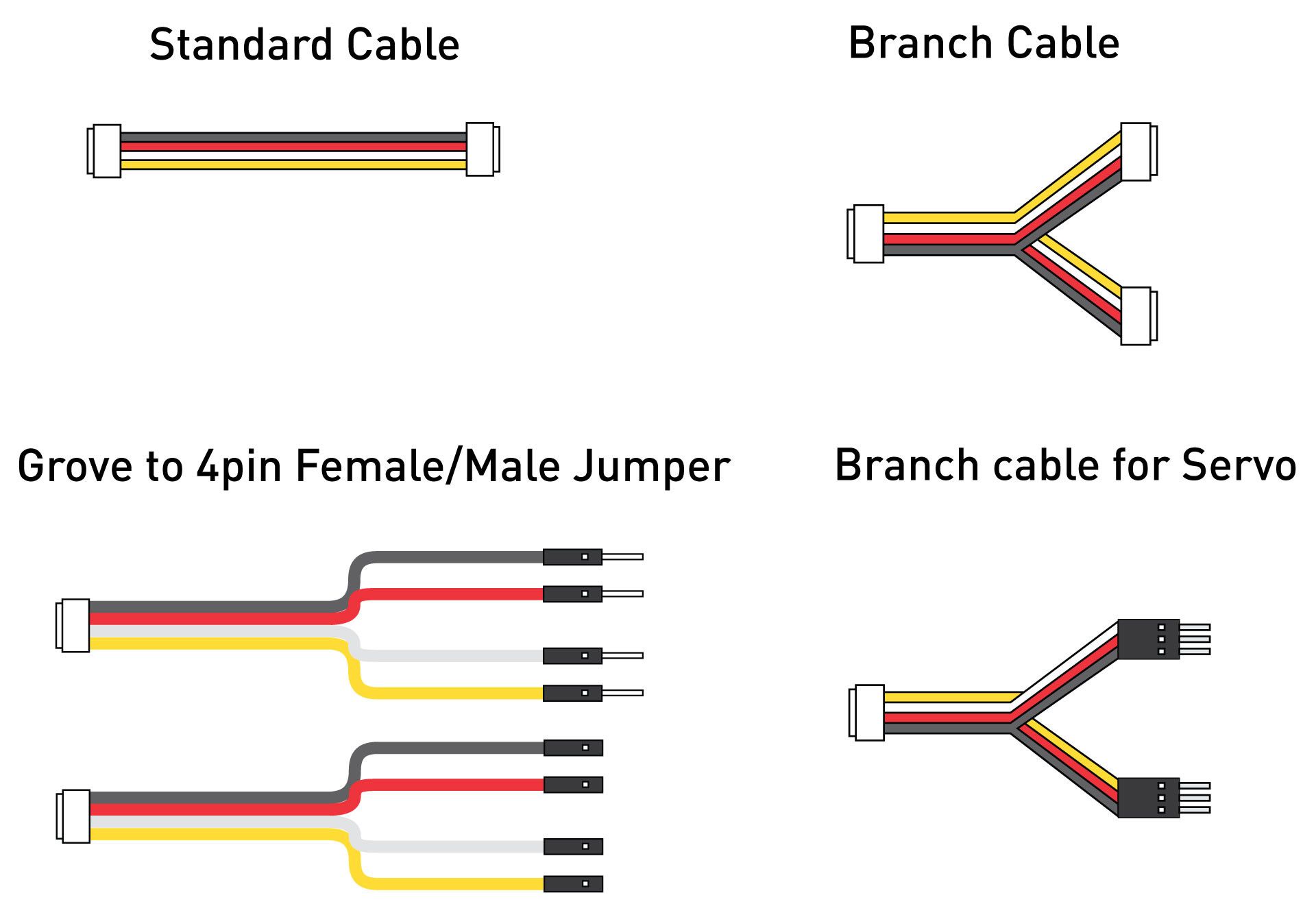

Which type of Grove cables can be connected to this header?

When using this Female Header, you can use the following Grove cables to prototype your projects.

• Standard Cable
• Branch Cable
• Grove to 4-pin Male Jumper
• Grove to 4-pin Female Jumper
• Branch Cable for Servo

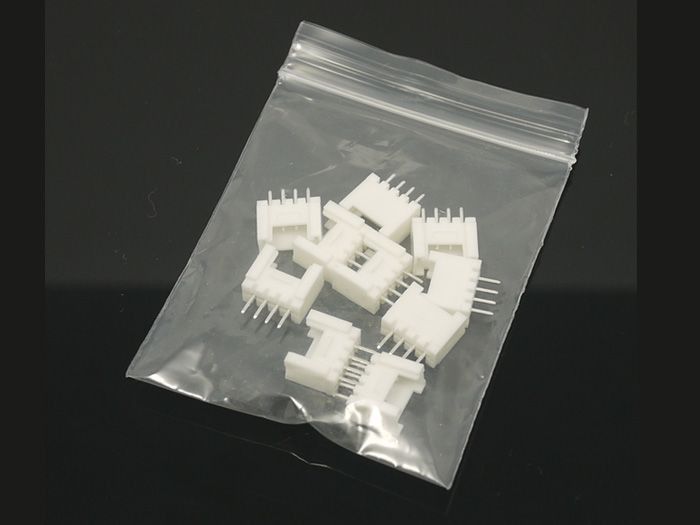

Parts List

• 10 x Grove Female Header - DIP
