PRODUCT DETAILS

Features

• Wide power range DC3V to 5V

• Plug and Play with Arduino boards by Grove connector

• 3 axis sensing

• High sensitivity

• Small, low-profile package: 14-Terminal LGA

• Low power 0.1 μA in standby mode at VS = 2.5 V (typical)

• 10,000 g shock survival

• RoHS/WEEE lead-free compliant

Description

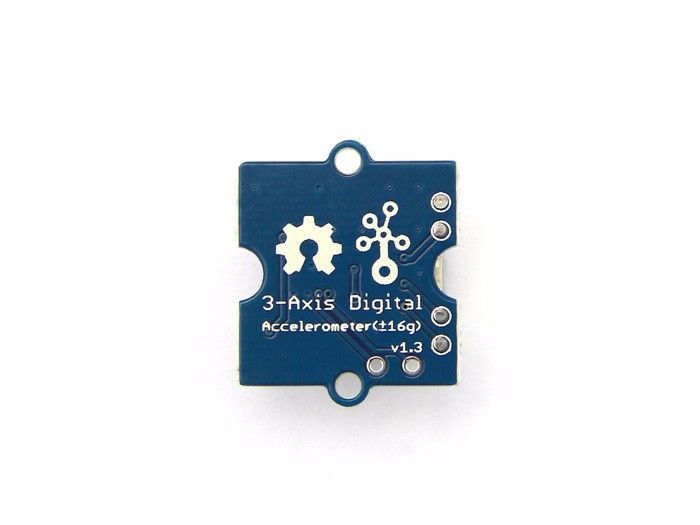

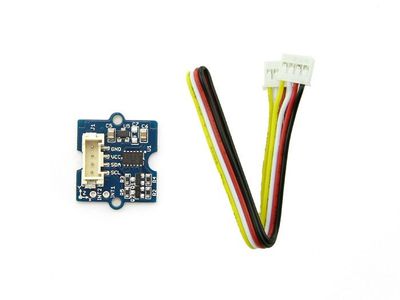

Grove - ADXL345 is a small, thin, ultra low power 3-axis accelerometer, providing high resolution (13-bit) measurement at up to ±16 g.

The ADXL345 is well suited for mobile device applications. It measures the static acceleration of gravity in tilt-sensing applications, as well as dynamic acceleration resulting from motion or shock. Its high resolution (3.9 mg/LSB) enables measurement of inclination changes less than 1.0°.

Grove - ADXL345 is with the extreme low power consumption, as low as 23 μA in measurement mode and 0.1 μA in standby mode. The Low power modes enable intelligent motion-based power management with threshold sensing and active acceleration measurement at extremely low power dissipation.
