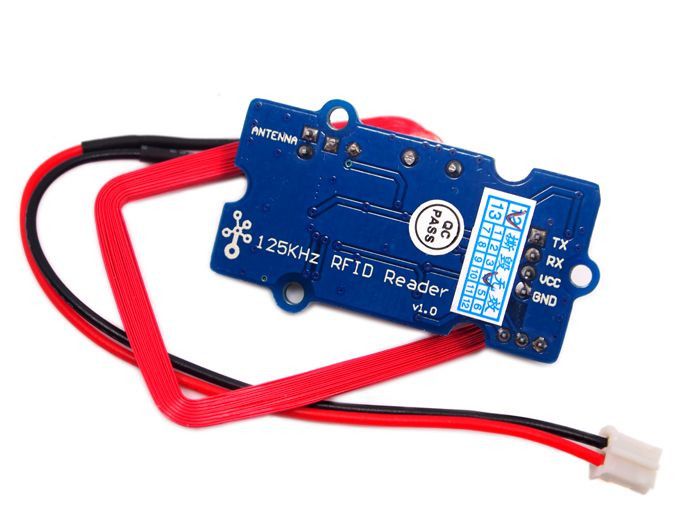

Grove 125KHz RFID Reader

Name: Grove 125KHz RFID Reader
Brand: Seeed Studio
SKU: SEEED-113020002
Price: 19.29 EUR
Availability: InStock

Temporarily out of stock

SKU#: SEEED-113020002

Grove 125KHz RFID Reader

Temporarily out of stock

SKU#: SEEED-113020002

Seeed Studio 113020002 - Grove - 125KHz RFID Reader - 7cm sensing distance 125kHz RFID Card Read Only Arduino Library

19,29 €

Temporarily out of stock

Add a comment about the product to my order

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

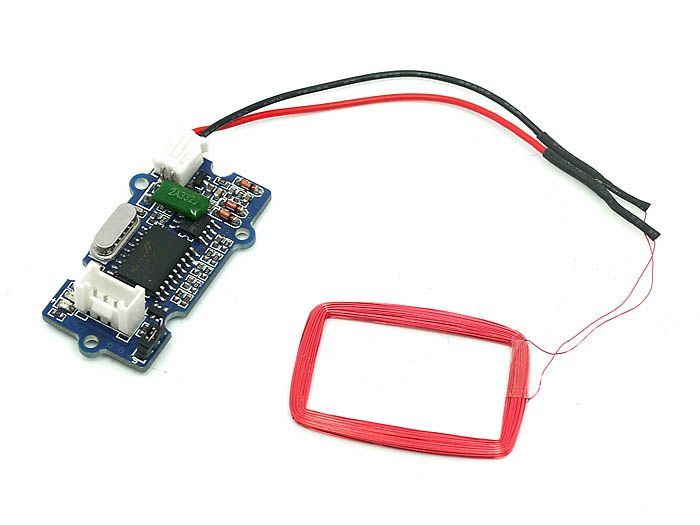

The Grove-125KHz RFID Reader is a module used to read EM4100 RFID card information with two output formats: Uart and Wiegand. It has a sensitivity with maximum 7cm sensing distance.

Features

Selectable output format: Uart or Wiegand.
4Pins Electronic Brick Interface
High Sensitivity

For all Grove users (especially beginners), we provide you guidance PDF documents. Please download and read through Preface - Getting Started and Introduction to Grove before your using of the product.

Technical details

Dimensions	44mm x24mm x9.6mm
Weight	G.W 15g
Battery	Exclude
Voltage	4.75-5.25V
Working Frequency	125 KHz
Sensing Distance(Max)	70mm
TTL Output	9600 baudrate, 8 data bits, 1 stop bit, and no verify bit
Wiegand Output	26 bits Wiegand format, 1 even verify bit, 24 data bits, and 1 odd verify bit

Part List

Grove - 125KHz RFID Reader

Video

Product Information

Availability Temporarily out of stock
Manufacturer Seeed Studio
Product path Home development-cards Modules Grove Grove 125KHz RFID Reader
SKU SEEED-113020002
Attributes
- Weight 15g
- Manufacturer's model 113020002
- Click for more details https://www.seeedstudio.com/Grove-125KHz-RFID-Reader.html
- Dimensions 44 x 24 x 9.6 mm
