PRODUCT DETAILS

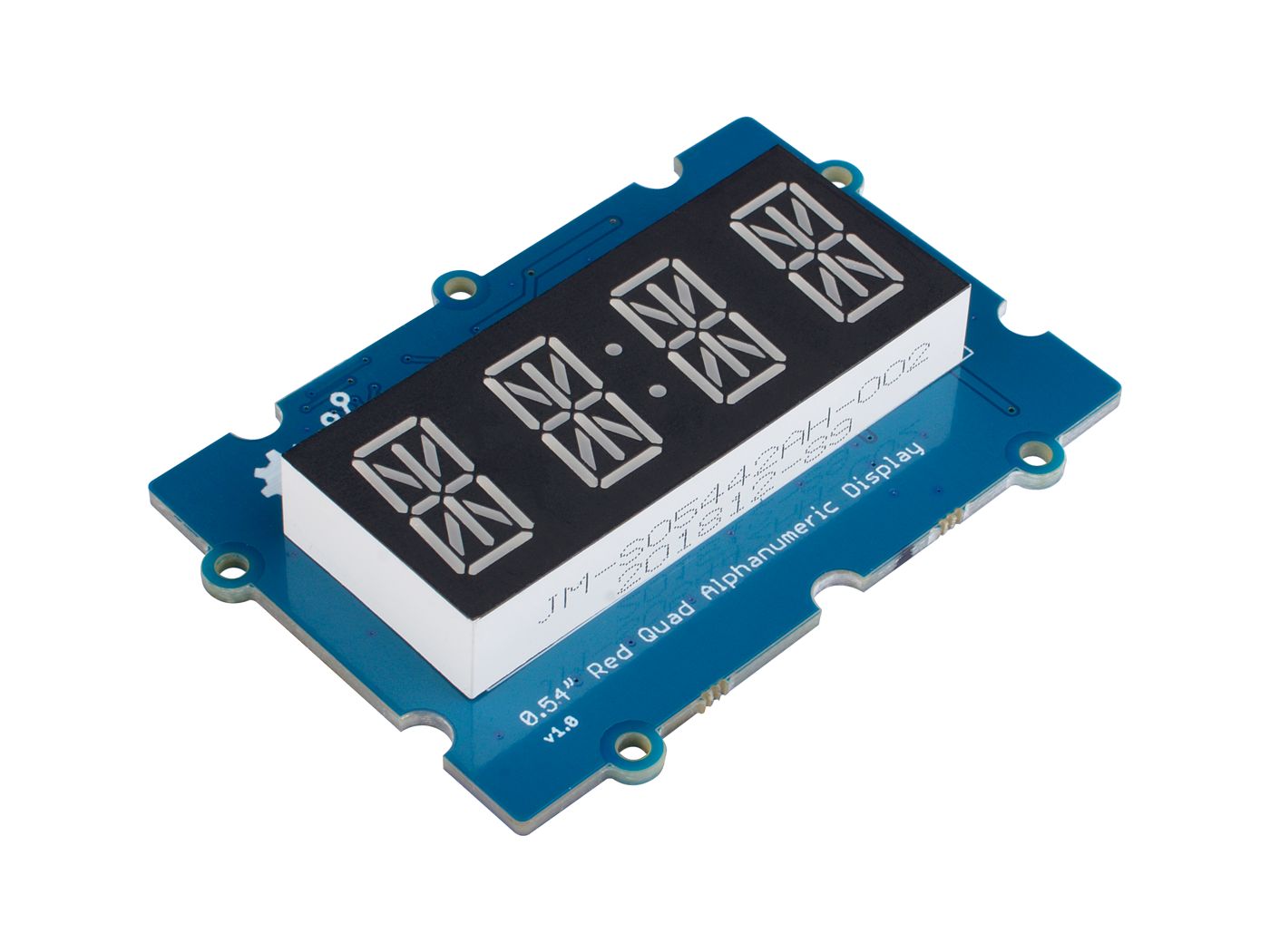

This module is a 4 digit alphanumeric display with high brightness and red backlight, each digit is consists of a 14-segment digital tube. The commonly used 7-segment display, such as our Grove - 4-Digit Display can only display the numbers 0-9 and a limited number of letters. In contrast, the 14-segment digital display does not have this limitation, it can display all the characters, that's why we call it alphanumeric display.

The digit height is 0.54 inch and the red LED used in this module has super high brightness, so you can see it a few meters away.

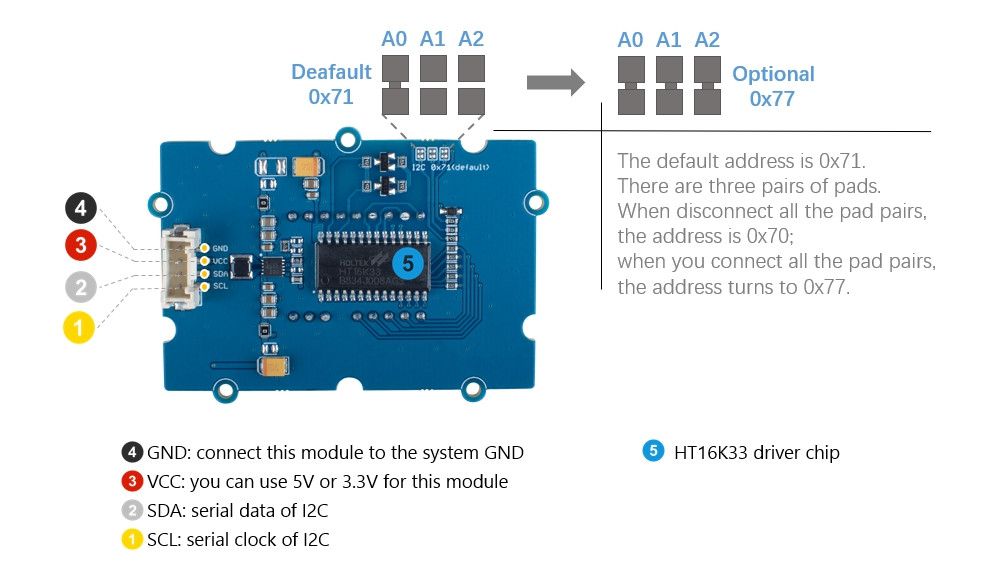

Usually, the 14-segment display needs to use 17 or more wires to control the display, which means that a large amount of IO of your main control board (such as Arduino) will be occupied. With the help of on-board HT16K33 chip and Grove connector, we made it an i2c display, only four wires are enough. No troublesome soldering and no complicated wiring, if you are using seeeduino, it is really plug and play, easy peasy.

Features

• Can display all letters and numbers
• Ultra-high brightness:30mcd
• Grove I2C, only takes two IO pins
• Onboard drivers, easy to use
• Cathode display

Applications

• Clock display
• Display speed, temperature, etc.
• Letter display

Links

• Wiki Grove - 0.54" Red Quad Alphanumeric Display
• Grove Selection Guide
• Grove - 0.54" Quad Dual Alphanumeric Display Schematic file
• LED Module Datasheet
• HT16K33 Datasheet
• MPS MP2155 Datasheet
• Grove - 0.54" Qual Dual Alphanumeric Display Library
