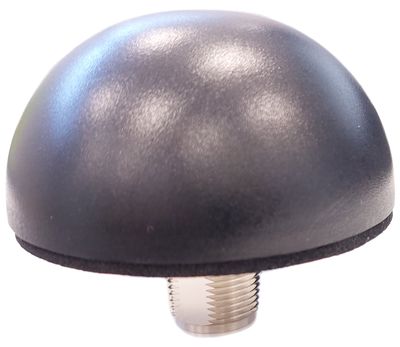

GPS/Glonass ACTIVE ANTENNA N-JACK

Temporarily out of stock

SKU#: PPX6030NFXX2003

GPS/Glonass ACTIVE ANTENNA N-JACK

GPS/Glonass ACTIVE ANTENNA N-JACK

GPS/Glonass ACTIVE ANTENNA N-JACK

Temporarily out of stock

SKU#: PPX6030NFXX2003

Frequency range: 1575 ~ 1602 MHz
Polarization: RHCP
Gain: 3.5 dBi (7cm×7cm ground plane)
VSWR: 2
Impedance: 50 Ω
LNA gain (without cable): 28 dBi (Typical)
LNA noise figure: 1.5 dB
Voltage: 2,2 - 5,5 VDC
Current consumption: 13 mA
Connector type: N-female
Mounting method: through-hole mount
Operating temperature: -40 ~ +85
100% waterproof

62,03 €

Temporarily out of stock in the online store

Add a comment about the product

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

Frequency range: 1575 ~ 1602 MHz
Polarization: RHCP
Gain: 3.5 dBi (7cm×7cm ground plane)
VSWR: 2
Impedance: 50 Ω
LNA gain (without cable): 28 dBi (Typical)
LNA noise figure: 1.5 dB
Voltage: 2,2 - 5,5 VDC
Current consumption: 13 mA

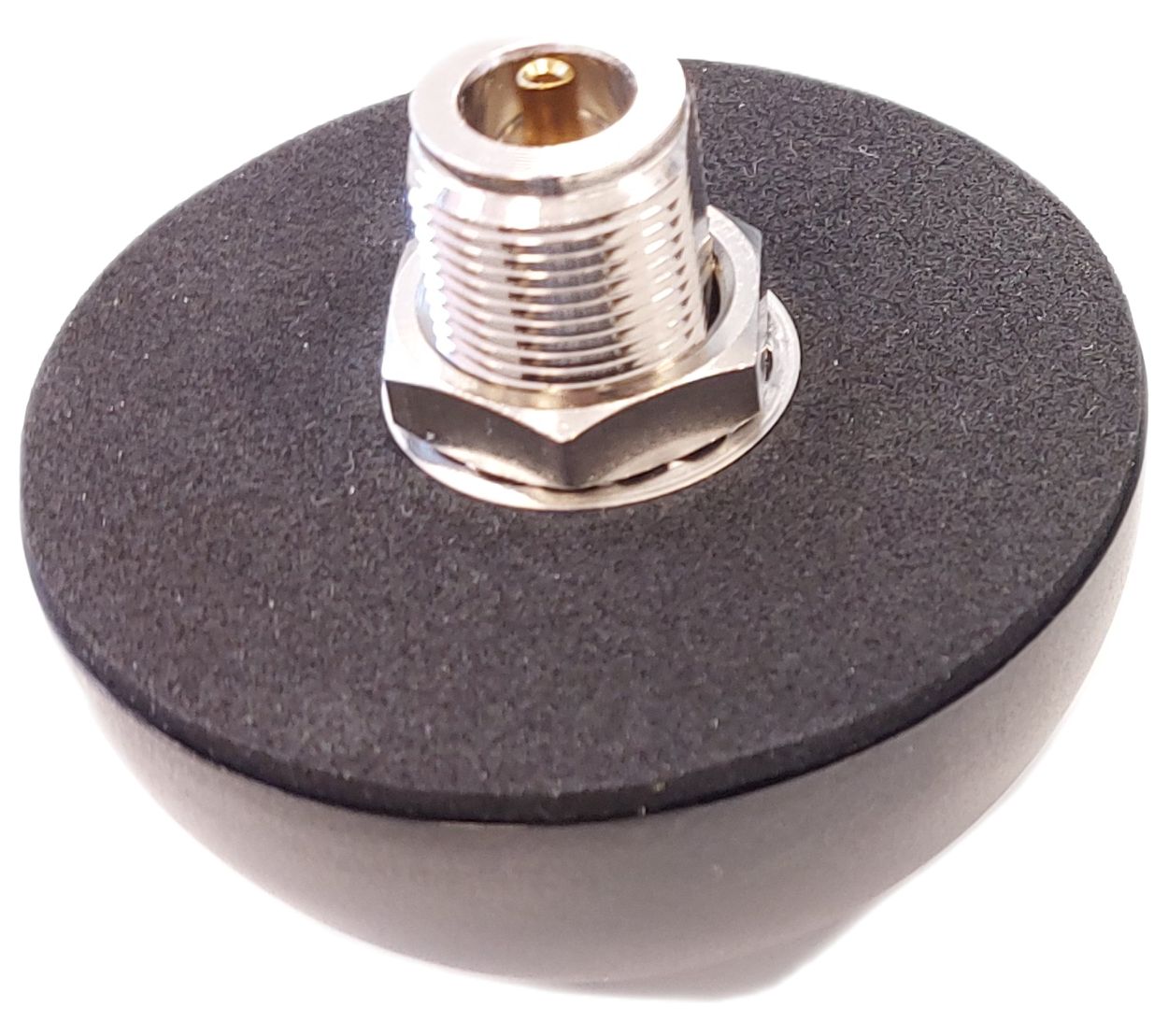

Connector type: N-female

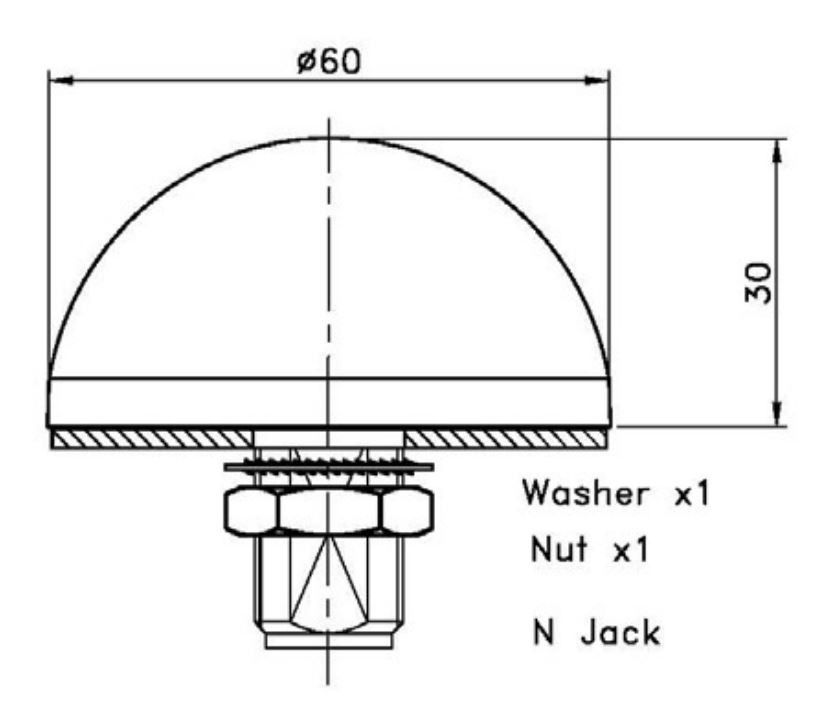

Mounting method: through-hole mount
Operating temperature: -40 ~ +85
100% waterproof

Product Information

Availability Temporarily out of stock in the online store
Manufacturer Joymax
Product path Home Telecommunications Telecommunication Antennas GPS antennas GPS/Glonass ACTIVE ANTENNA N-JACK
SKU PPX6030NFXX2003
Attributes
- Operating temperature -30...+70°C
- Color musta
- Connector-A N
- Installation hole size Ø16mm
- Manufacturer's model PPX6030NFXX2003
