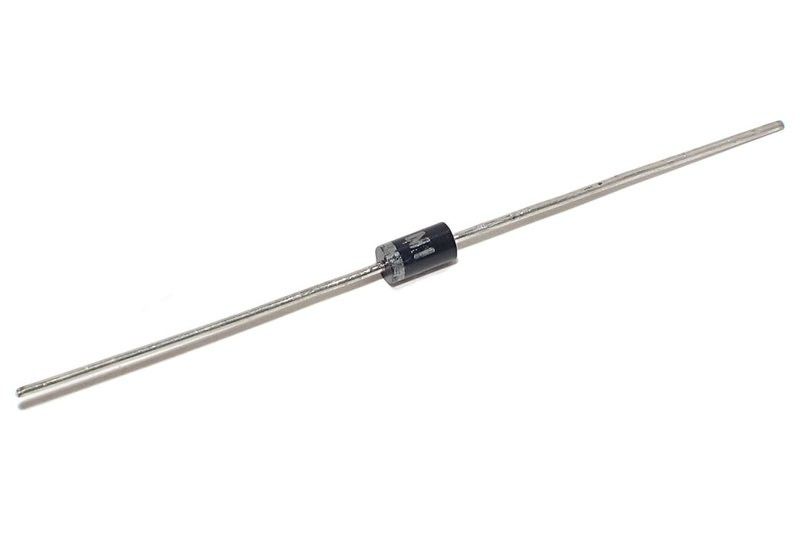

The 1N4007 is a general-purpose rectifier diode suitable for AC-DC conversions, as a protection diode and for general electronics applications.

• Type: Rectifier diode
• Max. repetitive reverse voltage (VRRM): 1000 V
• Max. continuous current (IF): 1 A
• Surge current (IFSM): 30 A
• Forward voltage (VF): approx. 1.1 V @ 1 A
• Package: DO-41 (axial)
• Temperature range: -55 °C ... +150 °C

Applications:

• Rectification in power supplies
• Switching protection (flyback diode for relays)
• General signal and power diode uses
