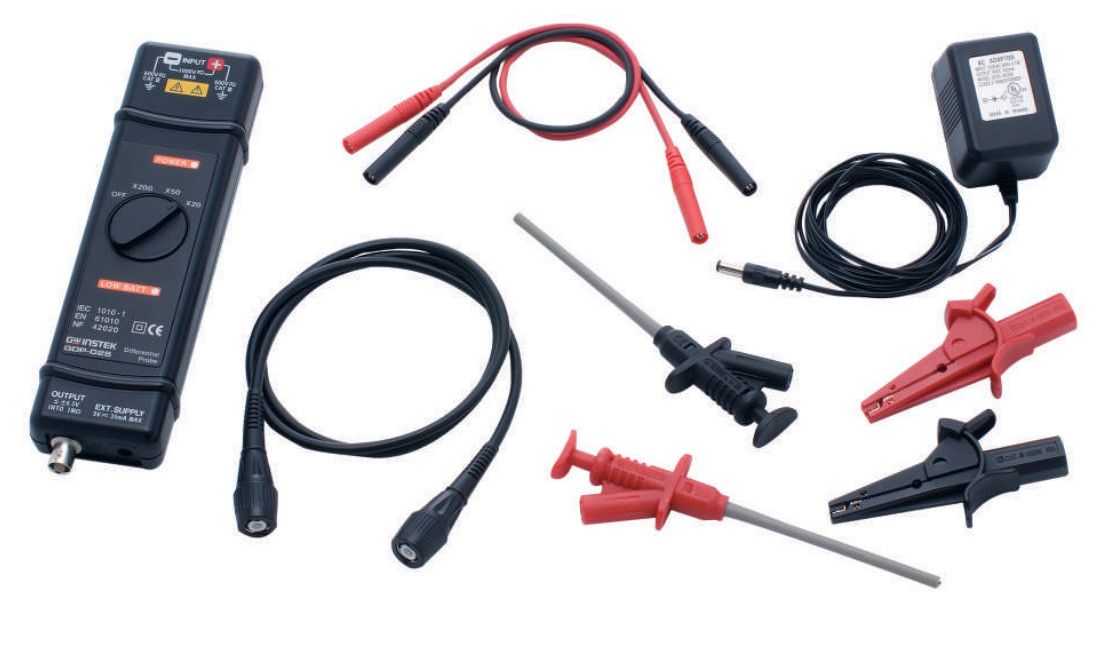

GW Instek GDP-025 - Active differential probe for oscilloscopes. Enables measuring differential signals with a standard oscilloscope. A standard oscilloscope probe measures potential relative to ground, but the GDP-025 differential probe allows measurements between two freely selectable potentials. The probe is capable of measuring voltages up to 1400V.

Technical specifications

• Bandwidth: 25MHz
• Attenuation: x20, x50, x200
• Max. input voltage: 140V AC/DC p-p (x20), 350V AC/DC p-p (x50), 1400V AC/DC p-p (x200)
• Input impedance: 4MΩ / 1.2pF (differential), 2MΩ / 2.3pF (between terminals and ground)
• Max. output voltage: +-7V
• Output impedance: 50Ω
• Rise time: 14ns (x50, x200), 23.4ns (x20)
• CMRR:50Hz >80dB, 100Hz >60dB, 1MHz >50dB
• Power supply: 9V external
• Max. current consumption: 35mA
