Description

Fnirsi SWM-10 is an advanced portable spot welder that is ideal for building and repairing batteries. Thanks to its versatility, it can weld stainless steel, aluminum, iron and nickel up to 0.25 mm thick. The welder is equipped with temperature control functions and multiple protections, such as overheat, low-voltage and short-circuit protection, which ensure safe and stable operation. The device's dual pulse welding technology enables the creation of durable and strong welds, making this unit an indispensable tool for professional tasks.

The SWM-10 welder also functions as a power bank thanks to its built-in 5000 mAh lithium battery, ensuring mobility and long-lasting use. The 1.8-inch TFT LCD display makes it easy to navigate and precisely set parameters such as temperature, pulse power and number of connections. With four power adjustment modes you can set the welding intensity according to the specific requirements of the project.

Key Features

• Dual pulse technology: Two separate electrical pulses improve surface cleanliness and ensure strong welds.

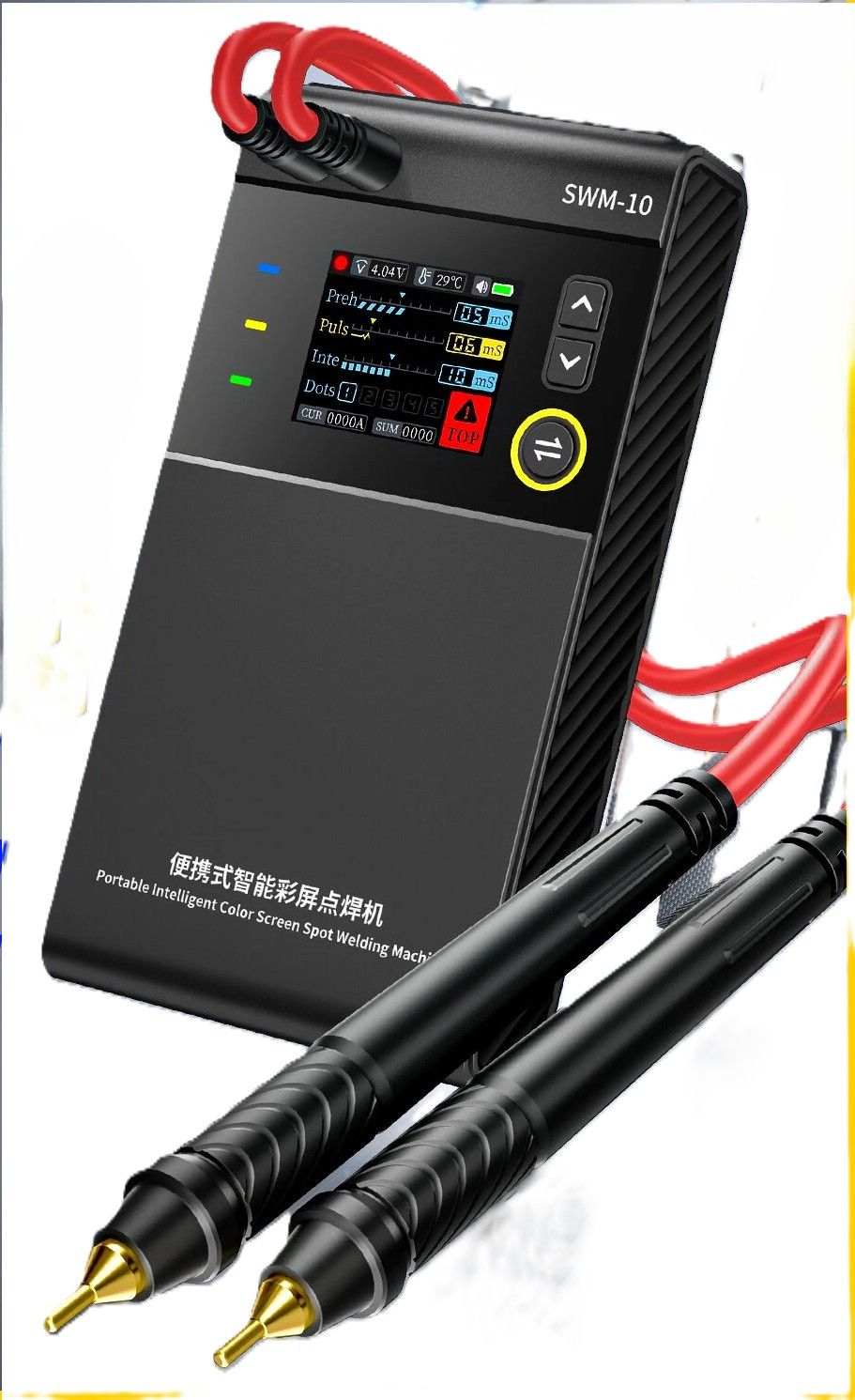

• Color display: The 1.8-inch TFT LCD clearly shows operating parameters such as voltage, temperature and battery status.
• Adjustable power: Allows precise control of welding parameters to ensure joint stability and quality.
• Powerful battery: Built-in 5000 mAh battery provides long runtime and functions as a power bank.
• Multiple protections: Protects against overheating, overload, short circuit, high temperatures and other hazards.

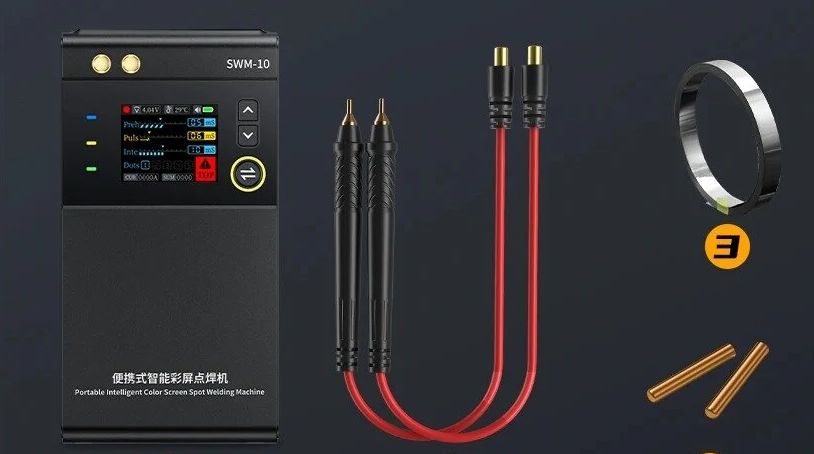

• Purple copper welding pen: Modular design allows easy tip replacement, and the ergonomic handle ensures comfort and precision.

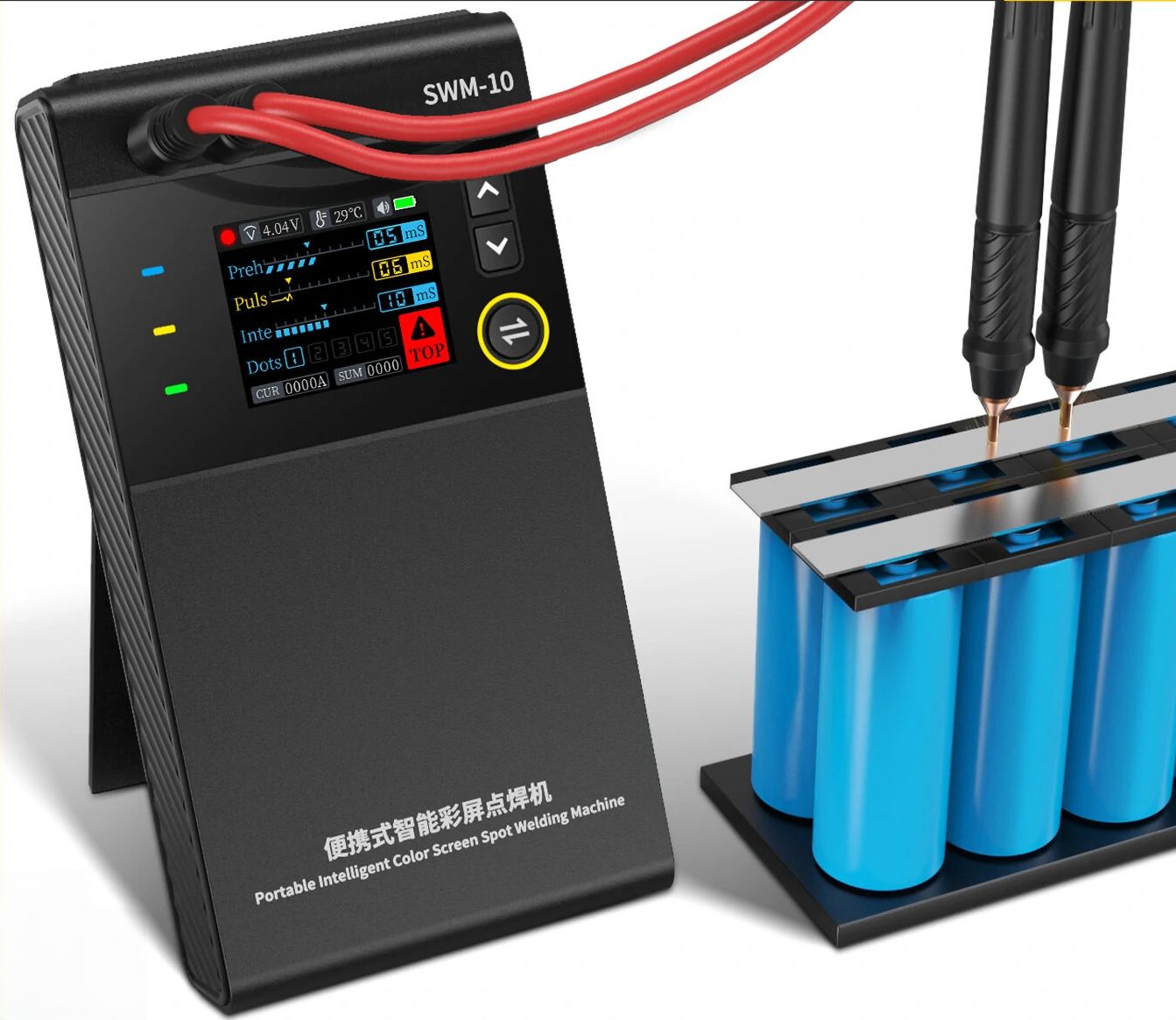

• Wide application range: Excellent for assembling various types of batteries.

Specifications

• Joint thickness: 0.1–0.25 mm
• Maximum welding current: 1200 A
• Battery capacity: 5000 mAh
• Display: 1.8-inch TFT LCD display
• Connections: USB-A, USB-C
• Dimensions: 155 x 82 x 28 mm
• Weight: 560 g
