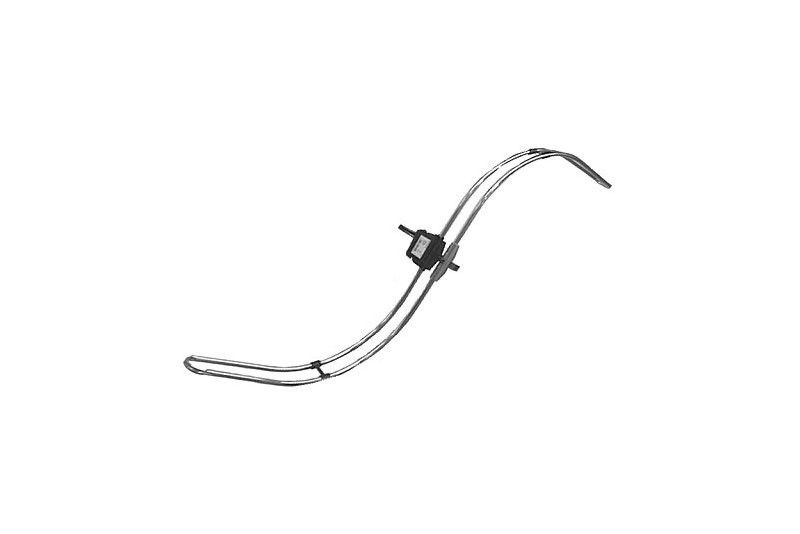

FM10VF FM radio antenna for outdoor installation

The FM10VF is Iskra's compact outdoor FM radio antenna (88–110 MHz). The antenna is suitable for receiving FM radio broadcasts and can be installed in either horizontal or vertical polarization. Its omnidirectional design allows reception from all directions without precise aiming.

Features

• FM radio antenna for outdoor use
• Frequency range 88–110 MHz
• Horizontal or vertical polarization
• Omnidirectional 360° reception pattern
• Impedance 75 Ω
• Suitable for 20–50 mm masts
• Compact 225 mm design
• Aluminum construction for weather-resistant use

Technical specifications

• Manufacturer: Iskra
• Product code: FM10VF
• EAN: 6416280460054
• Frequency range: 88–110 MHz
• Gain: -1 dBi (horizontal), -2 dBi (vertical)
• Beamwidth H/V: 360°
• Impedance: 75 Ω
• Length: 225 mm
• Mast diameter: 20–50 mm
