The core of this round fingerprint module is the ID809 processor, which uses the new IDfinger6.0 fingerprint algorithm. The integrated chip also reduces the size of the fingerprint module. The product structure is simple, and the modular design improves product stability and consistency. The fingerprint sensor module supports UART communication mode, and with the SDK development kit it can be connected to any microcontroller or system via TTL serial, which is convenient for secondary development. It also comes with a 6-pin Molex-style connector with a 1 mm pitch, which you can easily cut and solder directly to wires.

• Red to GND
• Yellow to Microcontroller TX (data out from microcontroller)
• Black to Microcontroller RX (data in from microcontroller)
• Green to 3.3V VIN
• Blue to IRQ (can leave disconnected)
• White to 3.3V VCC (can leave disconnected)

Features

• Good experience and high security: The brand-new IDfinger6.0 fingerprint algorithm is deeply optimized and fully accelerated; Fingerprint recognition has fast speed and high security, and it supports 360-degree recognition at any angle.
• High performance and low power consumption: The module CPU is produced by advanced technology, with ARM® Cortex™-M4 core, which has fast operation speed and low power consumption.
• Complete functions: It integrates functions such as fingerprint collection, image processing, feature extraction, fingerprint registration, fingerprint comparison, fingerprint deletion, and other functions.
• Easy to develop: support Windows, Android, embedded systems, standard UART communication, and provide SDK development kit
• Compact size: simple structure, small size, can be flexibly embedded in various products with limited size
• Durable: high electrostatic withstand voltage, strong anti-interference ability, and sturdy shape.

Specs

• The active capacitive sensor can store 200 fingerprints
• 1:1 authentication time is about 300 ~ 400 ms.
• Communication method with host is UART
• Sensor pixel resolution is 508 dpi.
• Sensor pixel count is 160x160.
• 360° fingerprint input and comparison
• The outer frame diameter of the sensor is 12,8 m, fingerprint recognition area 8,0 mm x 8,0 mm.
• Sensor scratch resistance rating is 4H, and electrostatic level is +/- 15kV.
• Operating environment of the product is -40 -60 ℃/
• PCB diameter of the product is 21mm, installation is 19mm, height is 5mm.
• CNC-machined metal bezel, and opening.

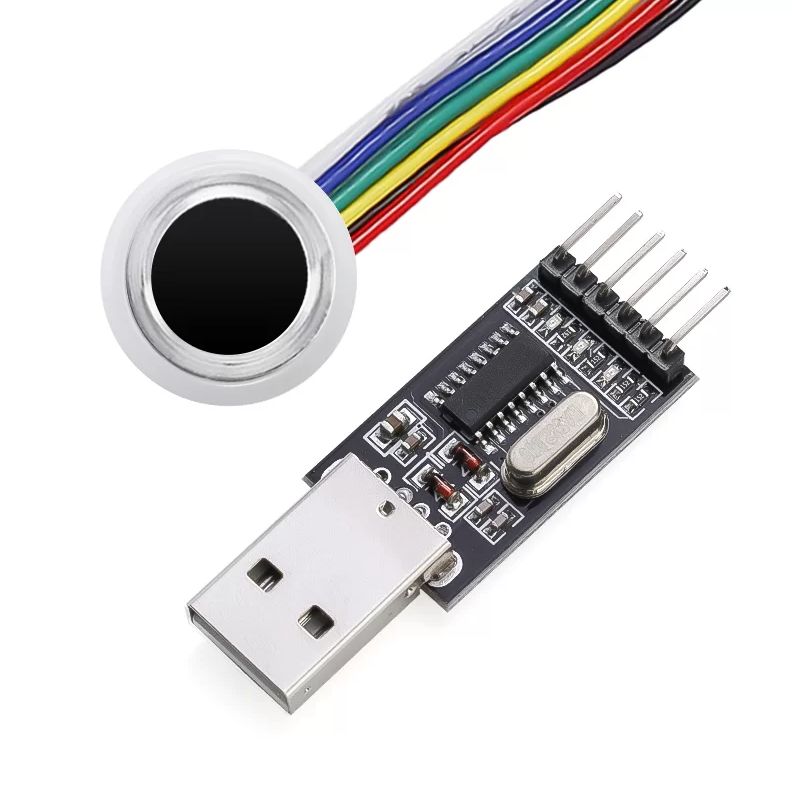

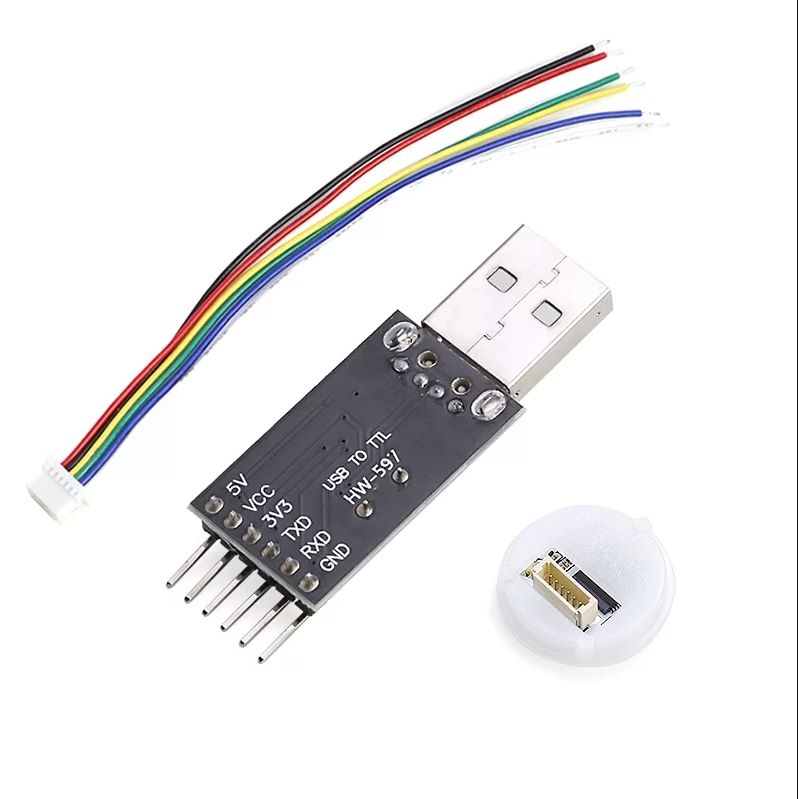

Delivery

• 1x fingerprint sensor module
• 1x 6 pins cable
• 1x USB to TTL converter
