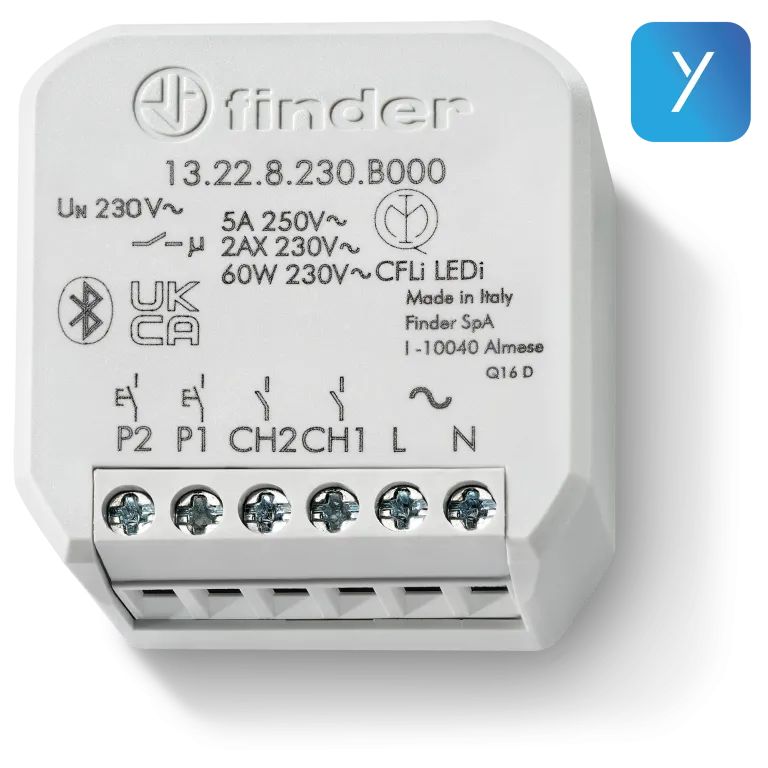

13.22 YESLY Electronic Bluetooth multi-function relays with 2 contacts for use with the YESLY system.

It can perform various functions in controlling lights and fans.

Equipped with Bluetooth 4.2 Low Energy transmission protocol and a 128-bit encrypted connection. Programmable via the Finder Toolbox app, which is compatible with iOS and Android operating systems.

Can be connected to wired pushbuttons or wireless BEYON and Type 013B9 pushbuttons.

Applications

• Call and zero switches for bathrooms
• Bathroom lighting control
• Bedroom lighting control
• Living room lighting control
• Office lighting control

Features

• 2 separate and programmable channels
• 21 available functions
• Default function (both channels): (pushbutton control): RI - step relay (pushbutton control).
• Special function RIa - step relay (switch control). Ideal for converting a traditional system into a smart system using one, two or four switches
• 2 outputs with NO contacts, rated 6 A 230 V AC
• Lamp load: 230 VAC
• 2 inputs for wired pushbuttons (one input per channel). Can be controlled with standard wired pushbuttons, wireless pushbuttons, or a smartphone
• App programming with iOS or Android smartphone
• Supply voltage 230 V AC (50/60 Hz)
• Secure Bluetooth 4.2 Low Energy connection with 128-bit encryption
• Flush mounting (e.g. round box 0 - 60 mm)

Links

• Discover the Finder YESLY Smart home automation system here!

Note! Dimensions suitable for wall mounting box.
