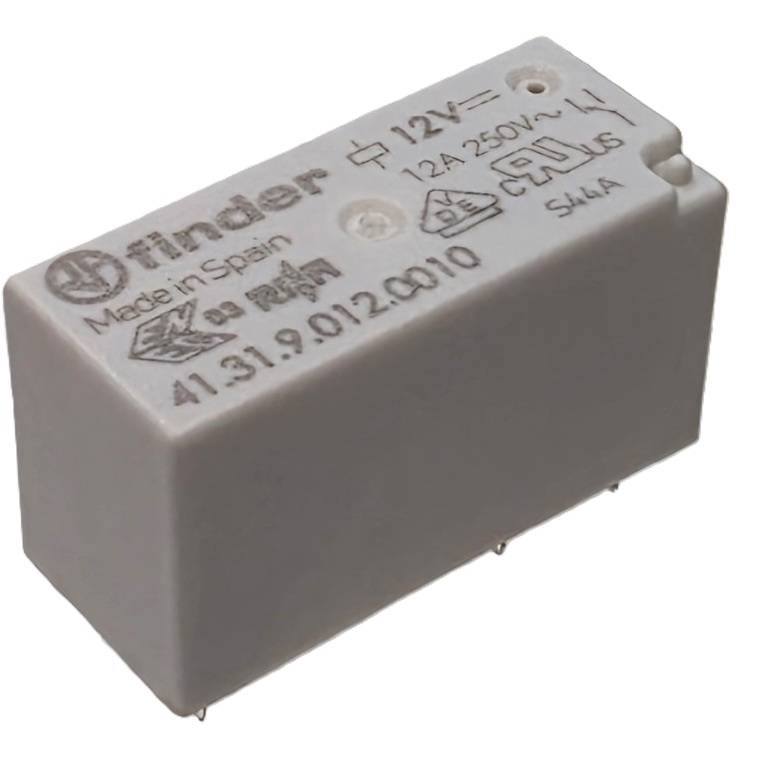

Finder 41.31.9.012.0010 PCB relay 12VDC 12A SPDT

Finder 41-series low-profile PCB relay for general-purpose control, automation and industrial applications. The relay has one changeover contact (SPDT), a 12 VDC coil and up to 12 A switching capacity. The compact design is especially suitable for space-saving electronic devices.

Features

• Manufacturer: Finder
• Product code: 41.31.9.012.0010
• Coil voltage: 12 VDC
• Contacts: 1 changeover contact (SPDT, 1CO)
• Contact nominal current: 12 A
• Maximum switching voltage: 250 VAC

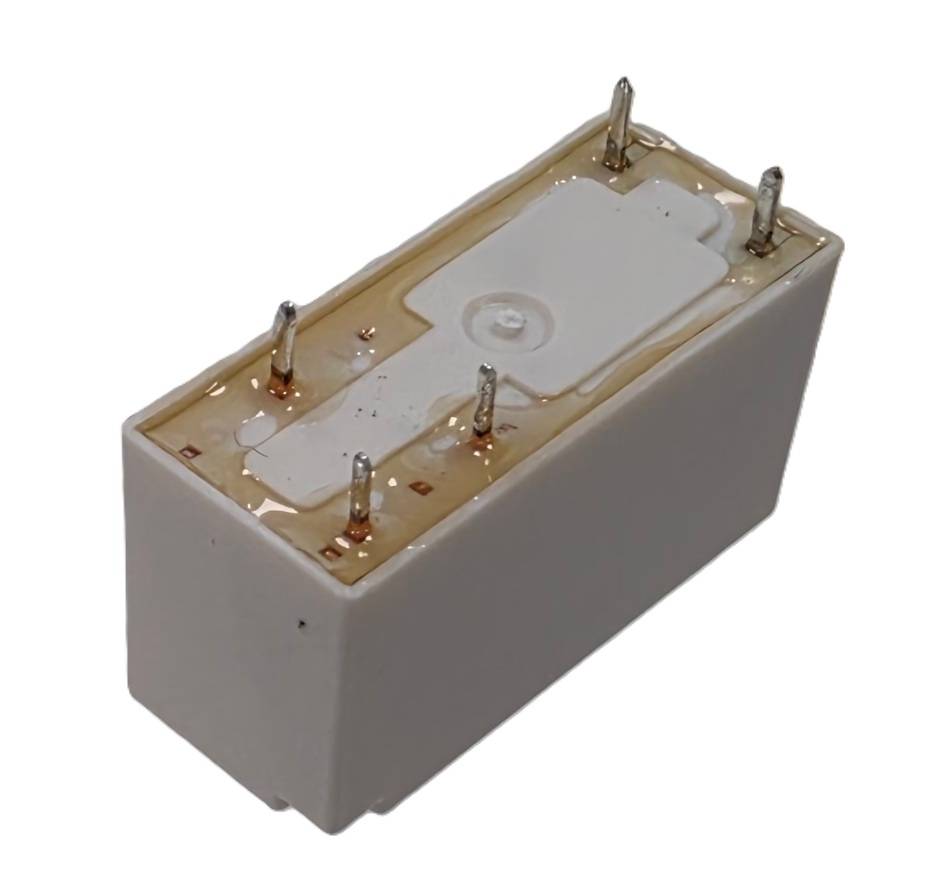

• PCB mounting (THT)
• Low-profile design
• Silver-nickel (AgNi) contacts
• Coil power: approx. 400 mW

Technical data

• Coil resistance: 360 Ω
• Coil current: approx. 33 mA
• Insulation strength coil-contacts: 6 kV
• Operating temperature: -40...+85 °C
• Dimensions: 29 × 12,7 × 15,7 mm

Applications

• Industrial automation
• Control and monitoring equipment
• Building automation
• Timers and control units
• Switching power loads in electronic devices
