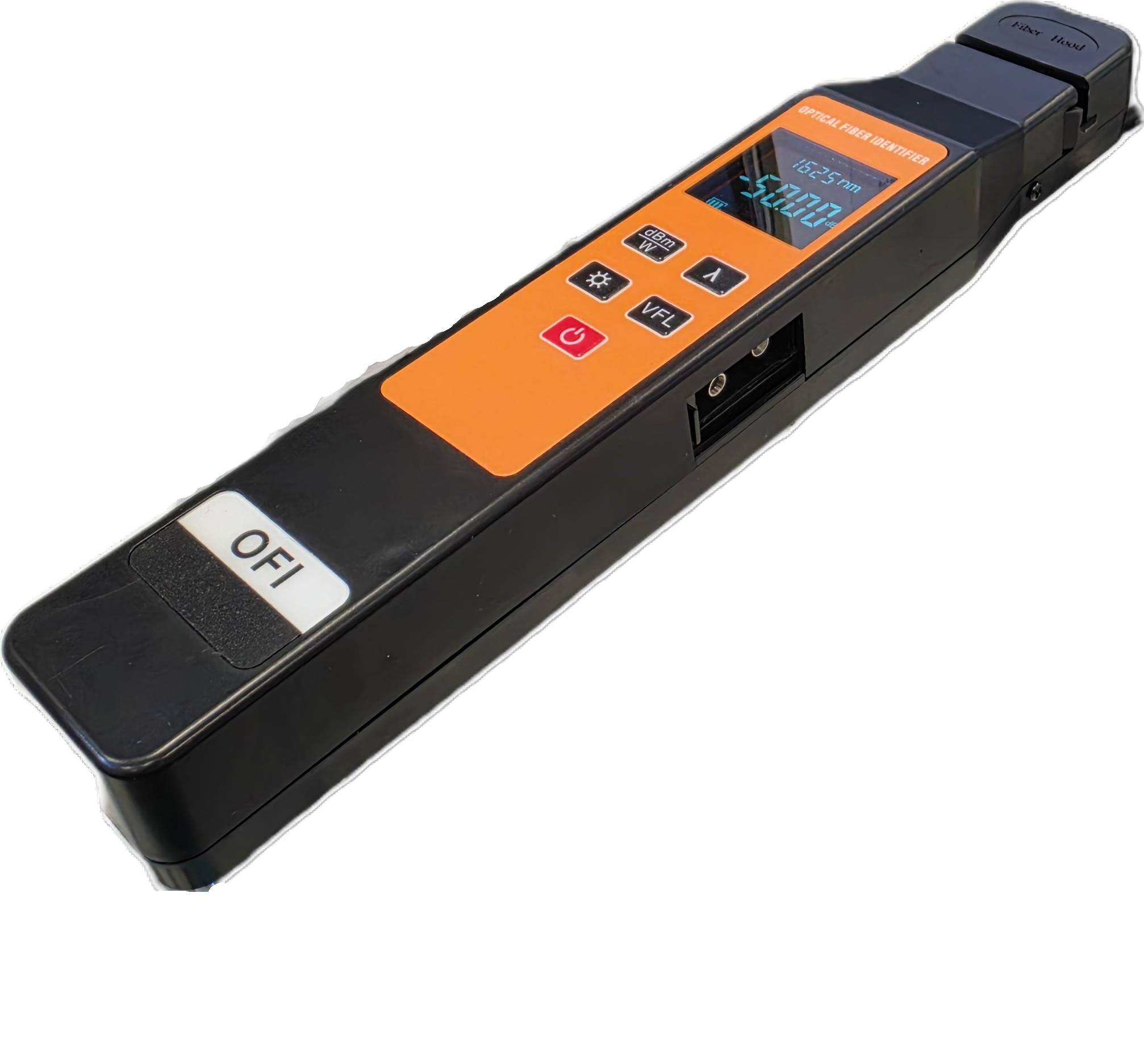

Tucson Optics TC-13 Optical Fiber Identifier

The Tucson Optics TC-13 is a versatile fiber maintenance and installation tool that combines a fiber identifier, an optical power meter (OPM) and a VFL laser for fault location in one device. The TC-13 enables identification of an active fiber without interrupting traffic and allows inspection of the direction and strength of the optical signal in the field.

A metal fiber clamp enables fast and reliable measurement without changing separate adapters. The device detects the direction of active traffic and commonly used 270 Hz, 1 kHz and 2 kHz identification signals.

Features

• Fiber identifier for detecting active optical fibers
• Built-in optical power meter (OPM)
• Built-in 10 mW VFL fault locator
• Metal fiber clamp for precise measurement
• No need to swap adapters
• Displays signal direction and relative power
• Indicates whether the fiber is active or dark
• Detects 270 Hz, 1 kHz and 2 kHz modulation frequencies
• Traffic direction detection
• Low battery indicator

Technical specifications

• Model: TC-13
• Functions: Fiber Identifier, OPM, VFL
• Optical power measurement range: -50 ... +26 dBm
• VFL output power: 10 mW
• Detectable modulations: 270 Hz, 1 kHz, 2 kHz
• Signal direction detection: Yes
• Traffic detection without disconnecting: Yes
• Battery warning: Yes

Note: The integrated VFL function uses a visible red laser. Never look directly into the laser beam or at an active optical fiber.
