Model：

FR5311M

Product Name:

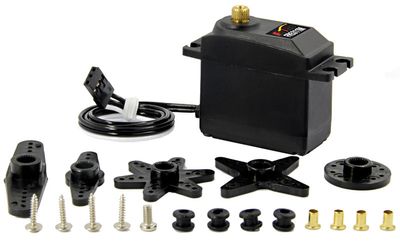

6V 11kg. cm Digital Servo

Storage Temperature Range

-30℃～80℃

Operating Temperature Range:

-15℃～70℃

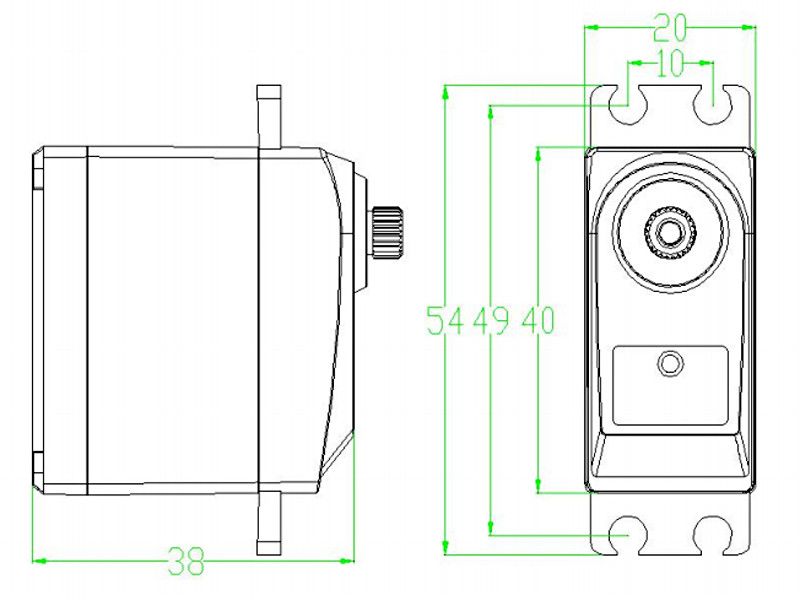

Size:

A：40mm B：20mm C：38mm

Weight:

58g 士0.2 (1.84oz)

Gear type:

Metal Gear

Limit angle:

NO limit

Bearing:

2 Ball bearings

Horn gear spline:

25T

Horn type:

Plastic,POM

Case:

Nylon & Fiberglass

Connector wire:

300mm ±5 mm

Motor:

Metal brushmotor

Operating Voltage Range:

5-6V

Idle current (at stopped)

5mA-6mA

No load speed:

7ORPM@6V

Runnig current(at no load) :

130 mA@6V

Peak stall torque:

14.5kg.cm@6V

Rated torque:

4.8kg.cm@6V

Stall current:

1000mA@6V

Command signal:

Pulse.widthmodification .

Amplifier type

Analog comparator

Pulse width range

500~ 2500usec

Neutral position

1500 μsec

Dead band width

2 μsec

Rotating direction

Counterc lockwise ( when 1000~2000 μsec)
