Feetech FE-EN-001 - IR Encoder Module Speed Counting for Smart Mobile Platform Robot

3,14 €

Temporarily out of stock

Add a comment about the product to my order

Product Description

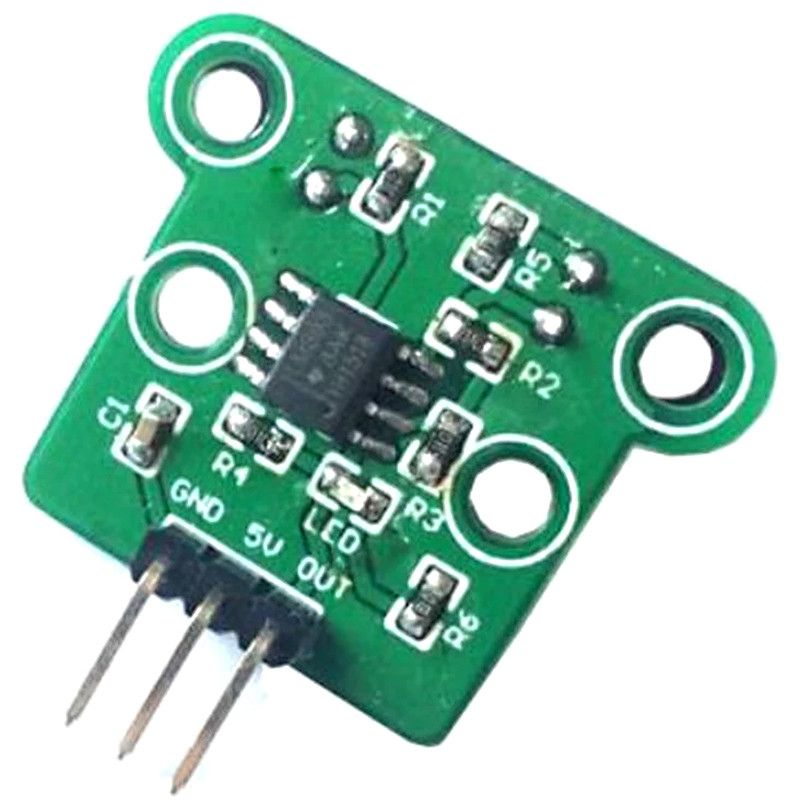

FT-EN-001 IR encoder module
Main use in speed counting for smart mobile platform robot
U type IR Sensor (opaque objects go through, it will touch off) Output 5V TTL level
Use Schmitt trigger, very stable, widely used in speed counting on the smart mobile platform robot
The output pin can be directly connected to the microcontroller IO port. There is an indicator light, easy to operate

Pin 1:GND (0V)

Pin 2:VCC(5V )

Pin 3:OUT(0-5V)

Availability Temporarily out of stock
Manufacturer Feetech
Product path Home Do It Yourself Robotics Robot Electronics Feetech MOTOR PULSE ENCODER MODULE
SKU MOT-FEEN001
Attributes
- Manufacturer's model FE-EN-001
