Feetech CONTINUOUS ROTATION DIGITAL SERVO 6VDC 15Ncm

Name: Feetech CONTINUOUS ROTATION DIGITAL SERVO 6VDC 15Ncm
Brand: Feetech
SKU: SERVO-FT90R
Price: 6.78 EUR
Availability: InStock

Temporarily out of stock

SKU#: SERVO-FT90R

Temporarily out of stock

SKU#: SERVO-FT90R

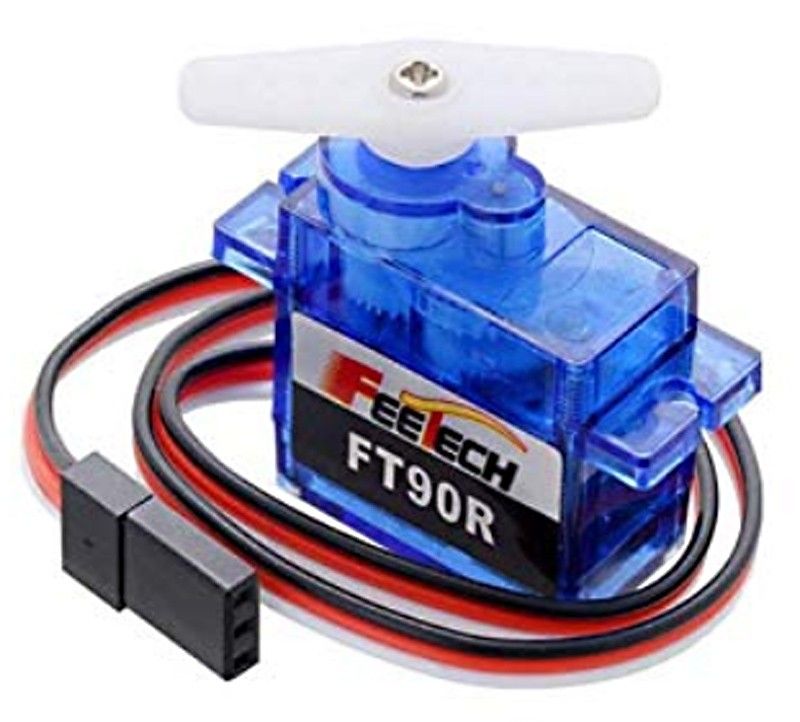

Feetech FT90R - Digital Micro Continuous Rotation Servo

6,78 €

Temporarily out of stock in the online store

Add a comment about the product

Product Description

The greater the PWM control deviation from the neutral point (1,5 ms), the faster it rotates clockwise or counterclockwise.

shaft spline 20T
neutral point: 1500us, deadband ±20us
no-load speed
- 100RPM @6VDC
- 80RPM @4,8VDC
current consumption
- free 120mA @6VDC
- stalled 800mA @6VDC
torque 1,5kg per cm (= 15Ncm) @6V
includes five different adaptors (see additional image)
connector JR, cable 25cm
connection:
- 1. brown = GND
- 2. red = VCC
- 3. orange = servo control signal (PWM)

Included: FT90R micro servo, four horns and one wheel with screws

Availability Temporarily out of stock in the online store
Manufacturer Feetech
Product path Home Components Electromechanical Components Engines Servos Feetech CONTINUOUS ROTATION DIGITAL SERVO 6VDC 15Ncm
SKU SERVO-FT90R
Attributes
- Weight 9g
- Manufacturer's model FT90R

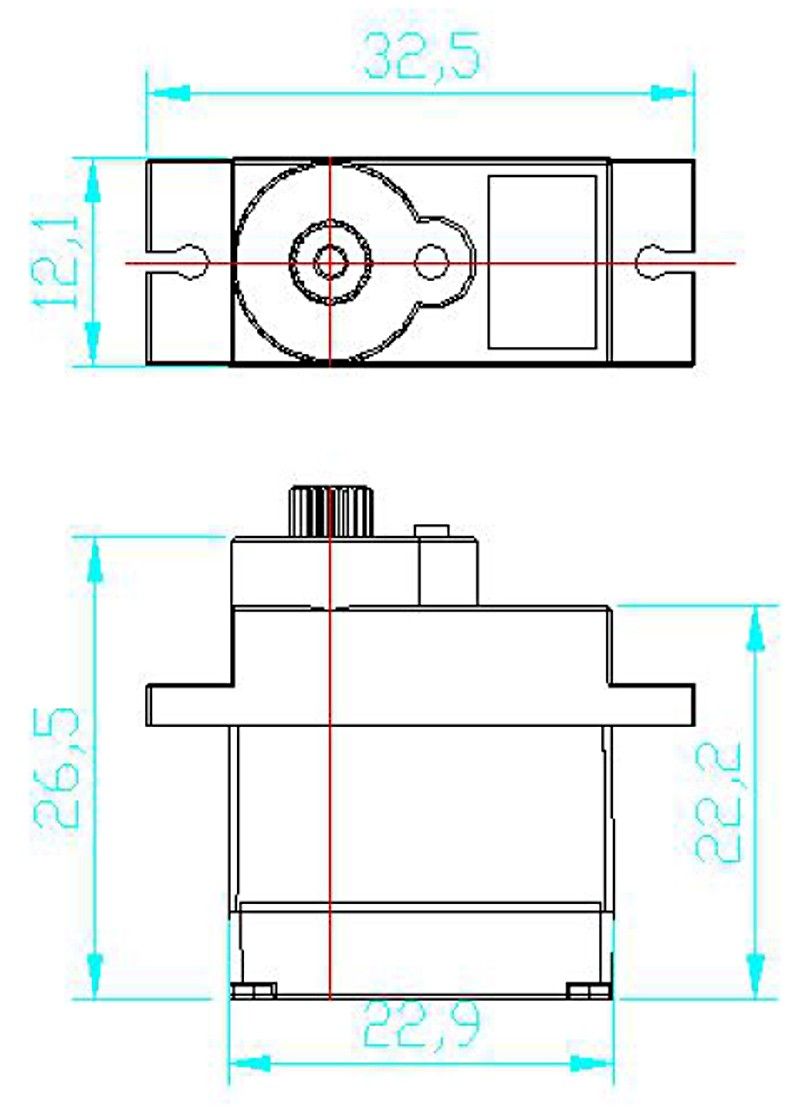

- Dimensions 22.9 x 12.1 x 26.5 mm
