Description:

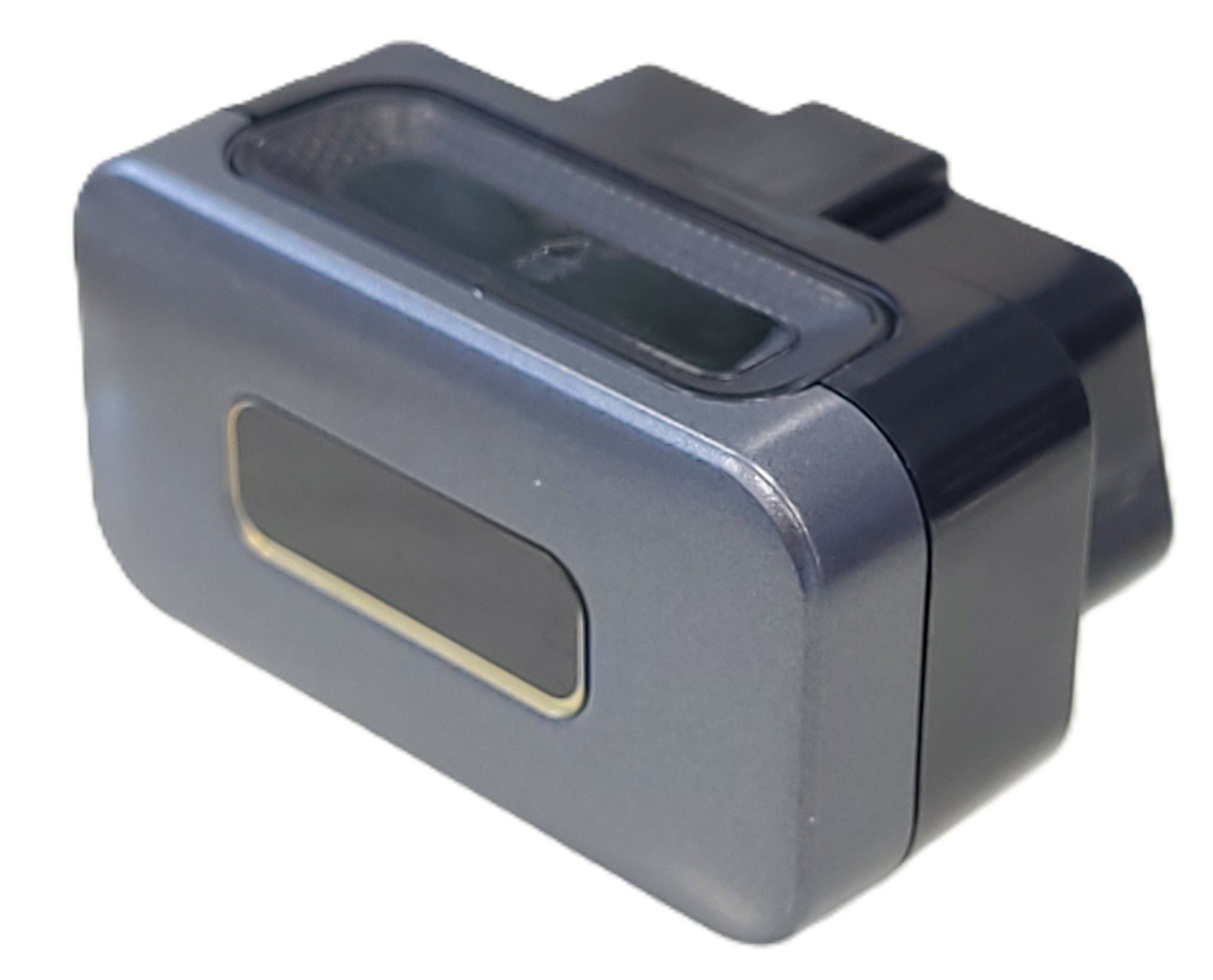

The Fnirsi FD10 diagnostic interface is a versatile tool for wireless OBD2 car diagnostics. It uses a standard connector and is equipped with Bluetooth 5.1 technology, so it can be used with Android and iOS mobile devices. The interface offers a wide range of functions to check engine parameters, log its operation, or read and clear faults:

• Read and clear OBD2 fault codes
• Deactivate the malfunction indicator light
• Monitor operating parameters, e.g. engine RPM, vehicle speed, coolant temperature, or fuel system pressure
• Read parameters in real time
• Measure engine power (hp)
• Battery voltage

The user can communicate with the module using the dedicated YMOBD app. The device is easy to install and use, so even a less experienced user can operate it.

Specifications:

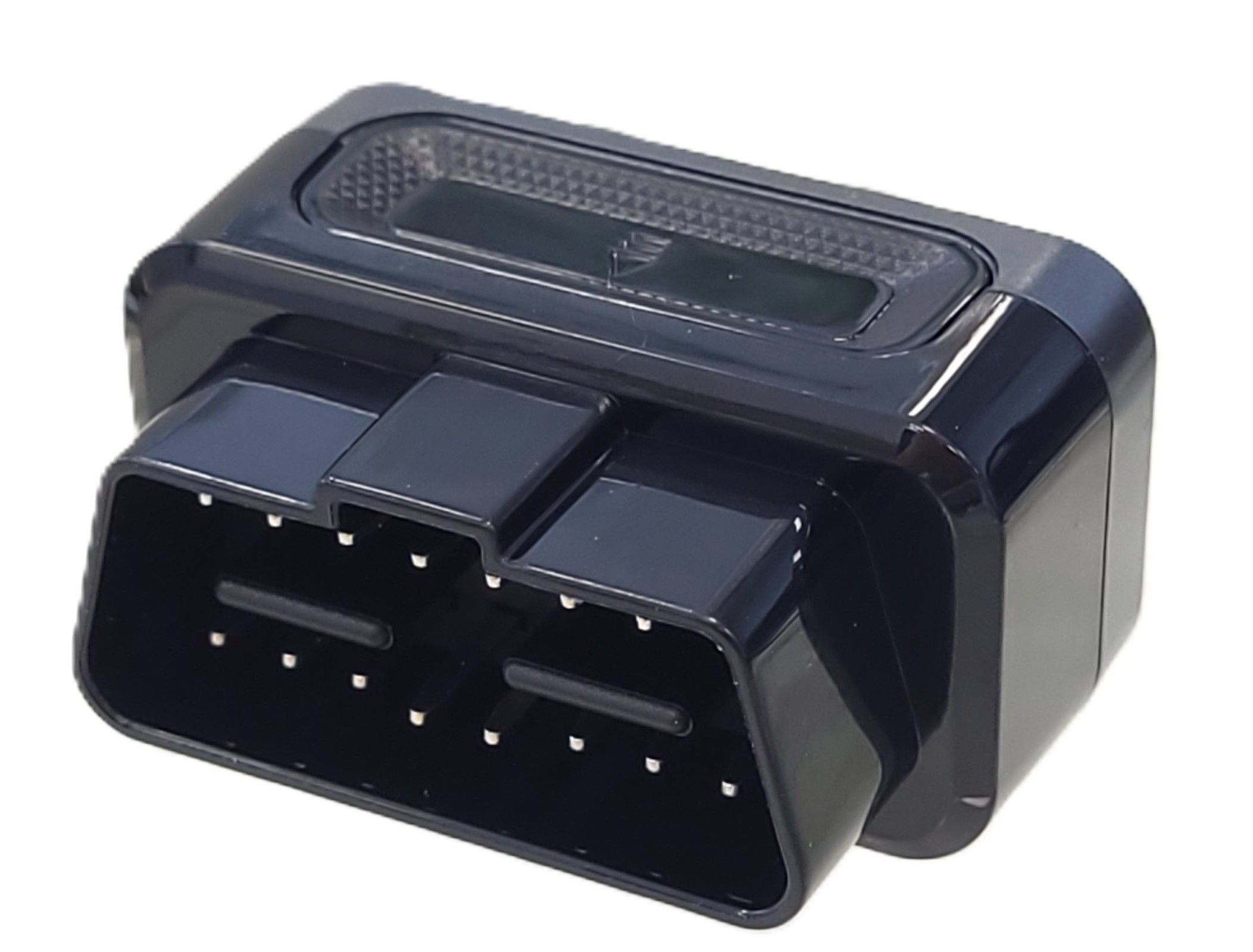

• Connector: OBD2
• Support for CAN, K-Line and L-Line interfaces
• Supported protocols:
• SAE J1850 PWM (41.6 Kbaud)
• SAE J1850 VPW (10.4 Kbaud)
• ISO9141-2 (5 start bits, 10.4 Kbaud)
• ISO14230-4 KWP (5 bits, 10.4 Kbaud)
• ISO14230-4 KWP (fast init, 10.4 Kbaud)
• ISO15765-4 CAN (11-bit ID, 500 Kbaud)
• ISO15765-4 CAN (29-bit ID, 500 Kbaud)
• ISO15765-4 CAN (11-bit ID, 250 Kbaud)
• ISO15765-4 CAN (11-bit ID, 250 Kbaud)
• ISO15765-4 CAN (29-bit ID, 250 Kbaud)
• Data transfer: Bluetooth 5.1
• Operating voltage: 8–28 V
• Dimensions: 49 x 33 x 26 mm
