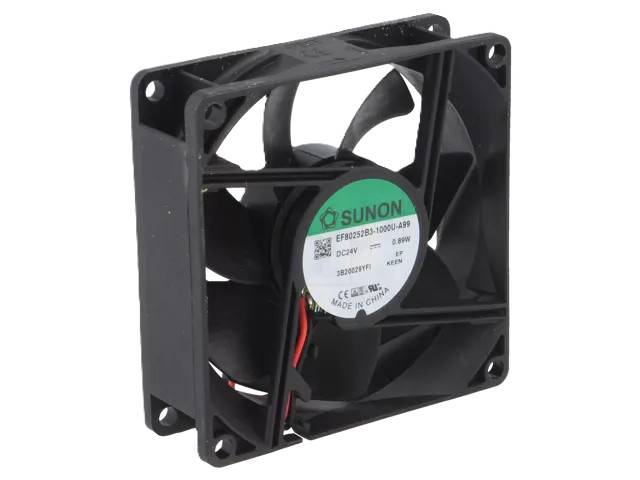

EF80252B3-1000U-A99 is a SUNON 24 VDC axial fan for industrial and electronics applications. The double ball-bearing design, low noise level and automatic restart function ensure reliable operation in continuous use.

• Manufacturer: SUNON
• Manufacturer part number: EF80252B3-1000U-A99
• Fan type: Axial fan (DC)
• Size: 80 × 80 × 25 mm
• Operating voltage: 24 VDC
• Voltage range: 8 ... 27,6 VDC
• Current consumption: 36 mA
• Power: 0,89 W
• Rotational speed: 2600 rpm
• Airflow: 56 m³/h (33 CFM)
• Static pressure: 27,4 Pa
• Noise level: 28 dBA
• Bearing type: Ball bearing
• Connection: 2 wires
• Features: Auto Restart (automatic restart)
• Operating temperature: −10 ... +70 °C
• Housing and blade material: PBT plastic
• Estimated lifetime: 70 000 h @ 40 °C

Suitable for industrial automation, electrical enclosures, power supplies, telecommunications equipment and other applications where a reliable 24 V cooling fan is required.
