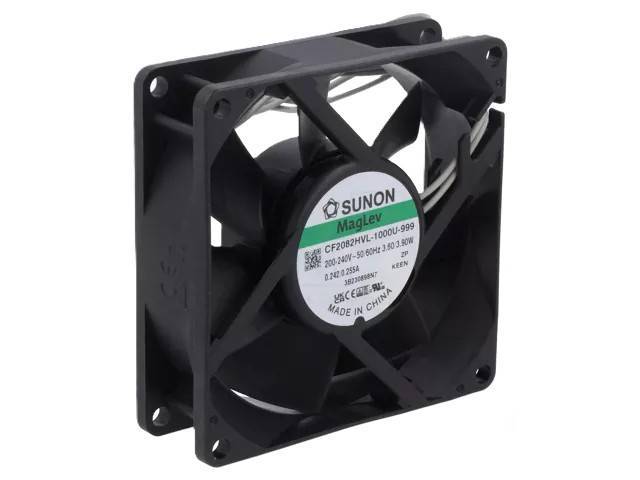

SUNON CF2082HVL-999 EC axial fan 80 x 80 x 25 mm, 230 VAC

The SUNON CF2082HVL-999 is an energy-efficient EC-technology based axial fan for demanding cooling applications. The fan provides good airflow, quiet operation and long service life thanks to SUNON's Vapo bearing technology. It is ideal for electrical cabinets, industrial automation, power supplies, telecommunications equipment and other electronics cooling applications.

Features

• EC axial fan with energy-efficient motor
• Compact size: 80 x 80 x 25 mm
• Rated voltage 230 VAC (220–240 VAC)
• Airflow up to 68 m³/h
• Low noise level, approx. 32 dBA
• Vapo bearing for long service life
• Two wire ends for easy connection
• Low power consumption

Technical specifications

• Manufacturer: SUNON
• Product series: ECO
• Manufacturer part: CF2082HVL-1000U-999
• TME code: CF2082HVL-999
• Fan type: EC axial fan
• Dimensions: 80 x 80 x 25 mm
• Operating voltage: 230 VAC
• Voltage range: 220–240 VAC
• Current consumption: 0,17 A
• Power consumption: 3,2 W
• Rotation speed: 3100 rpm
• Airflow: 68,03 m³/h
• Noise level: 32 dBA
• Bearing: Vapo Bearing
• Connection: 2 wires

Applications

• Electrical and automation cabinets
• Industrial equipment
• Power supplies and UPS systems
• Telecommunication and network equipment
• Electronic enclosures and control systems
