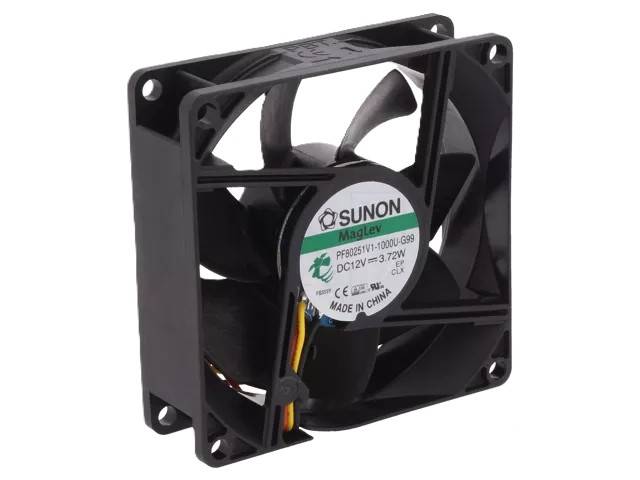

SUNON PF80251V1-1000U-G99 80 × 80 × 25 mm 12 VDC axial fan, tach output

SUNON PF80251V1-1000U-G99 is a high-performance 80 x 80 x 25 mm brushless DC axial fan for demanding cooling applications. The fan operates at 12 VDC and produces up to 60 CFM (1,68 m³/min) airflow. The MagLev® and Vapo-bearing design ensures long service life, quiet operation and high reliability in continuous-use systems.

Features

• Dimensions: 80 × 80 × 25 mm
• Operating voltage: 12 VDC
• Airflow: 60 CFM (1,68 m³/min)
• Speed: 4800 rpm
• Power consumption: 3,72 W
• Current: 0,31 A
• Noise level: 44,7 dBA
• Vapo-bearing bearing
• 3-wire connection
• Tach output (speed signal)
• Automatic restart function
• Brushless DC motor

Applications

• Industrial electronics
• Telecommunications and networking equipment
• Power supplies and UPS systems
• Servers and computers
• Control and automation cabinets

Technical specifications

• Manufacturer: SUNON
• Part number: PF80251V1-1000U-G99
• Fan type: Axial DC fan
• Bearing type: Vapo Bearing
• Speed signal: Yes (FG/Tach)
• Operating temperature: -10 ... +70 °C
• Protection features: Automatic restart, polarity protection
