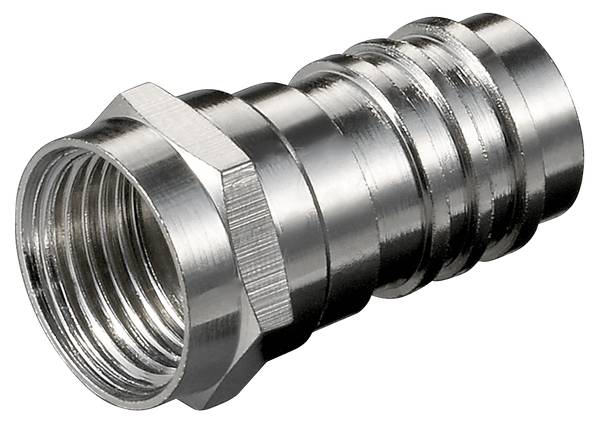

GOOBAY 11861 F connector (crimp) Ø7 mm for coaxial cable

GOOBAY 11861 is a high-quality crimp-type F connector for professional termination of coaxial cables. The connector is especially suitable for satellite, antenna and cable network use where reliable signal transmission and good shielding are required.

Key features

• F connector for coaxial cable (SAT / TV / data)
• Crimp attachment – secure mechanical and electrical connection
• Suitable for cables with an outer diameter of approx. 7 mm
• Dielectric diameter max. approx. 4 mm
• Good signal shielding and low loss
• Compact and durable construction

Technical specifications

• Type: F plug
• Installation: Crimp (requires crimping pliers)
• Material: copper / nickel
• Length: approx. 21 mm
• Cable diameter: ~7 mm
• RoHS compliant

Applications

• Satellite receivers (DVB-S)
• TV and antenna networks
• Cable modems and broadband connections
• Professional termination of coaxial cables
