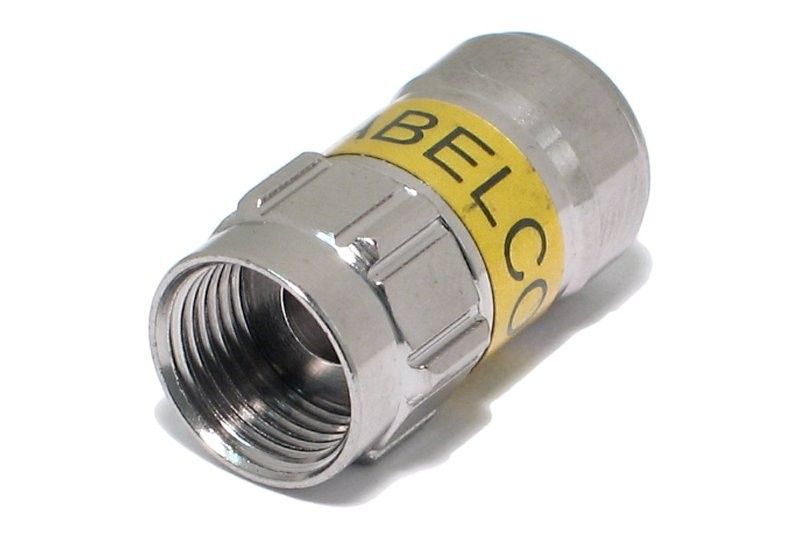

Installation of this connector type is fast, easy and reliable. With proper stripping the connector can be pressed into place. And it won’t come off.

• bandwidth: 3GHz
• impedance: 75ohm
• connection pull strength 200N
• suitable for most RG59-type coaxial cables

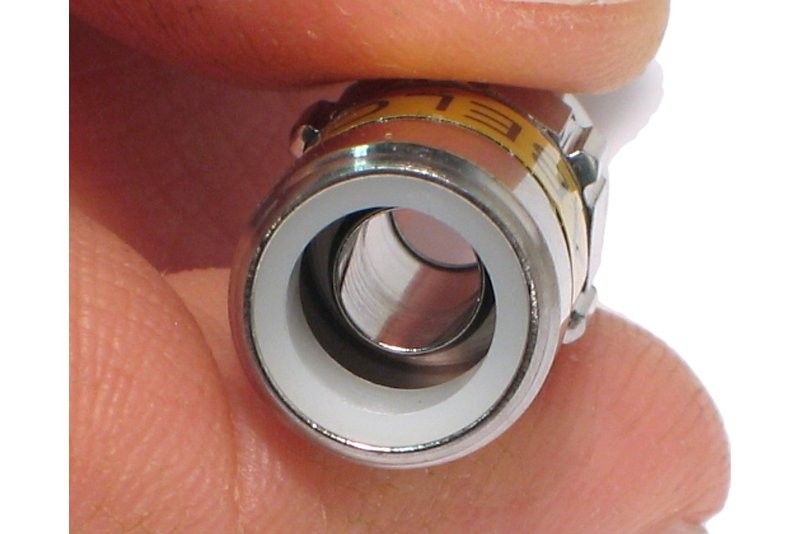

• the cable's centre dielectric should be approx. 3.9 mm in diameter (outer ø 5.7...6.2 mm)

See our suitable selection of antenna cables below.
