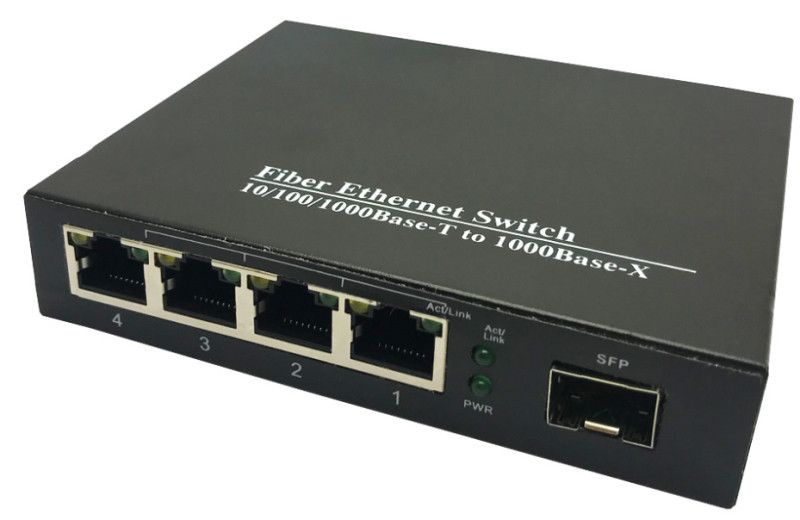

This SFP to Ethernet Switch makes transmission between UTP Copper cables and Slot SFP (Small Form-Factor Plug-gable) transceivers. It is designed to meet the massive needs for Ethernet network deployment and able to extend a copper based network via Slot cable to a maximum distance up to 120km. It can be installed into a Standard Converter Chassis. The installation & operation procedures are simple & straight forward. Operation status can be locally monitored through a set of Diagnostic LED located in the front panel.

Features

• In conformity to IEEE802.3 10base-T, IEEE802.3u 100 base-TX/FX, IEEE802.3ab 1000 base-T,IEEE802.3z,1000base-SX/LX, IEEE802.1a, IEEE802.1PQ0S, IEEE802.1d Spanning Tree.
• Hot Pluggable & Wall-Mountable.
• Stable performance more than 50thousand hours with fault-free.
• Unique IC solution applied.
• Supports 10/100Mbps and 10/100/1000M full/half duplex, easy upgrades.
• Optional function: VLAN 802.1Q
• Auto MDI/MDI-X.
• Auto Negotiation.
• Support flow control.
• Stable performance more than 50 thousands hours with fault-free.
• Interface: RJ-45 connector / SFP Slot
• In conformity with safety code of FCC, CE and RoHS.

Applications

• Extend your Ethernet connection up to 0~120km away using Slot optics
• Creates an economical Ethernet-Slot/copper-Slot link for connecting remote sub-networks to largerSlot optic networks/backbones
• Converts Ethernet to Slot, Slot to copper/Ethernet, ensuring optimum network scalability forconnecting two or more Ethernet network  nodes (e.g. connecting two buildings on the same campus)
• Designed to provide high-speed bandwidth for demanding large scale work groups that requireexpansion of Gigabit Ethernet Network.

Delivery contents

• BT-914SFP-GE kytkin
• EU seinäadapteri

Note! See compatible SPF transceivers below
