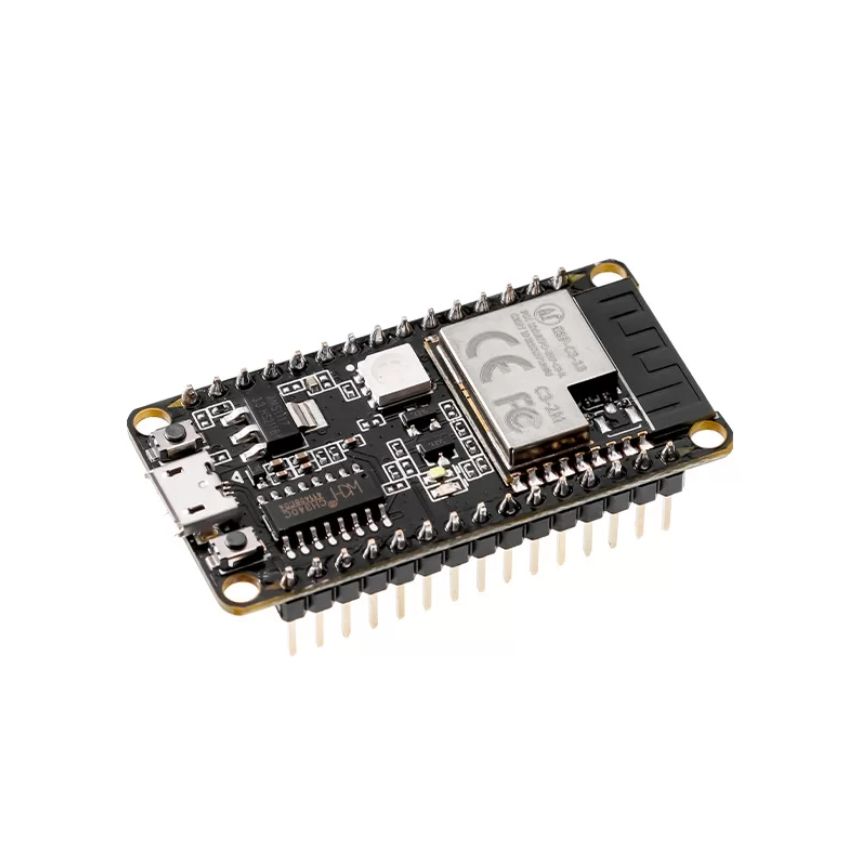

Equipped with a RISC-V 32-bit single-core processor, ESP-C3-13 is a highly integrated low-power Wi-Fi and Bluetooth system-on-chip (SoC). The ESP-C3-13 development board is a core development board designed with the ESP-C3-13 chip. This development board continues the classic design of the NodeMCU development board, leading all I/O to the pin headers on both sides, and developing Users who can connect peripherals according to their needs. It has industry-leading low power consumption performance and radio frequency performance supports Wi-Fi IEEE802.11b/g/n protocol and BLE 5.0, supports secondary development. It is designed for the Internet of Things (IoT), mobile devices, wearable electronic devices, and various applications such as the smart home.

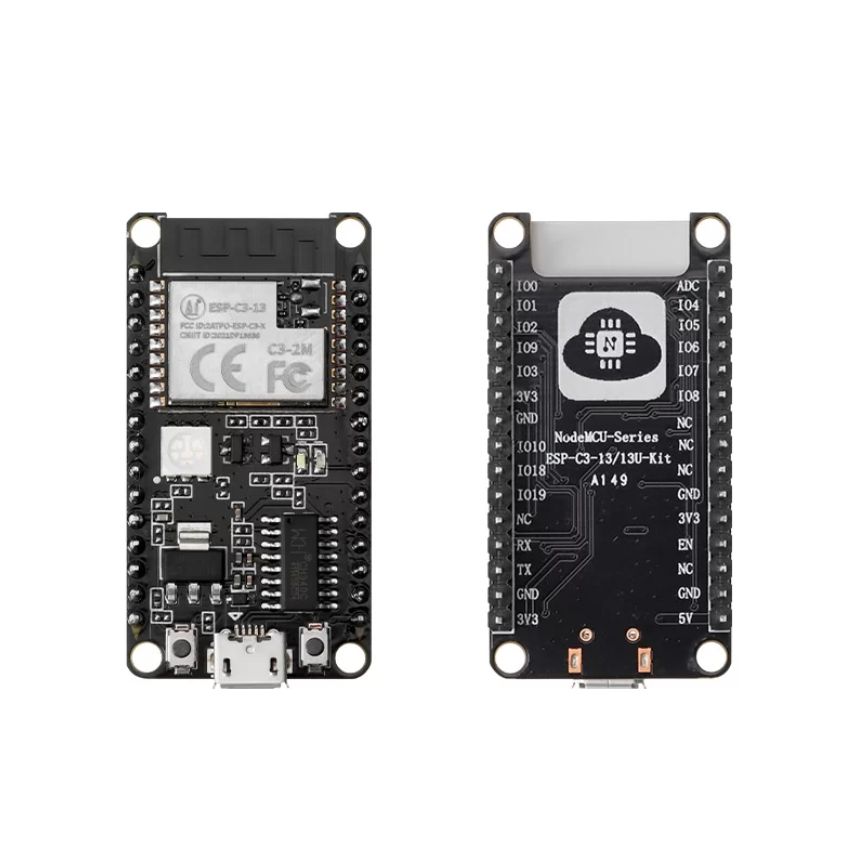

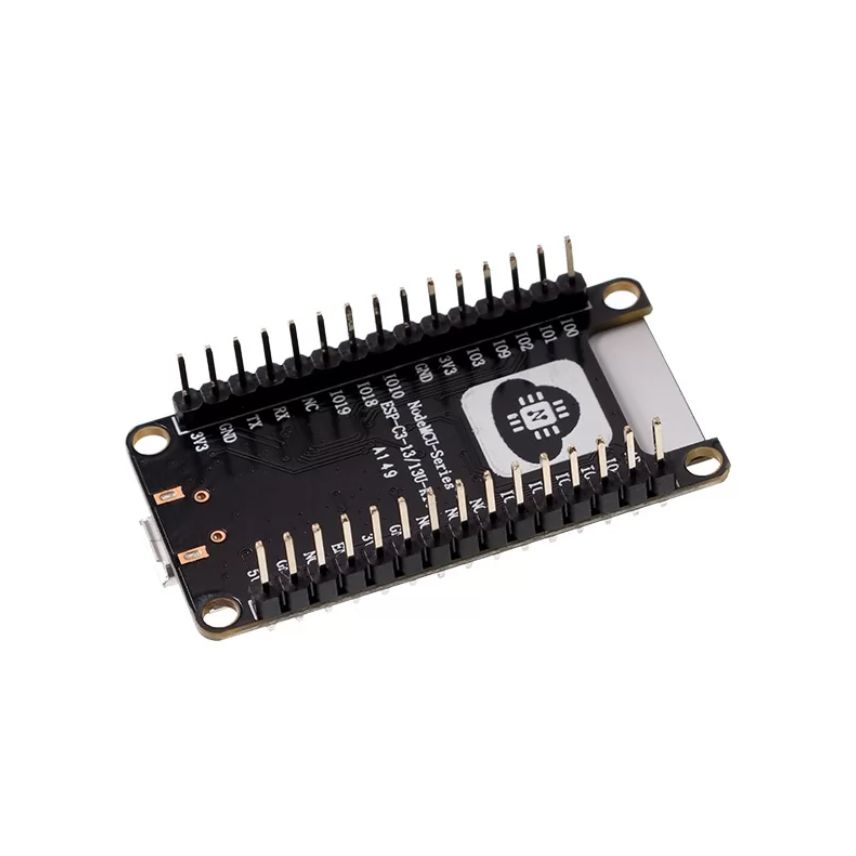

Pin Description

Feature

• Industry-leading low power consumption performance and radio frequency performance, support Wi-Fi IEEE802.11b/g/n protocol and BLE 5.0. Does not support classic Bluetooth
• Equipped with RISC-V 32-bit single-core processor, the operating frequency is up to 160 MHz with 400 KB SRAM, 384 KB ROM, 8KB RTC SRAM n n
• Support secondary development without using other microcontrollers or processors
• The chip has built-in 400 KB SRAM, 384 KB ROM, 8KB RTC SRAM, built-in 4MB Flash and also supports external Flash
• The chip supports a variety of low-power working states, which can meet the power consumption requirements of various application scenarios
• ESP-C3-13 module provides rich peripheral interfaces, including UART, PWM, SPI, I2S, I2C, ADC, temperature sensor and up to 15 GPIOs
• Support Wi-Fi 802.11b/g/n, 1T1R mode data rate up to 150Mbps, support BLE5.0, does not support classic Bluetooth, rate support: 125Kbps, 500Kbps, 1Mbps, 2Mbpsn
• Support multiple sleep modes, deep sleep current is less than 5uA n
• Serial port rate up to 5Mbps n
• Support STA/AP/STA+AP mode and promiscuous mode n
• Support Android and IOS Smart Config (APP)/AirKiss (WeChat) one-click network distribution
• Support serial port local upgrade and remote firmware upgrade (FOTA) n
• General AT commands can be used quickly n
• Support secondary development, integrated Windows, Linux development environment n

Specification

• Model: ESP-C3-13-Kit
• Dimensions (main control module): 20*18*3.1mm
• Antenna form: Compatible with onboard PCB antenna/IPEX socket
• Spectrum range: 2400~2483.5Mhz
• Operating temperature：-40℃~85℃
• Power supply range: Supply voltage 5v, supply current > 500mA
• Support interface: UART/GPIO/ADC/PWM/I2C/I2S
• General IO port: IO0,IO1,IO2,IO3,IO4,IO5,IO6,IO7,IO8IO9,IO10,IO18,IO19,IO20,IO21
• Serial speed: Support 110~4608000bps, default 115200bps
• Bluetooth: Bluetooth 5.0
• Safety: WEP/WPA-PSK/WPA2-PSK
• SPI Flash: Default configuration is 4MByte, supports 2MByte version
• Wiring of onboard lights: IO5 is connected to RGB blue LED; IO3 is connected to RGB red LED; IO4 is connected to RGB green LED; IO19 is connected to cool color LED; IO18 is connected to warm color LED (active high)

Package List

• 1x ESP-C3-13-Kit with solder pin

Wiki & External link

• Schematic Diagram
• Specification
