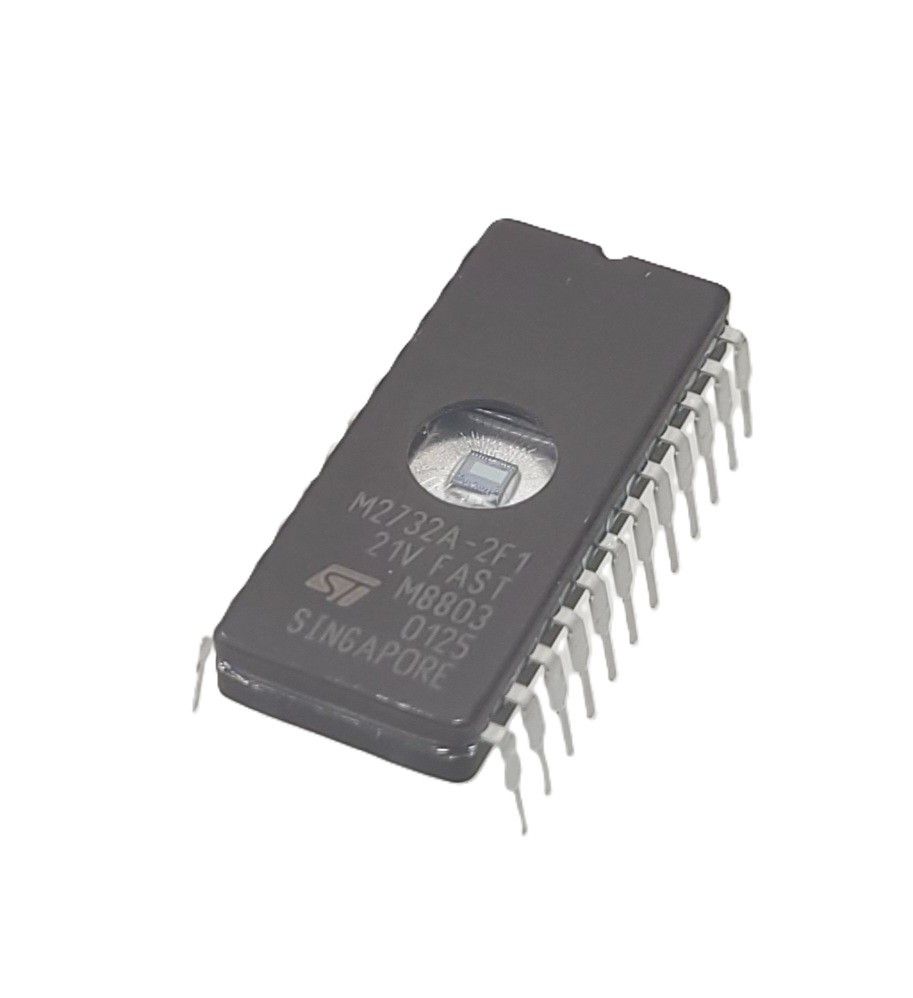

Overview

• Type: UV-erasable and electrically programmable memory (EPROM)
• Organization: 32,768 bits (4,096 words × 8 bits)
• Package: 24-pin ceramic dual in-line package (CDIP24) with a transparent window for UV erasure

Electrical characteristics

• Access time: 200 ns (FAST)
• Operating voltage (Vcc): 5 V
• Programming voltage (Vpp): 21 V
• Standby current: up to 35 mA
• Input/output: TTL-compatible during read and programming
• Operation: fully static
