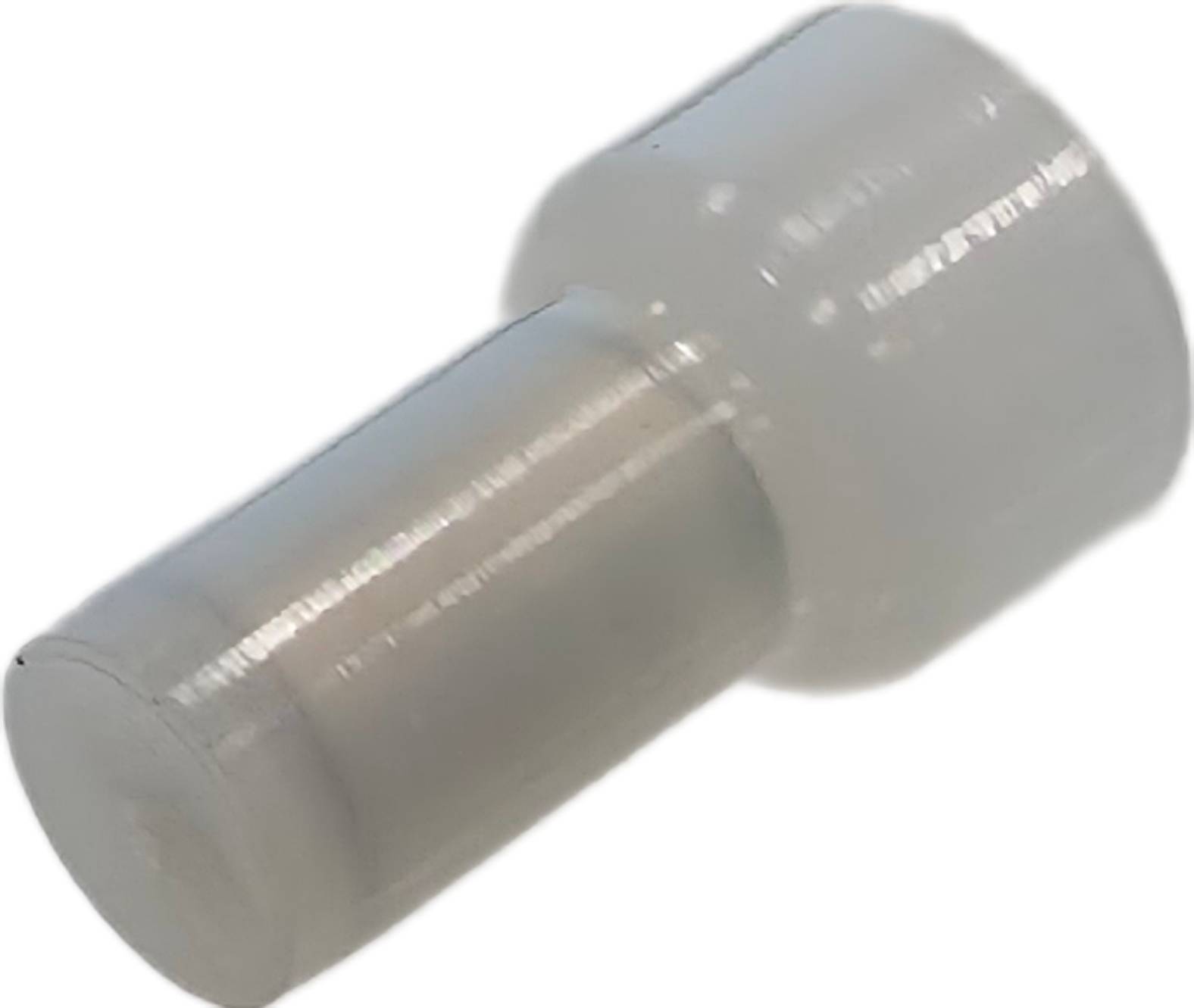

Elpress A2500E fully insulated bootlace ferrule 1–3 mm²

Elpress A2500E is a fully insulated bootlace ferrule for 1–3 mm² copper conductors. The ferrule is made of tinned copper and fitted with a halogen-free polyamide (PA) insulation. The easy-entry design facilitates conductor insertion.

Technical specifications

• Conductor cross-section: 1–3 mm²
• AWG: 18–13
• Material: tinned copper (Cu/Sn)
• Insulation: polyamide (PA)
• Insulation colour: transparent
• Halogen-free: yes
• Easy-entry: yes
• Total length: 15.2 mm
• Strip length: 8 mm
• Diameter: 6.4 mm
• Recommended crimping tool: Elpress GSA0760

Manufacturer: Elpress
Product number: 7286-500400
EAN: 7393487004764
