Electronic housing - RPI-BC 107,6 DEV-KIT KMGY - 2202874
Temporarily out of stock
SKU#: PC-2202874
Electronic housing - RPI-BC 107,6 DEV-KIT KMGY - 2202874
Temporarily out of stock
SKU#: PC-2202874

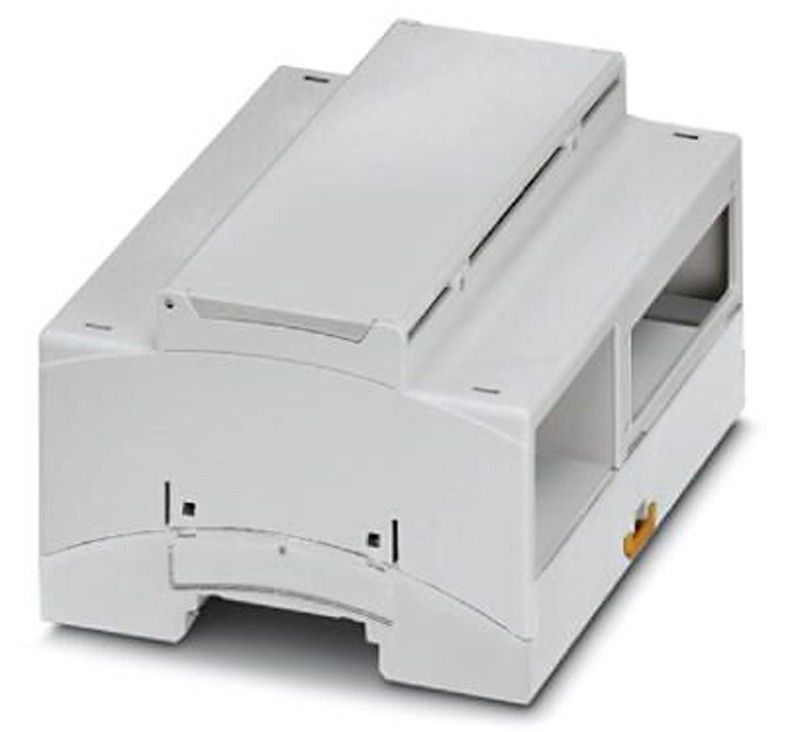

DIN rail housing for Raspberry Pi computers (suitable for Raspberry Pi A+, B+, B2, B3, B4); set consisting of lower part, upper part, cover, and PCB retainer; housing according to DIN 43880
21,49 €
Temporarily out of stock in the online store
Product Description
Benefits
- Tool-free mounting
- Plenty of space for additional circuits on matrix or additional boards
- GPIO strip can be used with PTSM series connection technology
- Easy module-to-module connection, thanks to bus connection via DIN rails
Item properties
| Brief article description | Electronic housing |
|---|---|
| Type | RPI-BC 107,6 DEV-KIT KMGY |
| Order No. | 2202874 |
| Housing type | DIN rail housing |
| Type | Housing set |
| Max. IP code to attain | IP20 |
| Mounting type | Snap in |
Dimensions

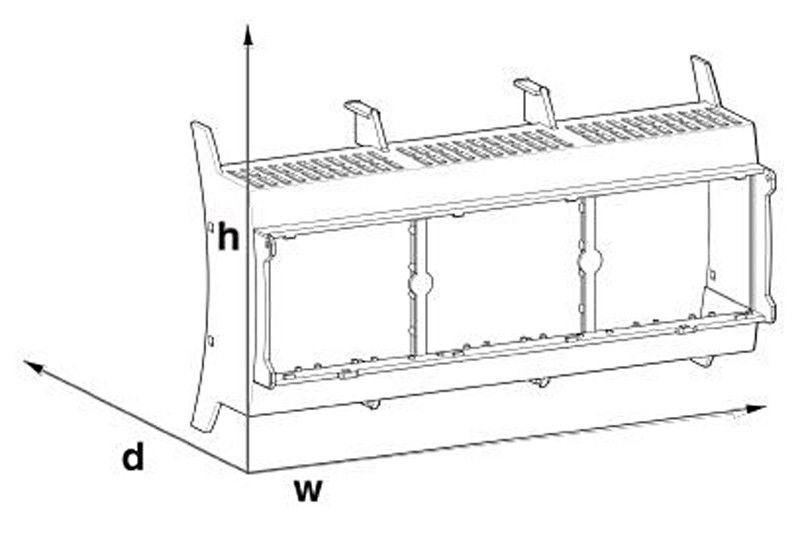

| Dimensional drawing |
 |
|---|---|
| Width [ w ] | 107.6 mm |
| Height [ h ] | 89.7 mm |
| Depth [ d ] | 62.2 mm |
Material data
| Color (RAL) | light gray (7035) |
|---|---|
| Flammability rating according to UL 94 | V0 |
Ambient conditions
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
|---|---|
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Ambient temperature (operation) | -40 °C ... 105 °C (depending on power dissipation) |
PCB data
| Form factor | Raspberry Pi |
|---|
Product Information
- Availability Temporarily out of stock in the online store
- Manufacturer Phoenix Contact
- EAN 4055626257211
- Product path Home Development CardsRaspberry PiRaspberry Pi cases Electronic housing - RPI-BC 107,6 DEV-KIT KMGY - 2202874
- SKU PC-2202874
- Attributes
- Color harmaa
- Compatible Raspberry Pi 4
- IP protection class IP20
- Weight 119.4g
- Manufacturer's model RPI-BC 107.6 DEV-KIT KMGY
- Click for more details https://www.phoenixcontact.com/en/products/2202874
- Dimensions 107.6 x 89.7 x 62.2 mm
