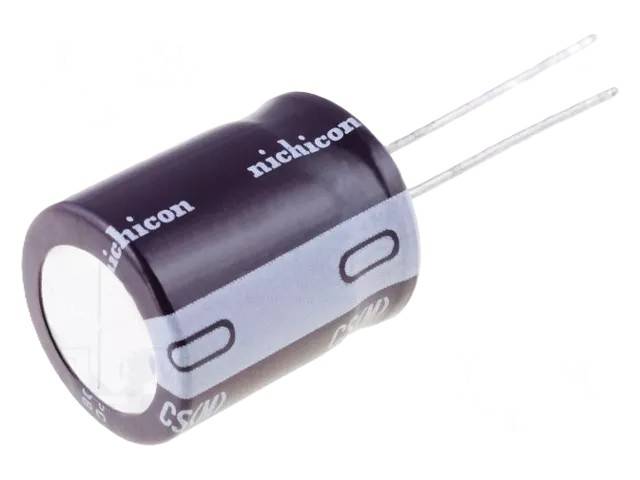

Nichicon UCS2E221MHD 220 µF 250 V electrolytic capacitor

The Nichicon UCS2E221MHD is a long-life, high ripple current aluminum electrolytic capacitor. The UCS series is especially suitable for power supplies and other demanding electronic applications.

Technical specifications

• Manufacturer: Nichicon
• Manufacturer part number: UCS2E221MHD
• Capacitance: 220 µF
• Rated voltage: 250 V DC
• Tolerance: ±20 %
• Operating temperature: -40...+105 °C
• Lifetime: 10 000 h / +105 °C
• Ripple current: 3,13 A / 100 kHz
• Diameter: 18 mm
• Length: approximately 31 mm
• Lead spacing: 7,5 mm
• Mounting: THT, radial
• Polarized
• Series: UCS

Features

• Long service life
• High ripple current capability
• Compact construction
• Suitable for power supply use
