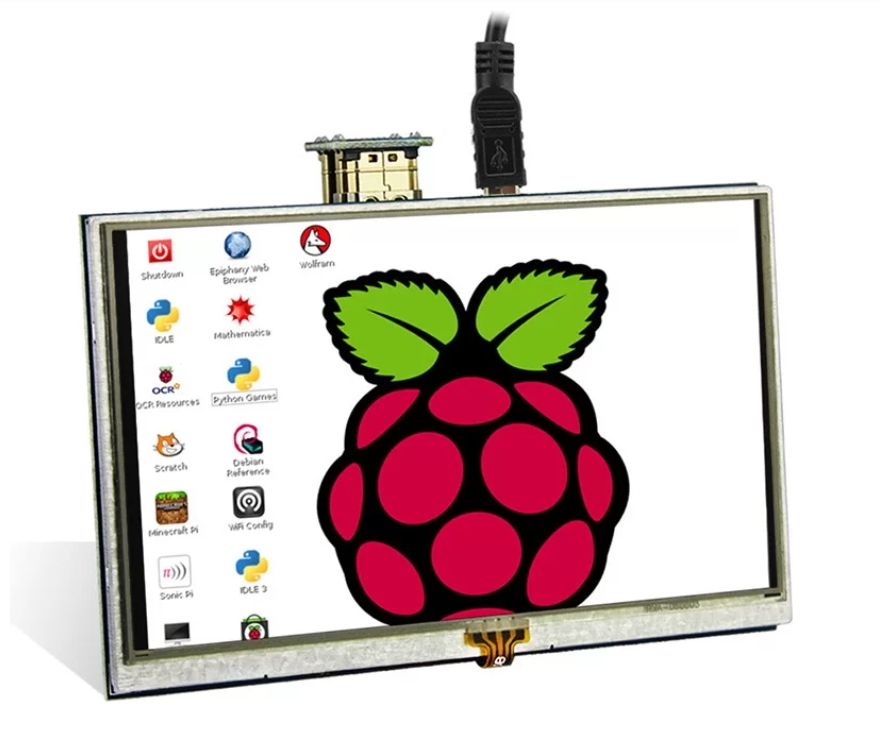

Now we have this 5-inch TFT display with a touch screen that can provide a high-resolution picture and a large viewing screen for your Raspberry Pi. The display supports any revision of Raspberry Pi and works perfectly for Raspberry Pi B+/ 2B/ 3B. It is the low power consumption for the backlight of the screen. The high 800 x 480 resolution can give you a full-color experience, the touch screen allows users to play easily.

Although the 800 x 480 common HDMI display is designed for Raspberry Pi, you can use it in other were not only for Raspberry Pi.

*When working with Raspberry Pi 4, for the system image of Raspberry Pi after 2021-10-30, for example on Bullseye, please modify "dtoverlay = vc4-kms-v3d" to "dtoverlay = vc4-fkms-v3d" in the config file, otherwise it may fail to start. But on Buster, please comment out "dtoverlay = vc4-fkms-V3D" by adding #.

Features

• 5-inch HDMI display monitor with high-resolution picture and large viewing screen.
• Resolution: 800x480 LCD Display with touch function, 5 inches, backlight control to lower power consumption.
• Large viewing angle, fast response time, full-color display. Could provide the driver for Raspberry Pi 2B B+ Raspberry Pi 3B.
• Supports any revision of Raspberry Pi and works perfectly for Raspberry Pi B+/2B/3B/4B.

Specifications

• Model: RR050
• Resolution: 800 x 480
• USB cable for 5V/ 1A power
• Lcd driver IC: ILI9486L
• Refresh rate：60HZ
• Apprearance Size：121mm*78mm
• Screen Size：119mm*66mm

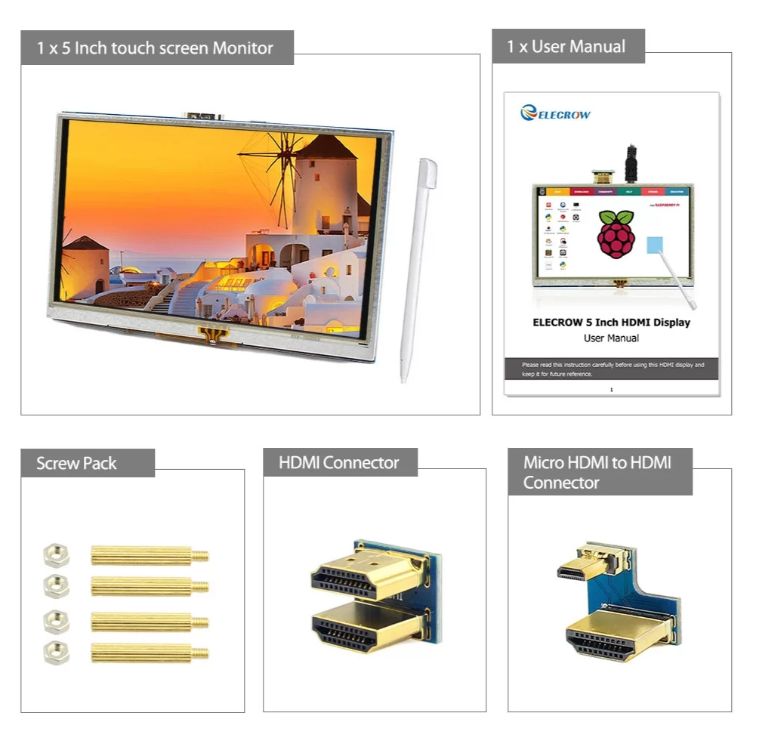

Package contents

• 5 inch Touch LCD Display x1
• HDMI connector x2
• Touch pen x1
• DVD x1
• Screw Pack x1

Useful links

• Elecrow Wiki link (User manual)
• Datasheet
• How to install the Image with LCD driver
• How to install the LCD driver
