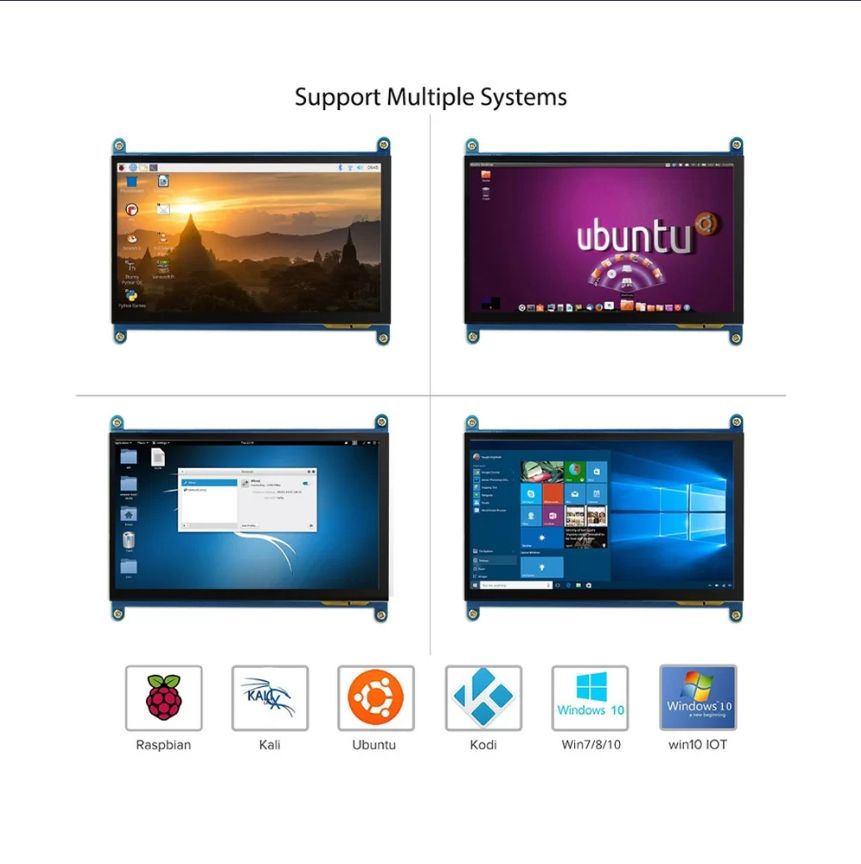

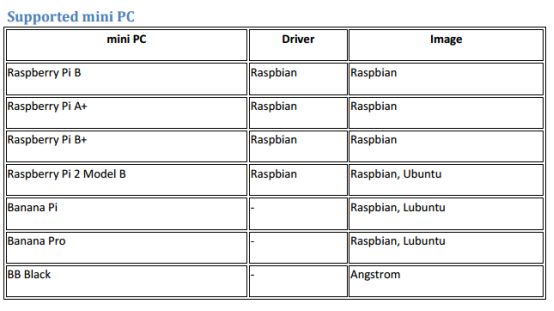

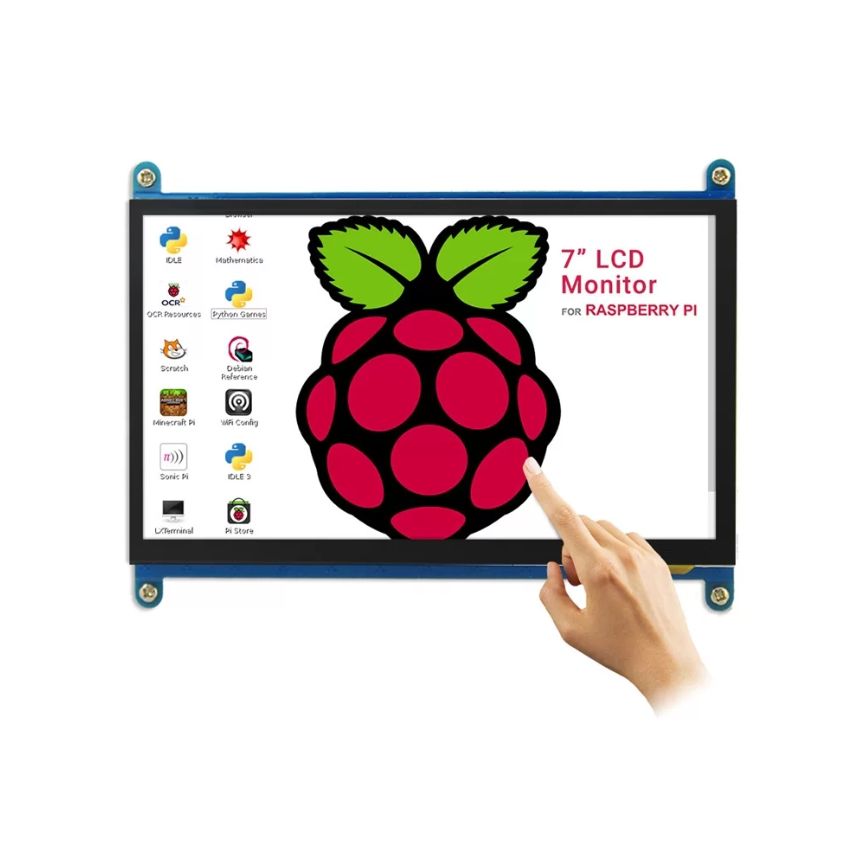

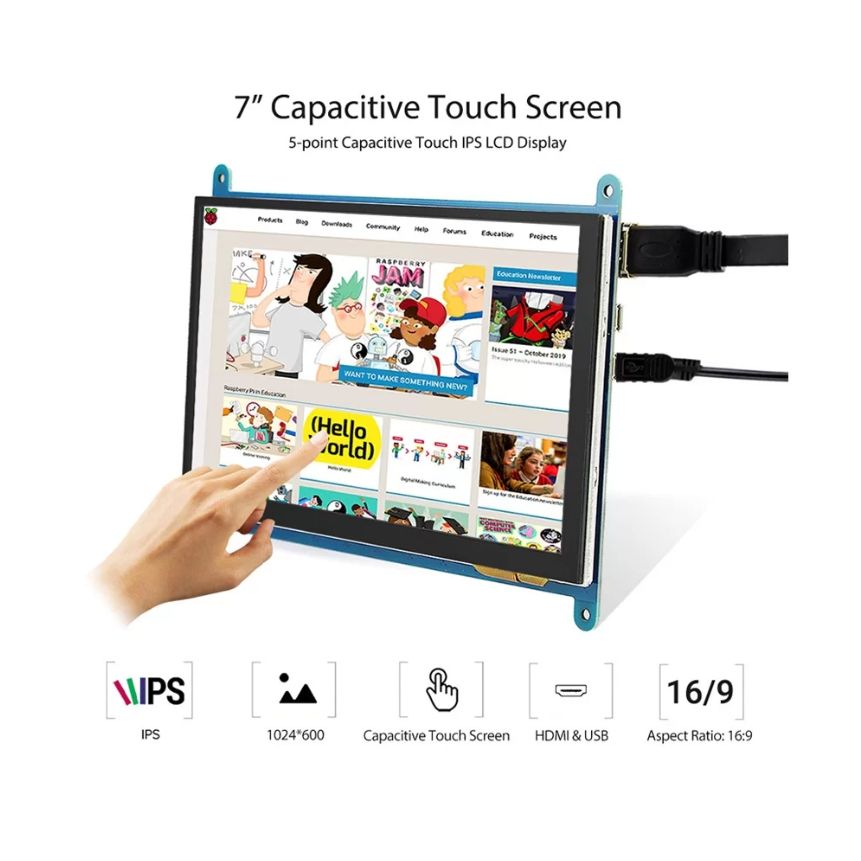

7inch HDMI LCD(C) supports various systems like Raspberry Pi, Banana Pi, Banana Pro, and BB Black to provide Lubuntu, Raspbian, and Angstrom images with a high resolution of 1024×600 and a Capacitive Touch Screen. Besides, it upgrades to an IPS screen with a larger visible angle and more clear display effect. Broadly you can apply it to raspberry pi, HDMI display screen, and other mini PC or even computer displays. If you gonna use it on raspberry pi zero and BB Black, you need to buy HDMI connect wire for the use and for raspberry pi zero you also need to buy A USB type A micro cable. Matched with raspberry pi, it supports raspbian, ubuntu to do single touch without touch, and while as A PC display, it supports Windows 10 / 8.1 / 8 / 7 to do the five-point touch without drive. For the Windows 10/8.1/8 OS, the touch screen supports multi-touch up to 10 points. For some Windows 7 OS, the touch screen supports single touch only. When working with Raspberry Pi, you should set the resolution of the LCD by yourself, or else the LCD screen will not work. When working with Beagle bone, this LCD module is used for display only so you can program the latest Angstrom image file to the board directly without any change. The BeagleBone will read the display parameters of the 7-inch HDMI displayer and set the resolution to 800*480 automatically.
*When working with Raspberry Pi 4, for the system image of Raspberry Pi after 2021-10-30, for example on Bullseye, please modify "dtoverlay = vc4-kms-v3d" to "dtoverlay = vc4-fkms-v3d" in the config file, otherwise it may fail to start. But on Buster, please comment out "dtoverlay = vc4-fkms-V3D" by adding #.
Note:
1. Drivers can be added to your current system to support LCD display and touch control
2. Images CAN NOT be used with your current system. They're stand-alone systems that support LCD display and touch control already.
3. If the LCD is intended to play videos, please choose the one with HDMI display interface
4. All the driver and related image files have been included in the DVD.
[img-26282-left-desc_default]
Specifications
- Appearance Size: 164*124*14.4mm
- Screen Size: 155*88.5mm

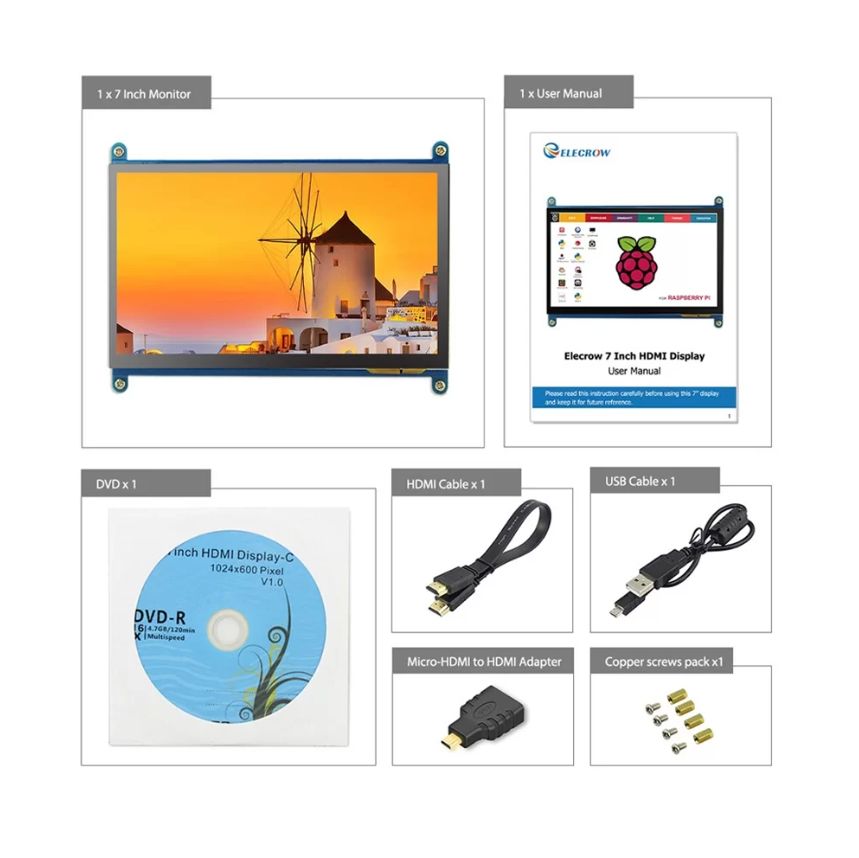

Package contents
- Model: RC070
- 7inch HDMI LCD (C)× 1
- HDMI cable x 1
- Micro USB cable x 1
- Copper pillar kit x 1
- DVD x 1
