Note! This display includes mounting pieces and adapters for the Raspberry Pi 4 Model B. The Raspi is attached to the back of the display. In addition, a fan with its own power supply for the Raspi.

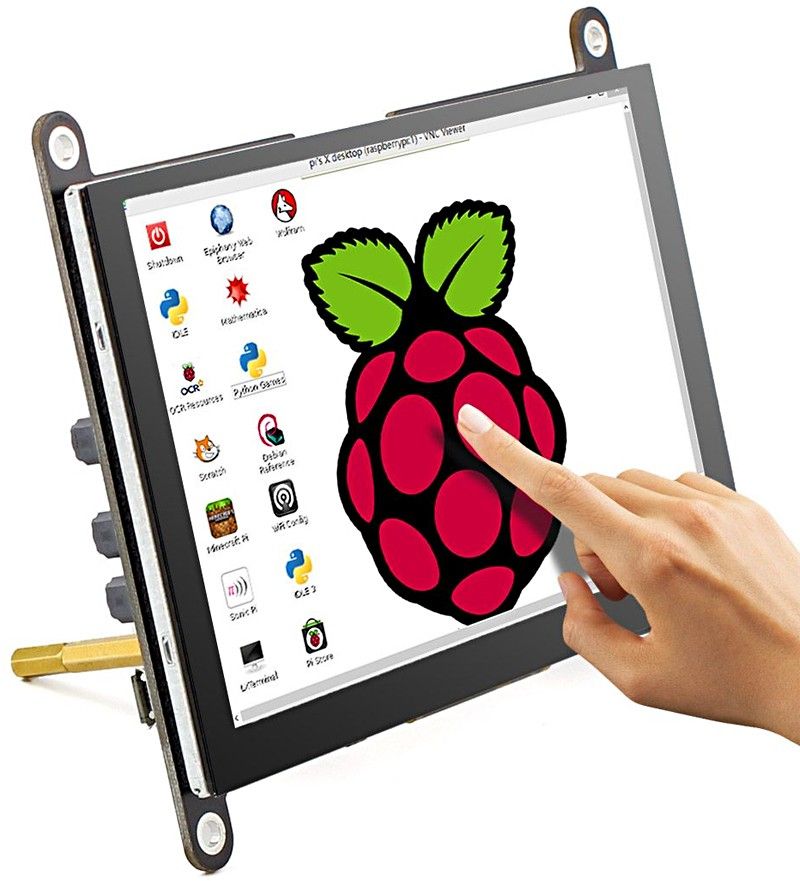

Here we offer you this 5-inch monitor with 800x480 high-resolution. Specifically, this monitor support capacitive USB touchscreen, 5 points touch maximum. Simply power the USB touch port to achieve touch function and no need to install the driver.

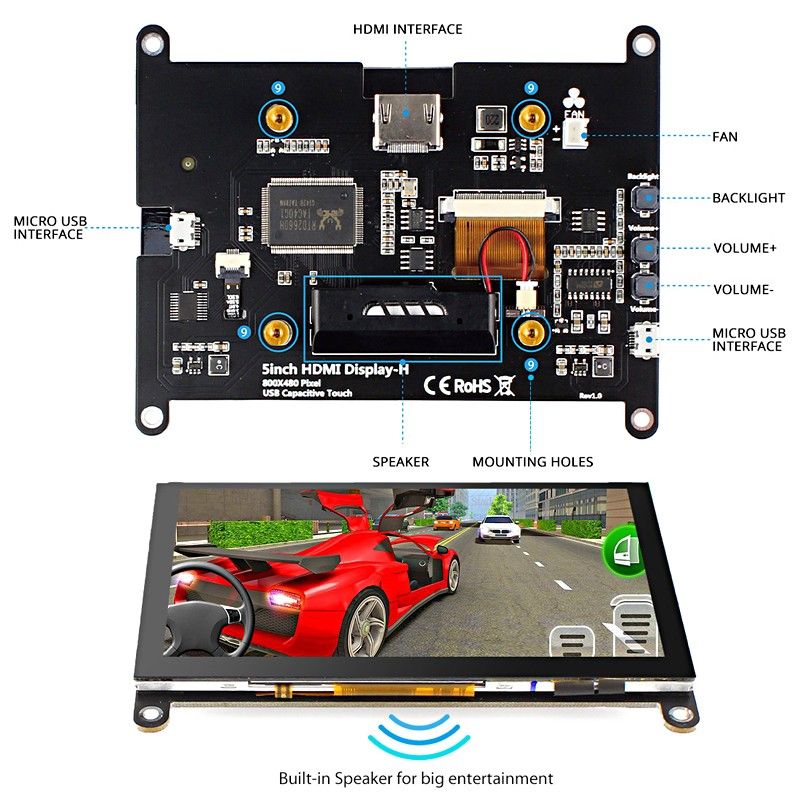

In addition, built-in high-quality loudspeakers with volume adjustment function. Support backlight control, the backlight can be turned off to save power.

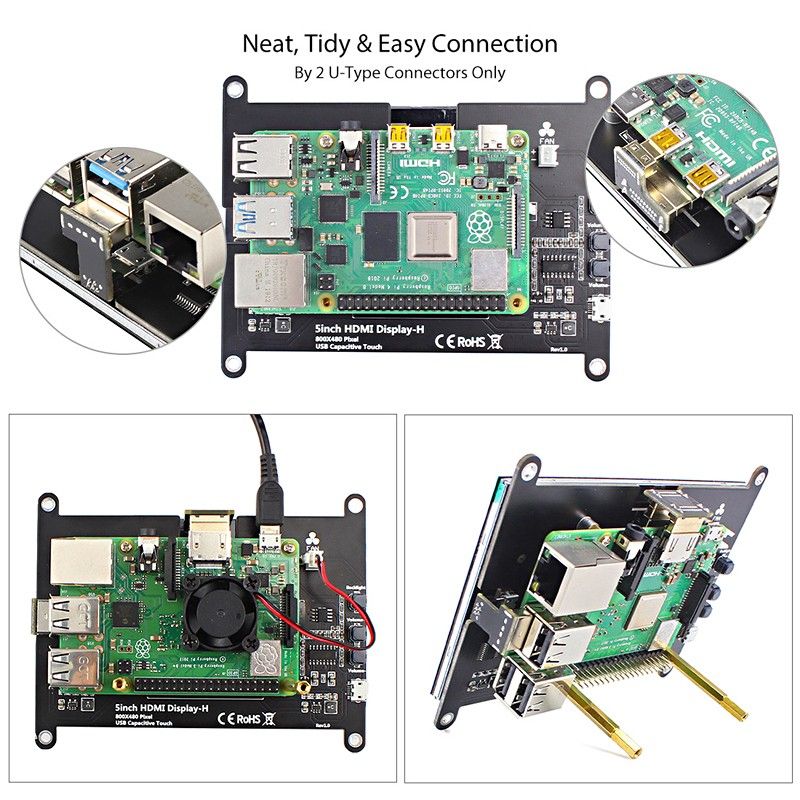

It is designed especially for Raspberry Pi. Raspberry Pi could be mounted on the back of the monitor perfectly. Just plug and play! Simply connect Raspberry Pi with an HDMI connector and a USB connector for touch and power. Also, with 2 bracket sticks, it can easily support the display.
It can also be used as a general-purpose HDMI monitor. When it used as a computer monitor, supports Win10/8/7. When it worked with Raspberry Pi, it supports Raspbian, Ubuntu, WIN10 IoT, single touch. When it use for entertainment, support TV boxes, Microsoft XBOX, SONY PS4, Nintendo Switch and so on, no touch function in this case.
We specially provide a small fan for Raspberry Pi. It can reduce the temperature of the Raspberry Pi effectively when it's running.
Features
- Free-driver, Plug and Play
- 5 point capacitive touch screen
- 5inch standard monitor, 800 x 480 resolution
- With volume adjustment function, backlight control, loudspeakers
- Compatible with mainstream mini PC such as Raspberry Pi, BB Black, Banana Pi
- Supports Raspbian, Ubuntu, Kodi, Win10 IOT, single-touch, supports Win7, Win8, Win10 system
Specs
- Model: RC050S
- Size: 5 Inch
- Resolution: 800x480
- Touch: 5 points Capacitive Touchscreen
- Interface: HDMI & USB
- Speaker: Support
- Panel Dimension: 4.7x3x0.5 inch
- Package size: 5.5x 5.3x2 inch
- Panel Weight: 126g
- Product Weight: 162g
- Package weight: 222g
Package contents
- 1 x 5 inch Monitor
- 2 x HDMI Connector
- 2 x USB Connector
- 4 x Screw
- 1 x Small Fan
- 2 x Long cooper pillars
- 2 x Short cooper pillars
- 1 x User manual
