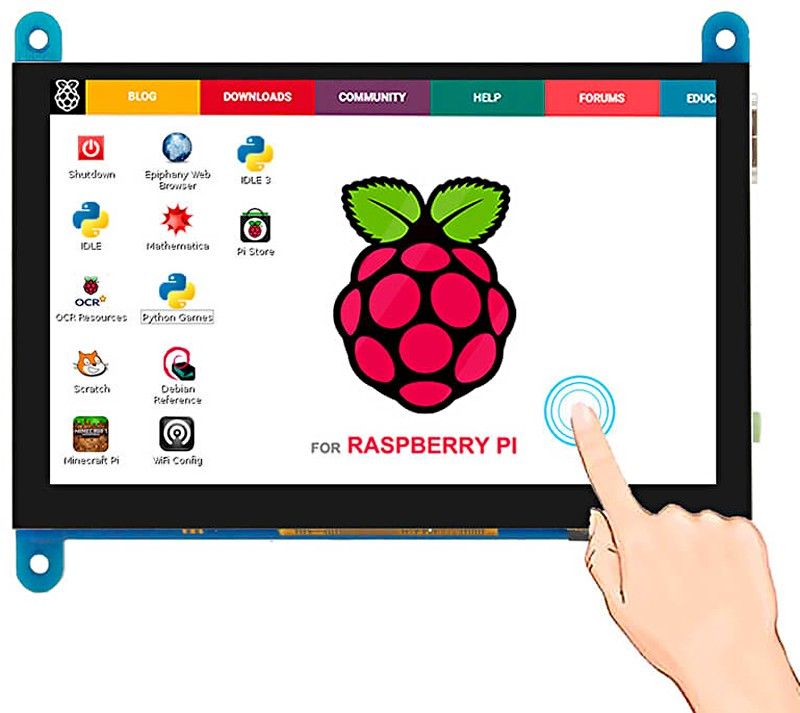

The resolution of the LCD display is 800 x 480, you can configure the resolution via software, the maximum resolution it supports is 1920 x 1080. It is a USB capacitive touch screen and does not require the driver. It supports five touch control, besides that, the LCD screen comes with OSD menu adjustment function. You can adjust the contrast, brightness, switch button.

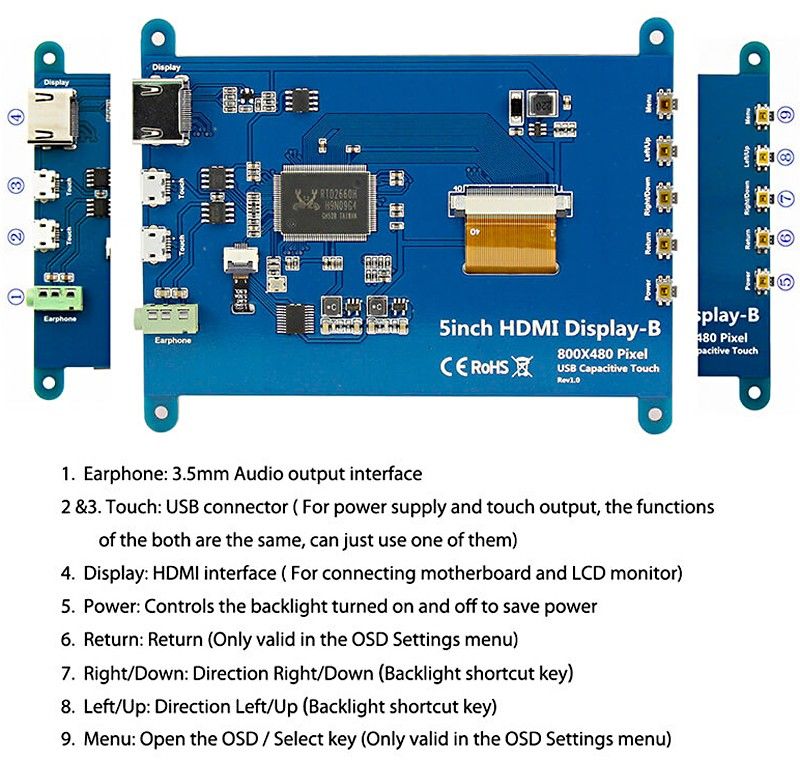

There are 9 interfaces on the back of the screen, one earphone for audio output; two touches (USB connector), for power supply and touch output; one display, an HDMI interface, for connecting motherboard and LCD display. One power, it can control the backlight turn on and turn off to save power. One return, it’s only useful in the OSD menu. One right/down, backlight shortcut key. One left/up, backlight shortcut key. A menu, it’s useful in the OSD setting menu, open the OSD/ select key.
It is compatible with the latest Raspberry Pi 4B, BB Black, Banana Pi and other mini PC. Also can be used for SONY PS4, XBOX360 and Nintendo gamer. When it used as a display for Raspberry Pi, it supports Raspbian, Ubuntu, WIN 10 IOT system, and supports single-touch control. When it used as a display for PC, it supports Windows 7/ 8/ 8.1/ 10, and supports five touch control.
Features
- USB capacitive touch control
- Support HDMI audio output
- CE, ROHS certification
- Free drive.
- Ultra low power consumption backlight
Specifications
- Model: RC050
- Size: 5 inch
- Resolution: 800 x 480
- Touch: 5 points capacitive touch
- Dimension: 121 x 95 x 13 mm

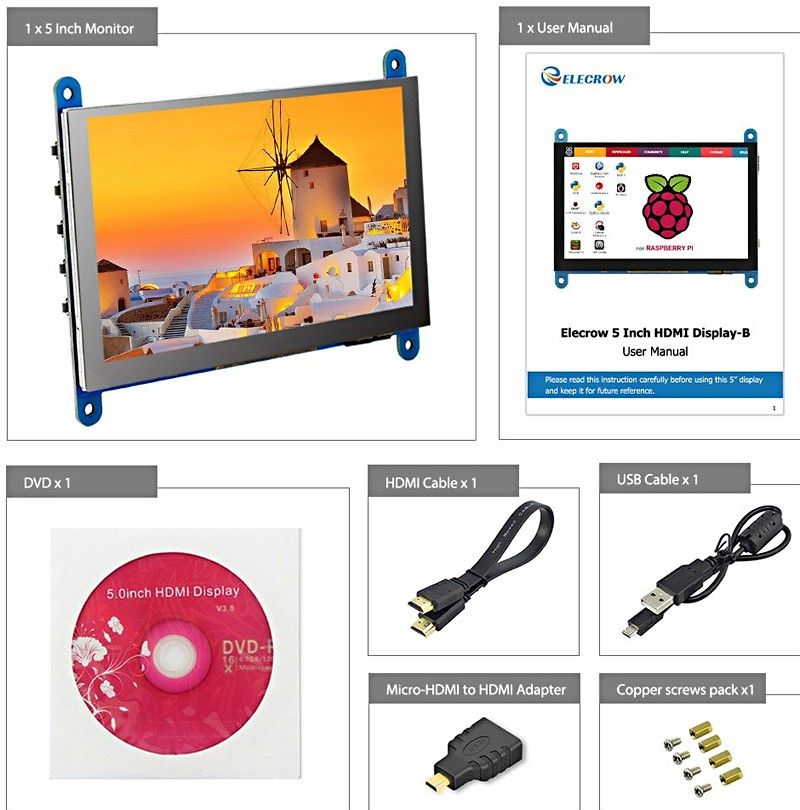

Package contents
- 5 inch HDMI Display x 1
- HDMI cable x 1
- Micro USB cable x 1
- DVD x 1
- Copper screw bag x 1
