This is a 5 inch mini HDMI resistive touch screen with 800*480 resolution for Raspberry Pi, the high resolution will provide a large viewing screen for Raspberry Pi. Compared with another type of 5-inch display for Raspberry Pi, the backlight of this 5-inch display can be controlled by Raspberry Pi GPIO pin 11. Generally, the backlight is on, then input a high level, and it will turn off. The Pin 11 control a MOS tube switch on or off, the MOS tube switch will enable and disable the EN end of the backlight power IC. This design makes it convenient to control the backlight when we put the display into a product and safe power at the same time.

Although this 800x480 HDMI display is designed for Raspberry Pi, you can also use it with any computer that has HDMI output.

Features

• Control backlight automatically by Raspberry Pi GPIO 11.
• Lower power consumption.
• Large viewing angle, fast response time, full-color display.
• Supports any revision of Raspberry Pi and works perfectly for Raspberry Pi B+/2B Raspberry Pi 3B/ 3B+/4B.

Specifications

• Resolution: 800 x 480
• Touch: resistive touch
• USB cable for 5V/ 1A power
• Lcd driver IC: ILI9486L
• Refresh rate：60HZ

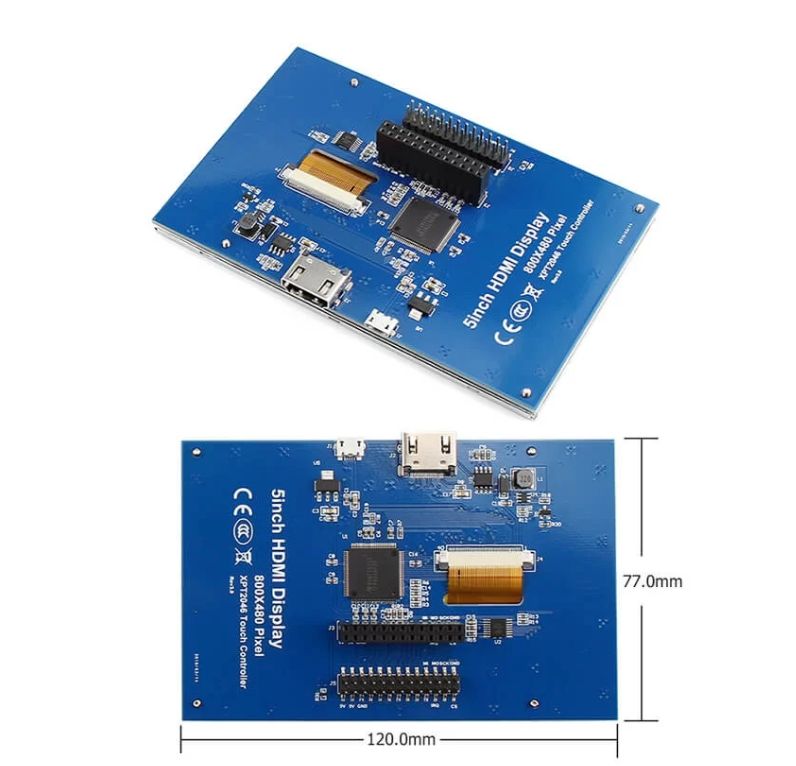

• Appearance Size : 121mm*78mm
• Screen Size : 114mm*66.5mm

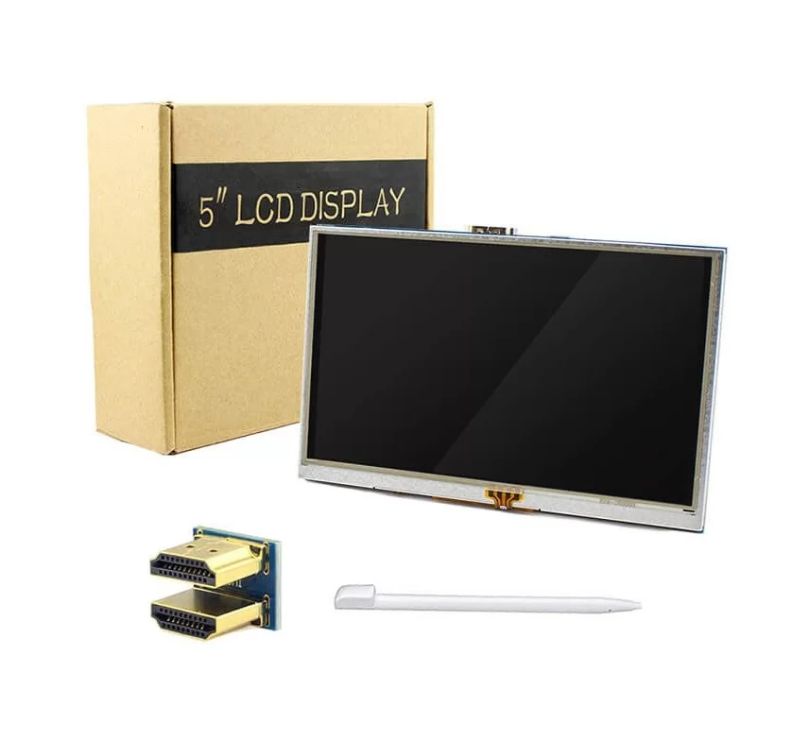

Package contents

• 5-inch HDMI Touch Screen x 1
• HDMI Connector x 1
• Touch pen x 1

Links

• Elecrow Wiki link (User manual)
• How to install the Image with LCD driver
• How to install the LCD driver
