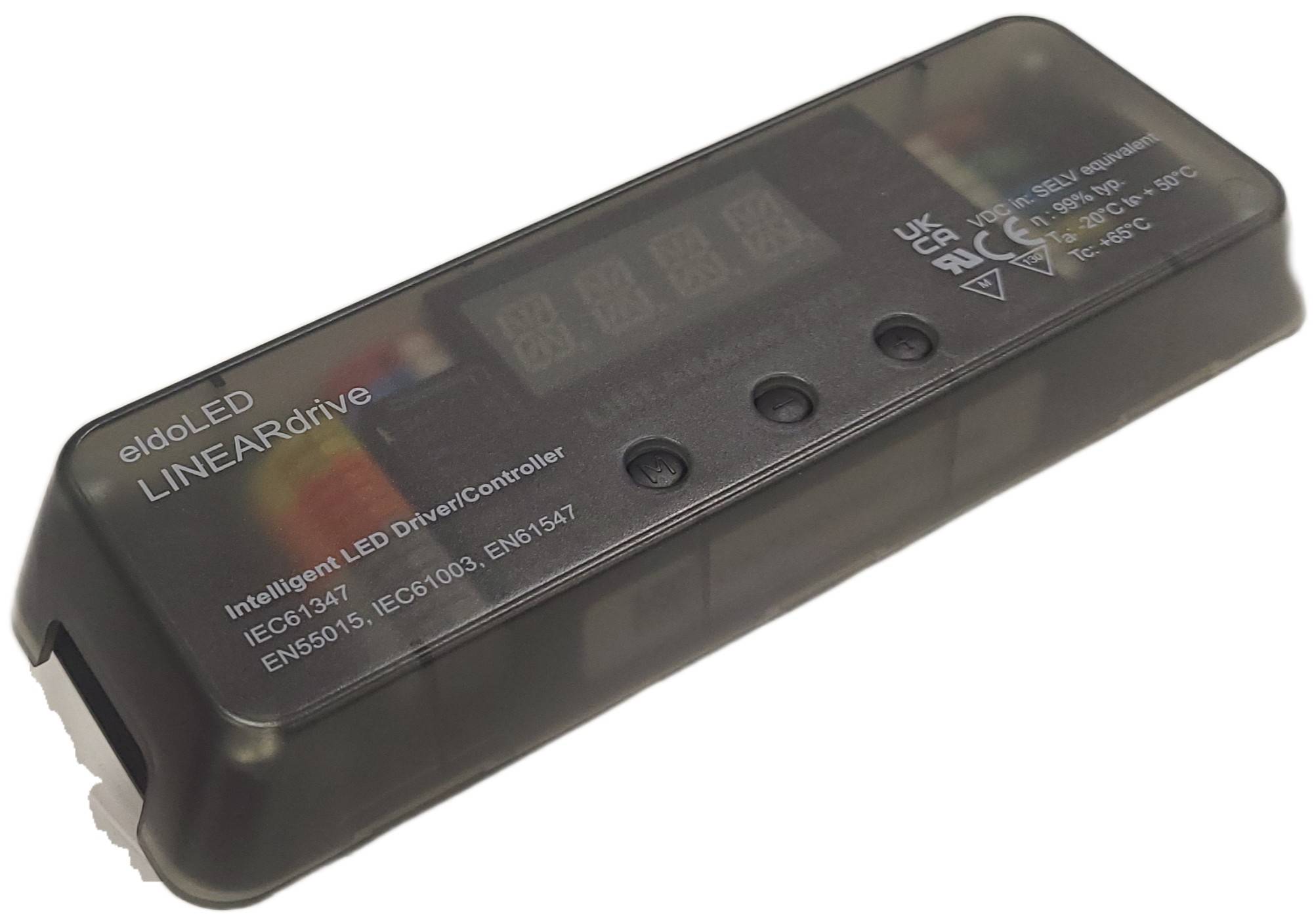

eldoLED LIN720D3 – 720W LED controller, 4-channel, DMX/DALI

eldoLED LIN720D3 (LINEARdrive 720D) is a high-power constant-voltage LED controller for demanding lighting applications. Suitable for RGB, RGBW and single-color LED solutions for both standalone and networked use.

Key features

• Maximum power: 720 W
• 4 independently controllable output channels
• Control protocols: DMX, RDM, DALI
• Constant voltage controller
• Dimming range: 0.1 – 100 %
• HydraDrive technology (smooth and flicker-free dimming)
• Configuration via integrated user interface (display + buttons)

Technical specifications

• Input voltage: 12 – 48 V DC
• Output voltage: 5 – 48 V DC
• Maximum current: 24 A
• Number of output channels: 4 (UL Class 2)
• Current per channel: max. 6 A (depending on operating voltage)
• Operating temperature: -20…+50 °C

Mechanical data

• Dimensions: approx. 153 × 50 × 23 mm
• Weight: approx. 144 g
• Enclosure: sealed, screw mounting

Applications

• LED strips (RGB, RGBW, single-color)
• Architectural and accent lighting
• Dynamic lighting and effects
• DMX- and DALI-controlled lighting systems

Approvals

• CE
• RoHS
• UL / ENEC
