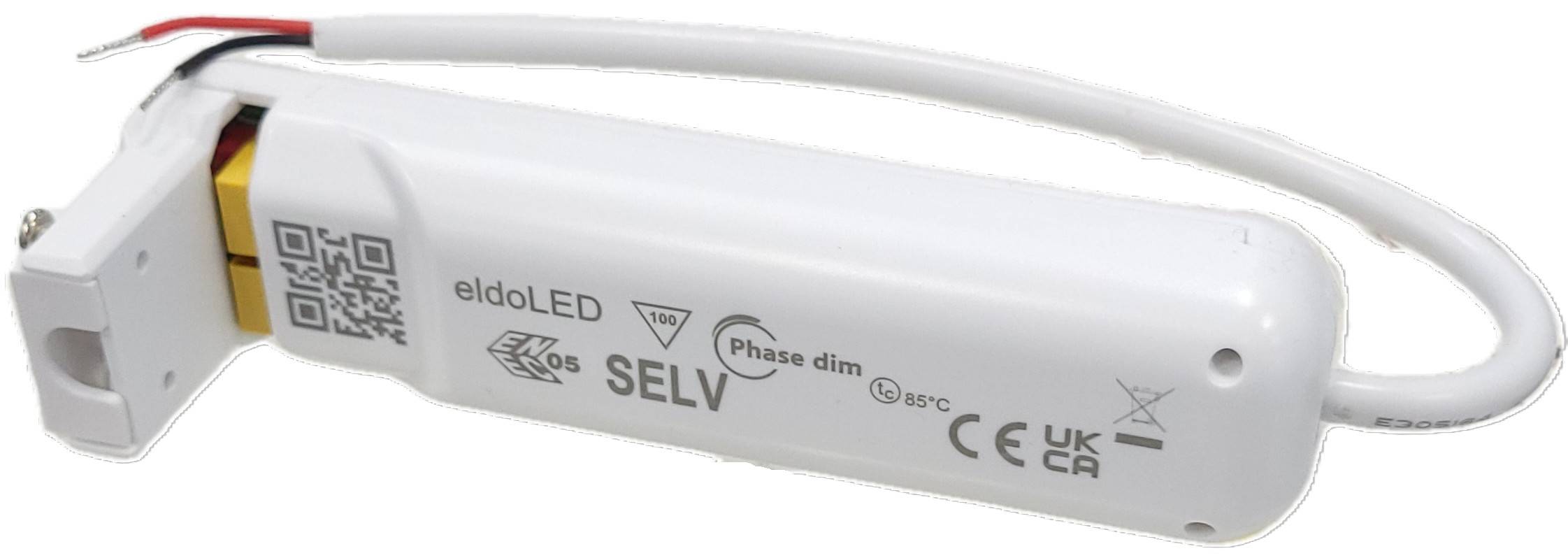

eldoLED ECOdrive EC12NAE1ZLP – 12W LED driver, phase dimming

Very compact eldoLED ECOdrive EC12NAE1ZLP is a constant current LED driver designed for small luminaires and retrofit applications. It provides reliable, flicker-free dimming with traditional phase dimmers (Triac), making it an excellent choice for downlight and spot applications.

Key features

• Constant current LED driver (constant current)
• Phase dimming (leading / trailing edge, Triac)
• Very small size – fits in tight luminaires
• Adjustable output current with DIP switches
• Smooth, flicker-free dimming down to ~1%
• Suitable for COB LED solutions
• SELV-isolated output

Technical specifications

• Power: max. 12 W
• Input voltage: 220–240 VAC
• Output current: 350 / 500 / 550 / 700 mA (selectable)
• Output voltage: 10–20 VDC
• Dimming: phase dimming (Triac)
• Output: 1 channel
• Operating temperature: up to +45 °C

Applications

• Downlight luminaires
• Accent and spot lighting
• Design and pendant luminaires
• Retrofit installations using a phase dimmer

Practical benefits

• Easy to integrate into small luminaires thanks to compact design
• Compatible with traditional dimmers
• Reliable and stable light control without flicker
