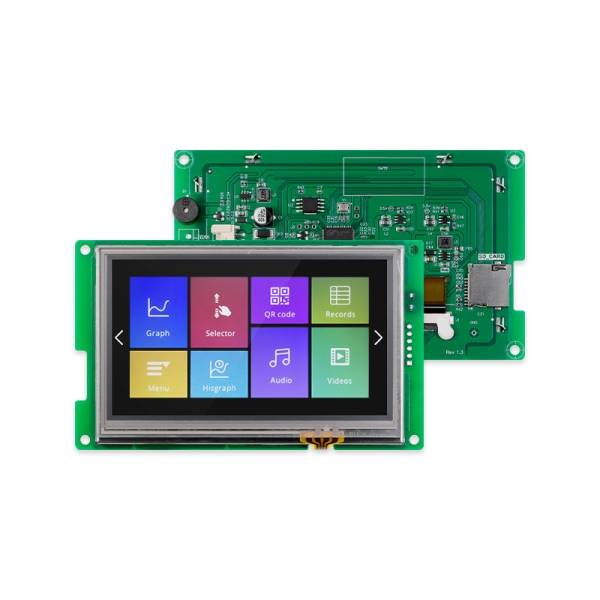

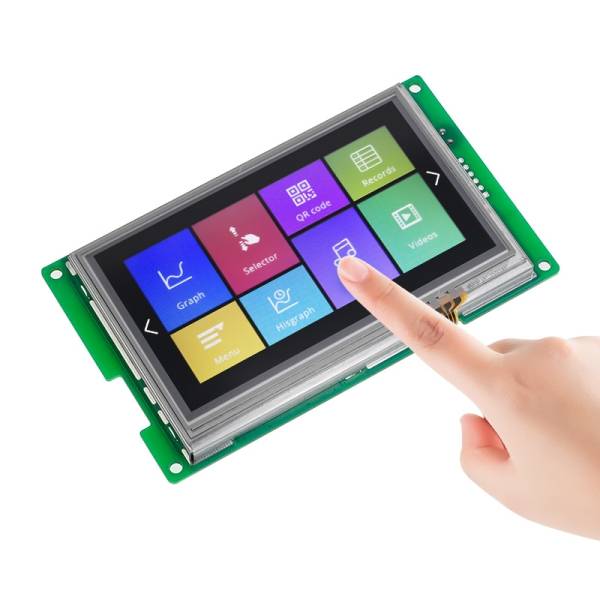

Wizee 4.3" HMI touchscreen with TTL serial interface (DIS43125P)
The Wizee DIS43125P is an industrial-grade 4.3-inch HMI touchscreen that combines a 480 × 272 pixel TFT display, a resistive touch panel and TTL serial communication. The display includes a powerful 400 MHz SoC processor, allowing the user interface to start immediately after power-up and to run logic directly on the screen.
Features
- 4.3" TFT LCD display, resolution 480 × 272 pixels
- Resistive touchscreen with single-point touch and swipe functions
- 400 MHz SoC processor for a fast user interface
- TTL serial communication up to 921600 bps data rate
- LUA script support for executing logic and algorithms on the display
- Visual WYSIWYG programming with VisualTFT software
- Support for JPEG and PNG images
- Can be mounted at 0°, 90°, 180° or 270° rotation
- Low power consumption
- Industrial- and medical-grade reliability testing
Applications
- Industrial HMI interfaces
- Automation systems
- IoT devices
- Home automation
- Measurement and monitoring equipment
- Embedded systems and microcontroller projects
Technical specifications
| Display size |
4,3" |
| Resolution |
480 × 272 |
| Processor |
400 MHz SoC |
| Memory |
32 MB DDR SDRAM |
| Flash memory |
8 MB |
| Communication |
TTL serial |
| Baud rate |
1200 - 921600 bps |
| Operating voltage |
5 - 18 VDC |
| Brightness |
350 cd/m² |
| Contrast |
500:1 |
| Touch type |
Resistive |
| Operating temperature |
-20 ... +70 °C |
| Dimensions |
122,3 × 73,5 × 14,6 mm |
| Weight |
210 g |

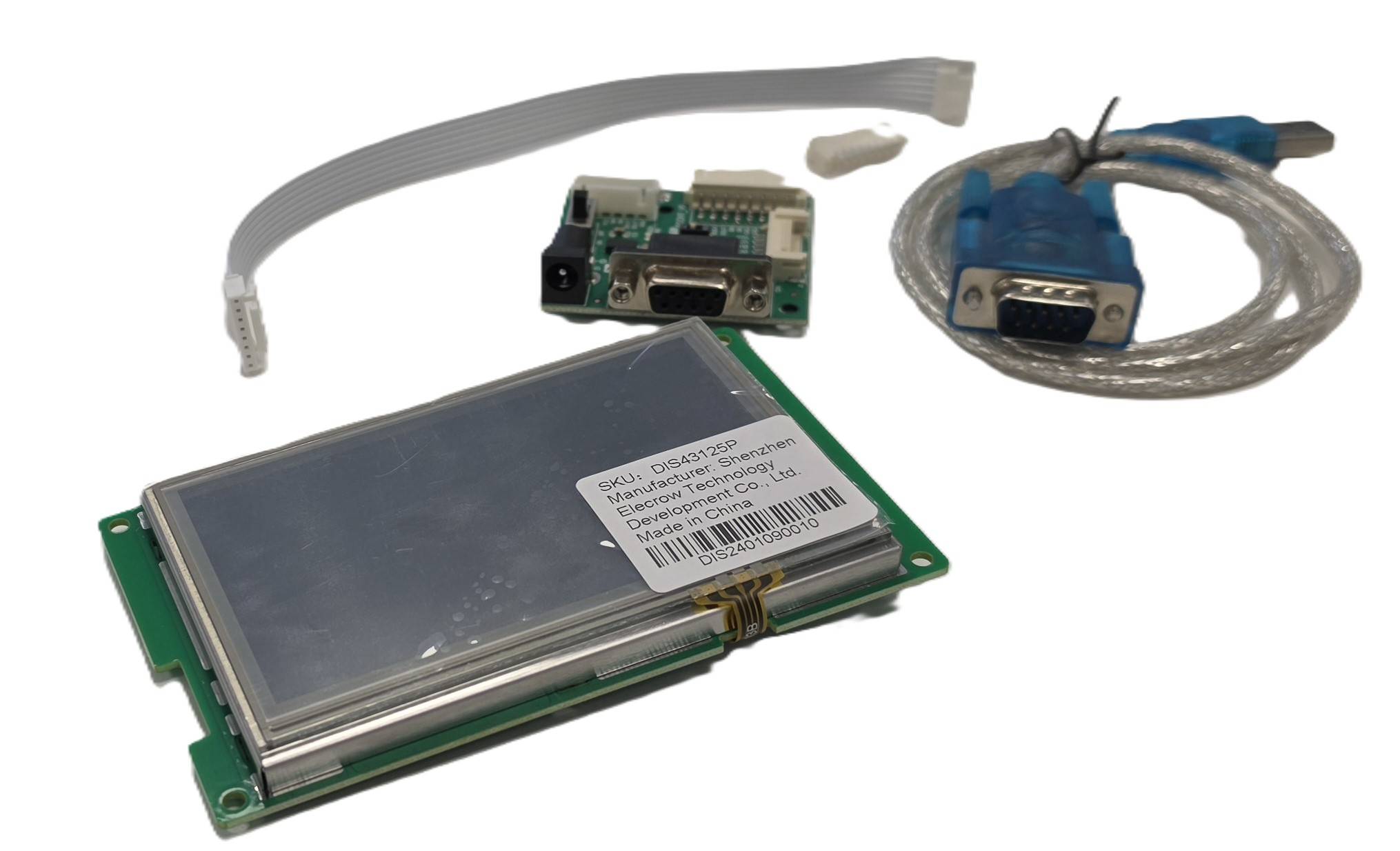

Package contents
- 1 × 4.3" HMI touchscreen
- 1 × 8-pin cable
- 1 × HY2.0-8P connector
- 1 × 0.8 m USB-RS232 cable
- 1 × debug board
Why choose the Wizee DIS43125P?
The DIS43125P is an easy solution for implementing user interfaces without heavy software development. Visual programming, LUA script support and a fast serial interface make it an excellent choice for Arduino, ESP32, STM32 and industrial automation projects that require a reliable, quickly deployable touchscreen.
