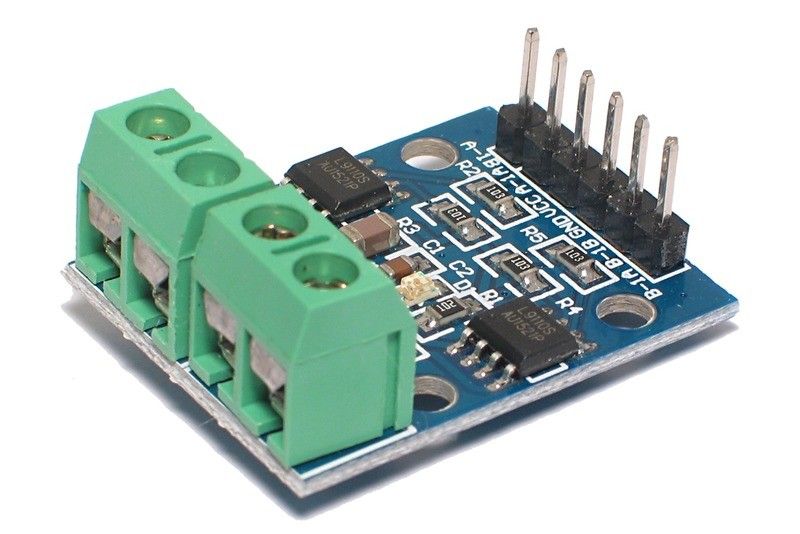

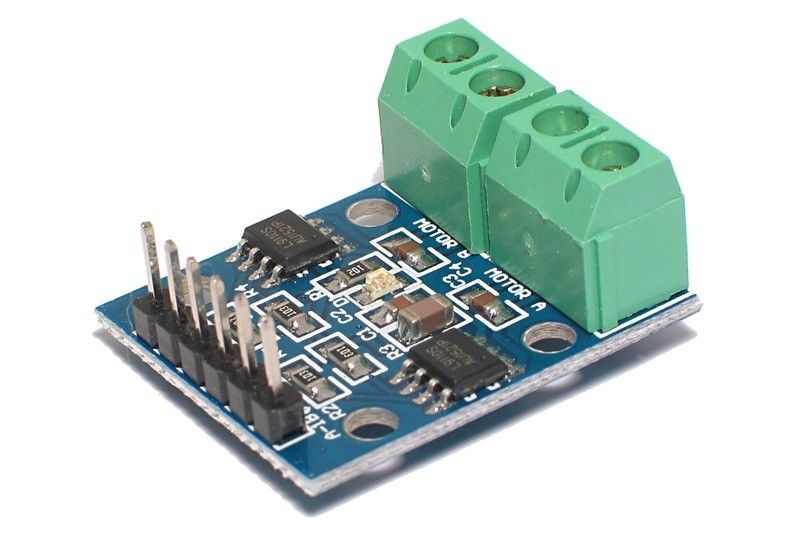

DUAL H-BRIDGE MOTOR DRIVER BOARD (L9110S)
In stock under 5 pcs
SKU#: 4TX-L9110S
DUAL H-BRIDGE MOTOR DRIVER BOARD (L9110S)
In stock under 5 pcs
SKU#: 4TX-L9110S
- operation is based on two L9110S ICs
- the ICs have necessary EMF protection diodes built-in
- Supply voltage: 2,5-12VDC
- two independent channels
- current delivery capability: 800mA per channel
- indicator LED
- control side 6-pin pin header
- motor 1 inputs: A1-A and A1-B
- motor 2 inputs: B1-A and B1-B
- motor connections via screw terminals
Link suggestion:
6,99 €
In stock
Product Description
Product Information
- Availability In stock
- Product path Home Do It YourselfRoboticsRobot Electronics DUAL H-BRIDGE MOTOR DRIVER BOARD (L9110S)
- SKU 4TX-L9110S
- Attributes
- Dimensions 29 x 23 x 14 mm
