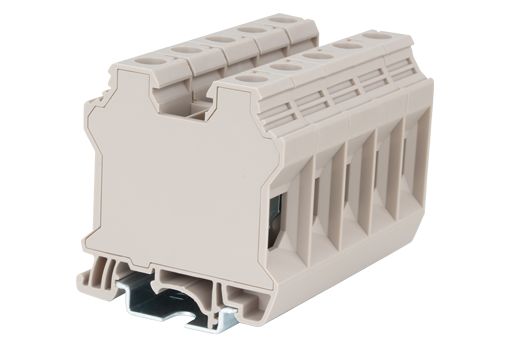

Dinkle DK35N - Din-Rail 1-Level Feed-through Terminal Block

4,15 €

In stock

Add a comment about the product

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

DK35N

Single Level Feed-through Terminal Block

nom. voltage：1000V
nominal current：125A
connection method：screw connection
number of connections：2
cross section： 1.5 mm² - 35 mm²
AWG：12 - 1/0

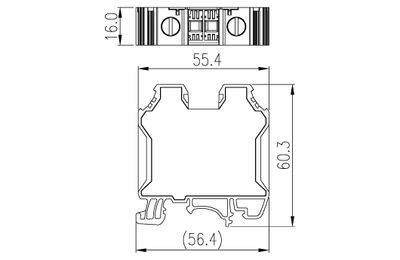

width：16 mm
height：59.5 mm
color： beige
mounting type：TS-35

Link:

Manufacturer product page

Product Information

Availability In stock
Manufacturer DINKLE
Product path Home Connectors Industrial Fittings DIN rail terminals Dinkle DK35N, SLFTB C2, 1kV 125A, screw, 1.5-35mm2, BG
SKU DK35NBLK
Attributes
- Color beige
- Manufacturer's model DK35N
- Click for more details https://www.dinkle.com/en/terminal/DK35N
