Dinkle DK35H, SLFTB C2, 1kV 150A, screw, 2.5-50mm2, BG

In stock 50 pcs

SKU#: DK35HBLK

Dinkle DK35H, SLFTB C2, 1kV 150A, screw, 2.5-50mm2, BG

Dinkle DK35H, SLFTB C2, 1kV 150A, screw, 2.5-50mm2, BG

Dinkle DK35H, SLFTB C2, 1kV 150A, screw, 2.5-50mm2, BG

In stock 50 pcs

SKU#: DK35HBLK

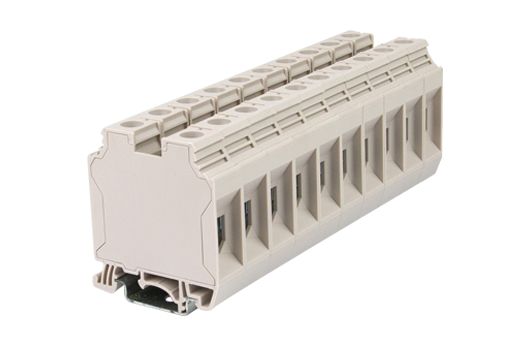

Dinkle DK35H - Din-Rail 1-Level Feed-through Terminal Block

4,84 €

In stock

Add a comment about the product

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

DK35H

Single Level Feed-through Terminal Block

nom. voltage: 1000V
nominal current: 150A
connection method: screw connection
number of connections: 2
cross section: 2.5 mm² - 50 mm²
AWG: 12 - 1/0
width: 16 mm
height: 60.3 mm
color: beige
mounting type: TS-35

Link:

Manufacturer product page

Product Information

Availability In stock
Manufacturer DINKLE
Product path Home Connectors Industrial Fittings DIN rail terminals Dinkle DK35H, SLFTB C2, 1kV 150A, screw, 2.5-50mm2, BG
SKU DK35HBLK
Attributes
- Color beige
- Manufacturer's model DK35H
- Click for more details https://www.dinkle.com/en/terminal/DK35H
