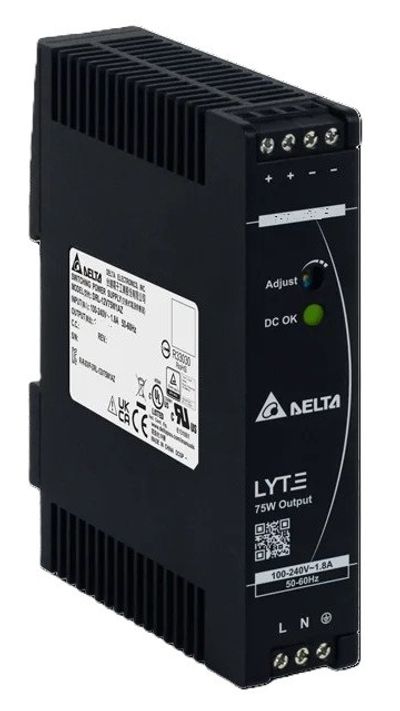

Delta DRL-24V75W1AZ DIN-rail power supply with adjustable 24VDC 3.125A output.

Technical specifications

• Input voltage range: 85–264 VAC (rated voltage 100–240 VAC)
• Input frequency: 50–60 Hz (range 47–63 Hz)
• Input current: 1.4 A typ. @ 115 VAC 0.9 A typ. @ 230 VAC
• Efficiency: 89 % typ. @ 100 % load, 230 VAC
• No-load power consumption: < 0.3 W @ 230 VAC
• Inrush current (cold start): 50 A typ. @ 230 VAC
• Rated output voltage: 24 VDC
• Factory setting and tolerance: 24 VDC ±2 %
• Output voltage adjustment range: 21.6–26 VDC
• Output current: 3.125 A
• Maximum output power: 75 W
• Line regulation: ±0.5 %
• Load regulation: ±1 %
• Enclosure material: Plastic
• Connector type: Screw terminal
• Operating temperature range -10°C - +50°C
