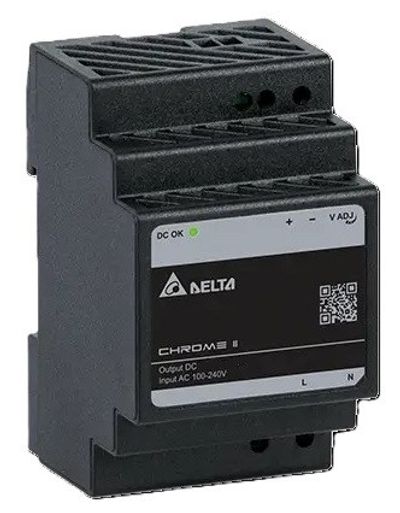

Delta CHROME II series DRC-12V060W1RZ - Class II DIN-rail switching power supply with plastic housing.

Technical specifications

• Input voltage range: 85–264 VAC (nominal voltage 100–240 VAC)
• Input frequency: 50–60 Hz (range 47–63 Hz)
• Input current: 1.2 A typ. @ 115 VAC 0.8 A typ. @ 230 VAC
• Efficiency: 87 % typ. @ 100 % load, 230 VAC
• No-load power consumption: < 0.15 W @ 230 VAC
• Inrush current (cold start): 40 A typ. @ 230 VAC
• Leakage current: < 0.25 mA @ 240 VAC
• Rated output voltage: 12 VDC
• Factory setting and tolerance: 12 VDC ±1 %
• Output voltage adjustment range: 10.8–13.2 VDC
• Output current: 4.5 A
• Maximum output power: 54 W
• Line regulation: ±0.5 %
• Load regulation: ±1 %
• Enclosure material: Plastic
• Connector type: Screw terminal
• Operating temperature range: -30°C to +70°C
